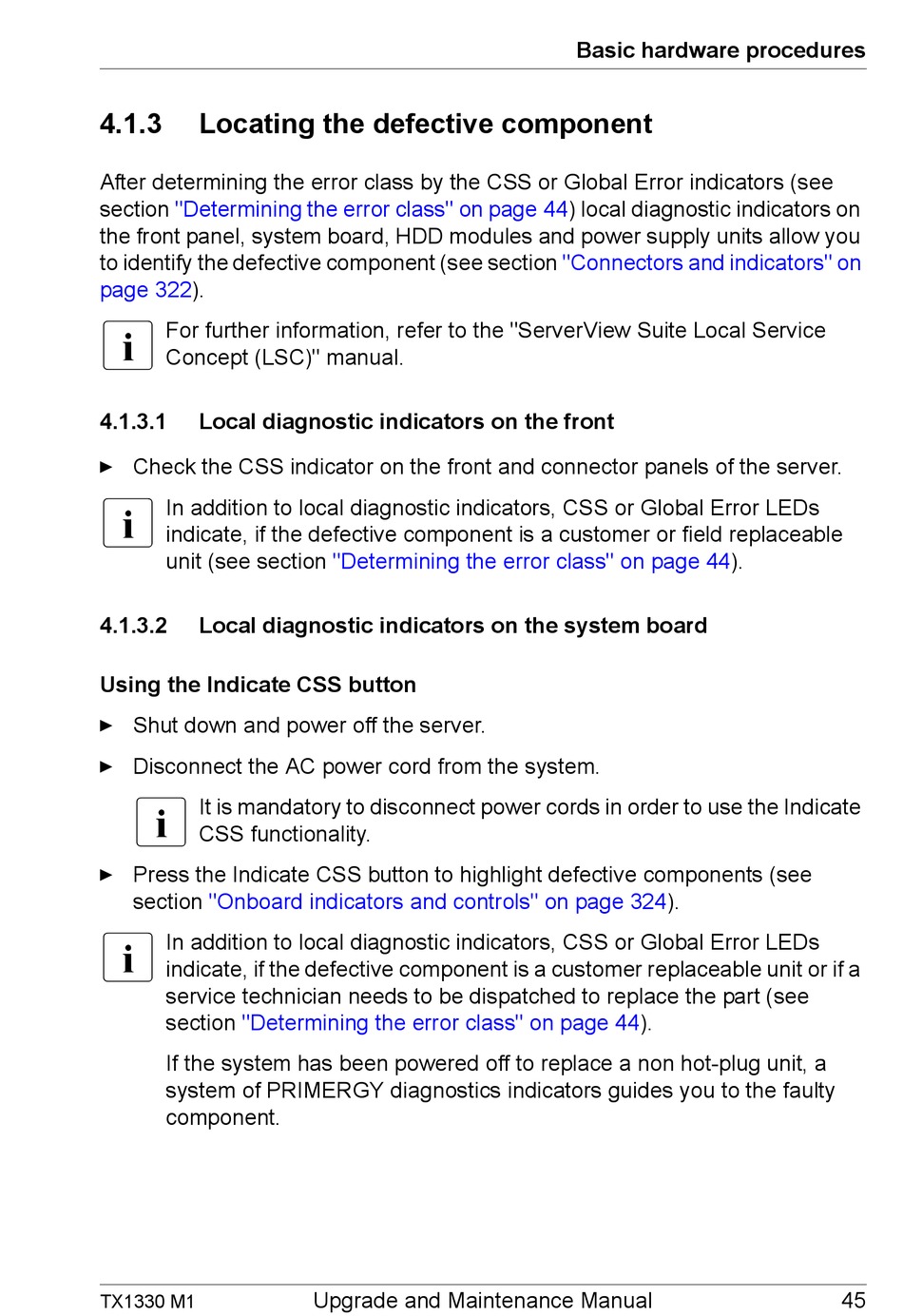

Locating the defective component

After determining the error class by the CSS or Global Error indicators (see
section "Determining the error class" on page
the front panel, system board, HDD modules and power supply units allow you
to identify the defective component (see section
page 322).
I
For further information, refer to the "ServerView Suite Local Service
Concept (LSC)" manual.
4.1.3.1

Local diagnostic indicators on the front

Ê Check the CSS indicator on the front and connector panels of the server.
I
In addition to local diagnostic indicators, CSS or Global Error LEDs
indicate, if the defective component is a customer or field replaceable
unit (see section
4.1.3.2

Local diagnostic indicators on the system board

Using the Indicate CSS button
Ê Shut down and power off the server.
Ê Disconnect the AC power cord from the system.
I
It is mandatory to disconnect power cords in order to use the Indicate
CSS functionality.
Ê Press the Indicate CSS button to highlight defective components (see
section "Onboard indicators and controls" on page
I
In addition to local diagnostic indicators, CSS or Global Error LEDs
indicate, if the defective component is a customer replaceable unit or if a
service technician needs to be dispatched to replace the part (see
section "Determining the error class" on page
If the system has been powered off to replace a non hot-plug unit, a
system of PRIMERGY diagnostics indicators guides you to the faulty
component.
