Hard disk drives / solid state drives
7.3.6.4

Connecting the 3.5-inch HDD SAS backplane

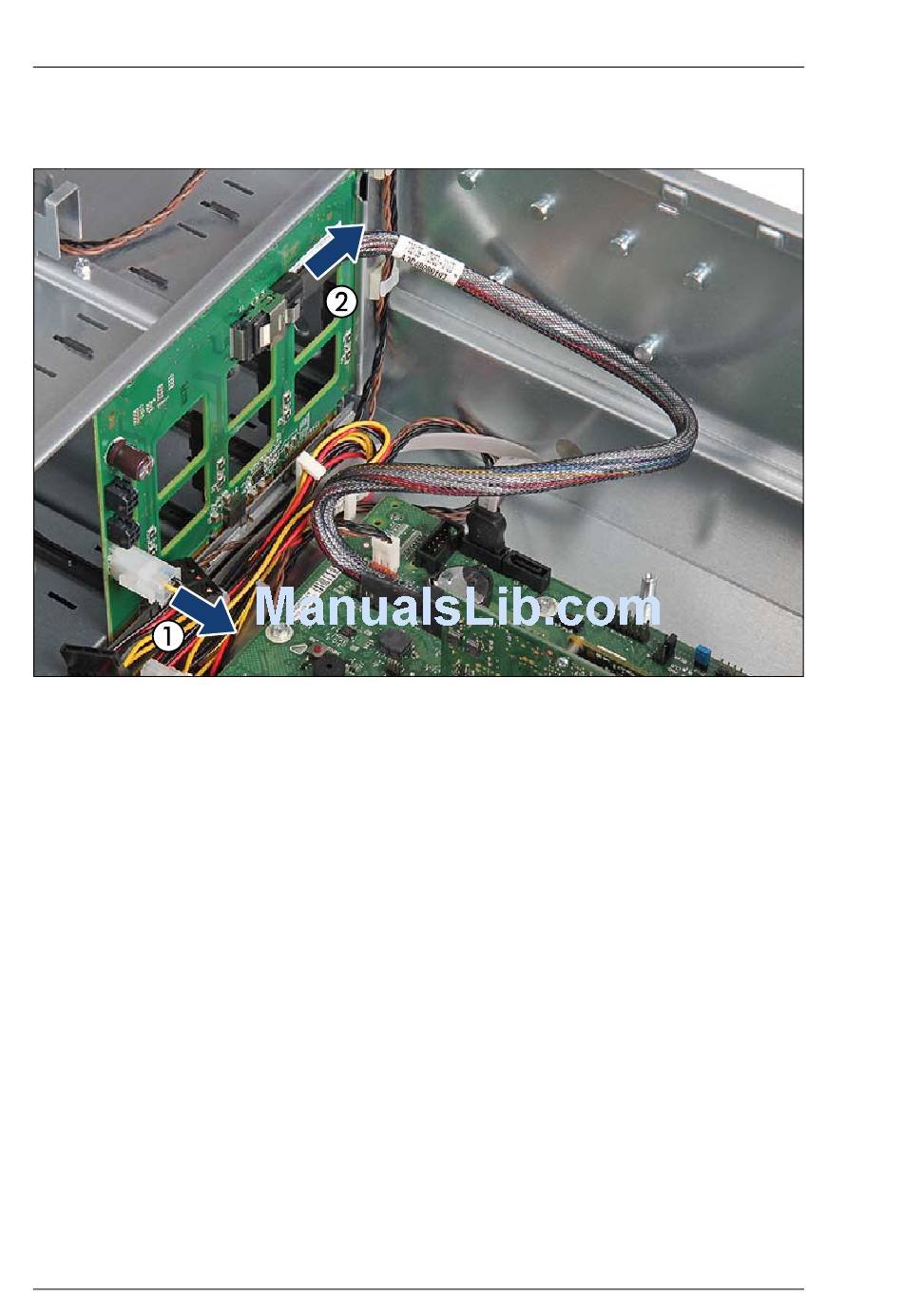

Figure 67: Connecting cables
Ê Connect the cables to the SAS backplane:
– (1) power cable to connector "x7"
– (2) SAS/SATA data cable to connector "x1"
7.3.6.5

Concluding steps

Ê Reinstall all HDD modules to their original drive bays as described in section
"Installing 3.5-inch HDD modules" on page
"Reassembling" on page 58
Ê
"Connecting the server to the mains" on page 67
Ê
"Switching on the server" on page 68
Ê
"Enabling BitLocker functionality" on page 90
Ê
