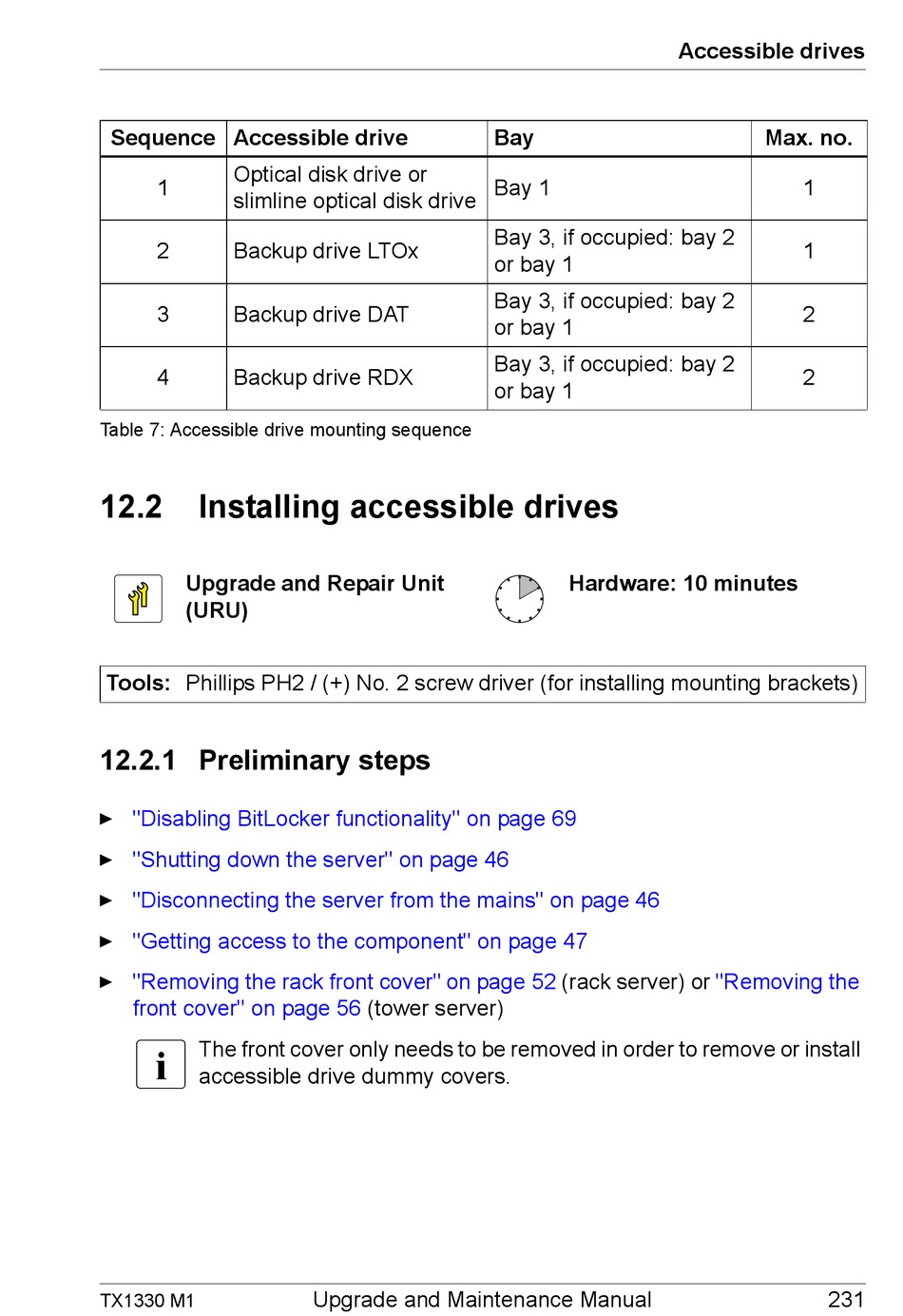

Installing Accessible Drives; Preliminary Steps - Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual

Sequence Accessible drive
Optical disk drive or
1
slimline optical disk drive
2 Backup drive LTOx
3 Backup drive DAT
4 Backup drive RDX
Table 7: Accessible drive mounting sequence
12.2

Installing accessible drives

Upgrade and Repair Unit
(URU)
Tools: Phillips PH2 / (+) No. 2 screw driver (for installing mounting brackets)

12.2.1 Preliminary steps

"Disabling BitLocker functionality" on page 69
Ê
"Shutting down the server" on page 46
Ê
"Disconnecting the server from the mains" on page 46
Ê
"Getting access to the component" on page 47
Ê
"Removing the rack front cover" on page 52
Ê
front cover" on page 56
I
The front cover only needs to be removed in order to remove or install
accessible drive dummy covers.
TX1330 M1
(tower server)
Upgrade and Maintenance Manual
Bay
Bay 1
Bay 3, if occupied: bay 2
or bay 1
Bay 3, if occupied: bay 2
or bay 1
Bay 3, if occupied: bay 2
or bay 1
Hardware: 10 minutes
(rack server) or
Accessible drives
Max. no.
1
1
2
2
"Removing the
231
