Removing accessible drive covers

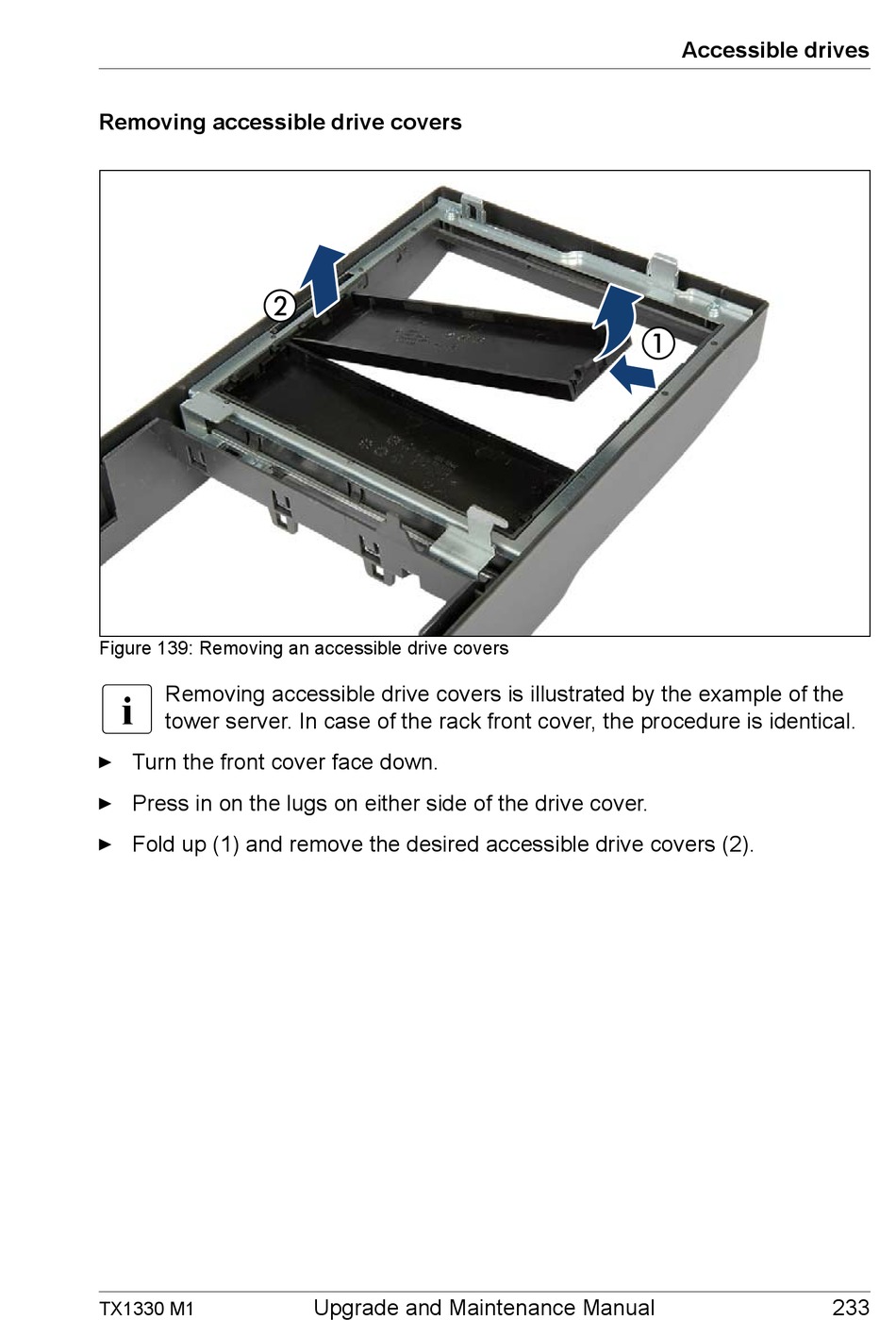

Figure 139: Removing an accessible drive covers
I
Removing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê Turn the front cover face down.
Ê Press in on the lugs on either side of the drive cover.
Ê Fold up (1) and remove the desired accessible drive covers (2).
TX1330 M1
Upgrade and Maintenance Manual
Accessible drives
233
