Preliminary Steps; Removing A 3.5-Inch Hdd Dummy Module - Fujitsu Server PRIMERGY TX1330 M1 Upgrade And Maintenance Manual

Hard disk drives / solid state drives
Tools: tool-less
7.3.3.1

Preliminary steps

Ê If applicable, "Removing the HDD bay cover" on page 55
Ê Locate the correct drive bay as described in section
configurations" on page
7.3.3.2

Removing a 3.5-inch HDD dummy module

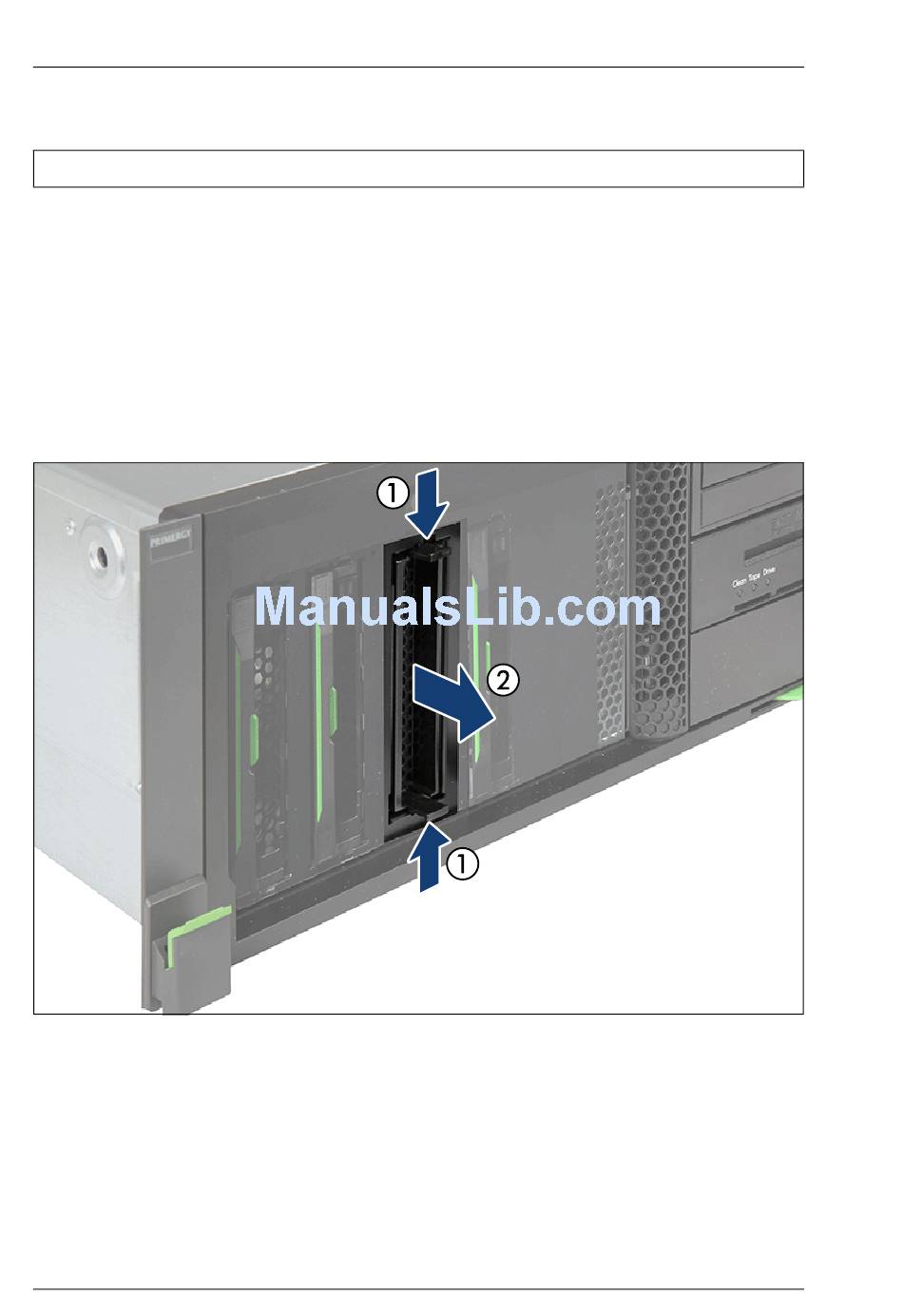

Figure 53: Removing a 3.5-inch dummy module
Ê Press in on the locking tabs on both sides of the dummy module to
disengage the locking mechanism (1).
Ê While keeping the locking tabs pressed, pull the dummy module out of its
bay (2).
134
133.
Upgrade and Maintenance Manual
"3.5-inch HDD
TX1330 M1
