9.5.4.3

Removing the FBU holder from the chassis

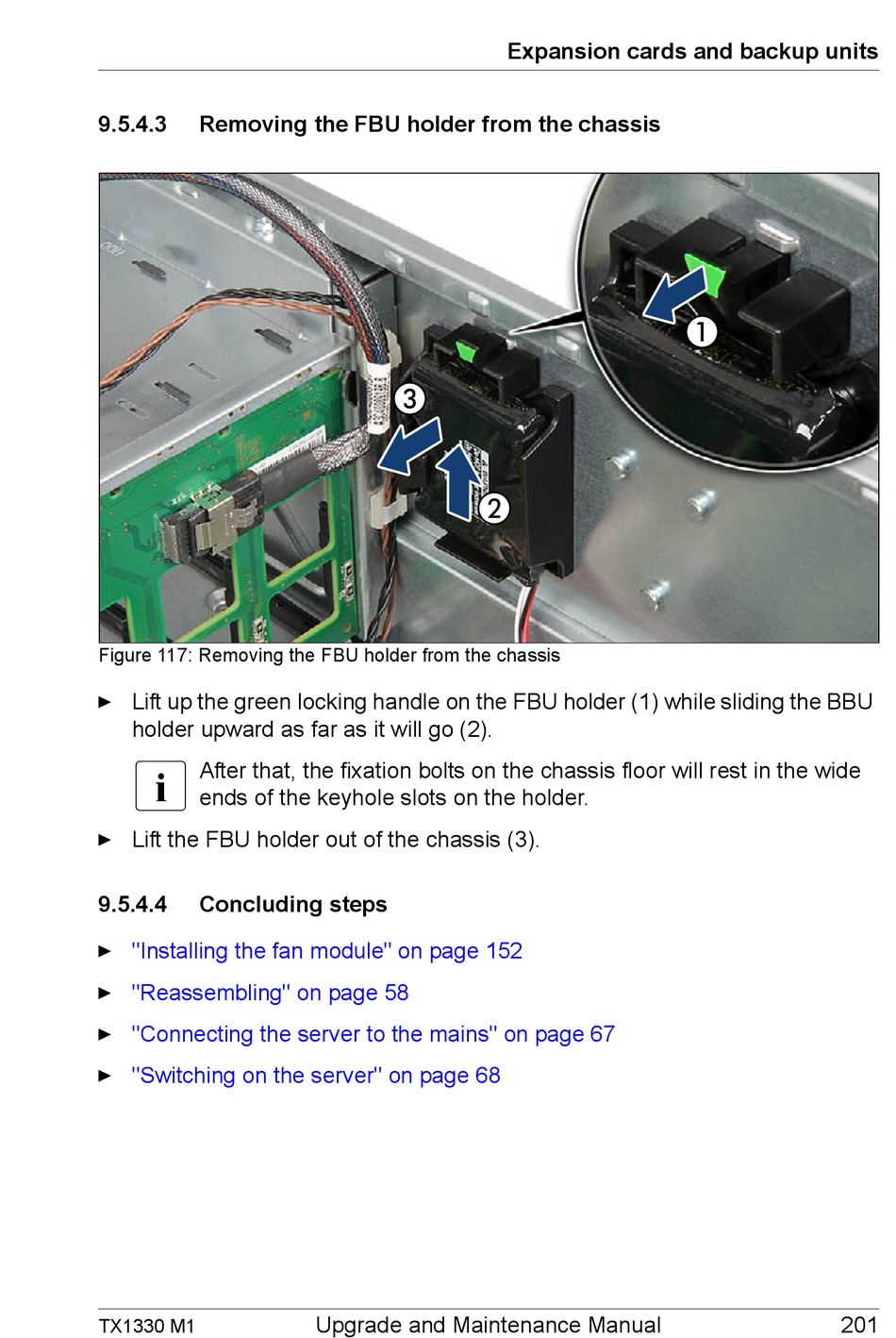

Figure 117: Removing the FBU holder from the chassis
Ê Lift up the green locking handle on the FBU holder (1) while sliding the BBU
holder upward as far as it will go (2).
I
After that, the fixation bolts on the chassis floor will rest in the wide
ends of the keyhole slots on the holder.
Ê Lift the FBU holder out of the chassis (3).
9.5.4.4

Concluding steps

"Installing the fan module" on page 152
Ê
"Reassembling" on page 58
Ê
"Connecting the server to the mains" on page 67
Ê
"Switching on the server" on page 68
Ê
TX1330 M1
Upgrade and Maintenance Manual
Expansion cards and backup units
201
