Power supply
6.2.1.3

Installing the new standard power supply unit

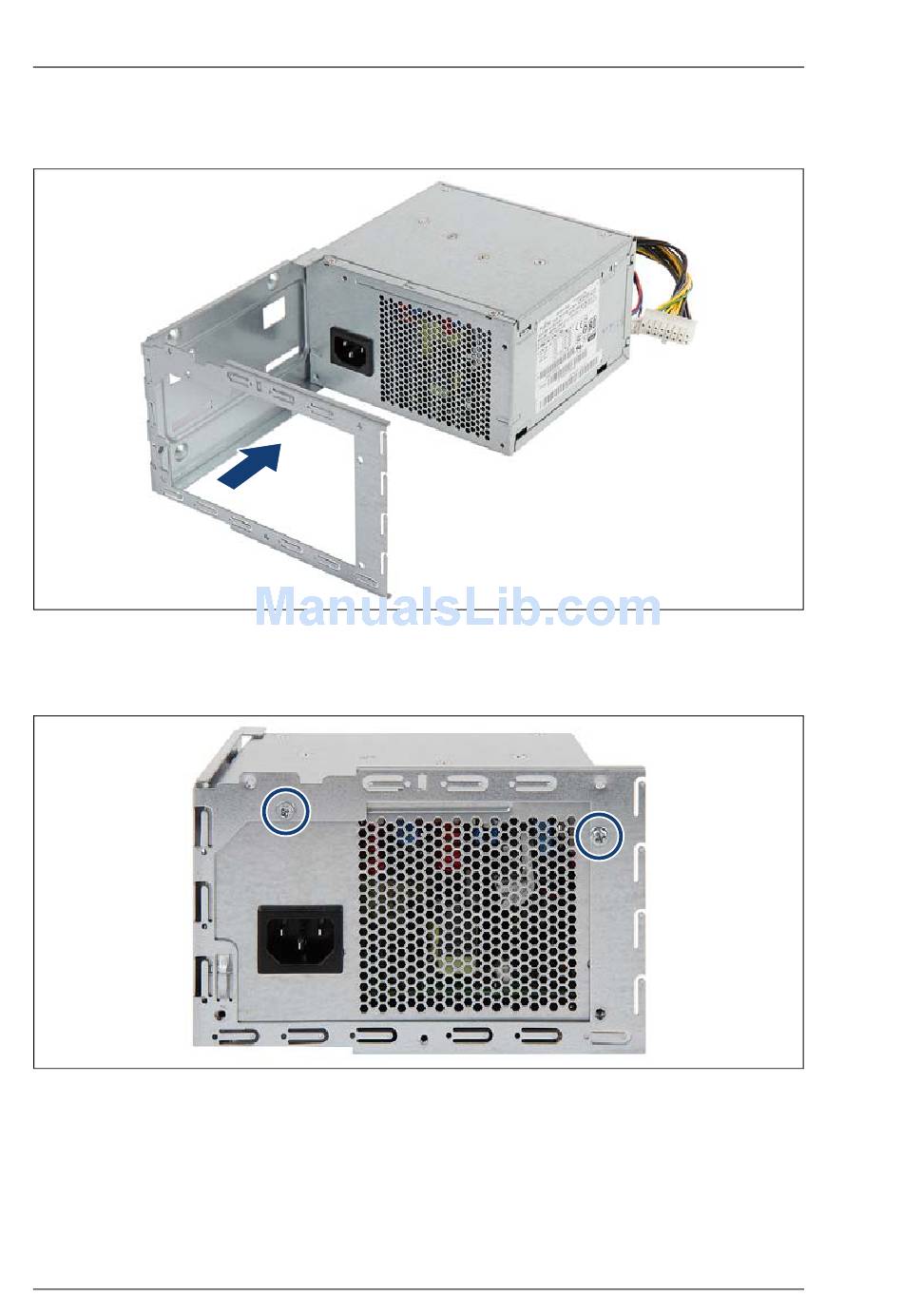

Figure 31: Attaching the installation frame to the power supply unit
Ê Attach the installation frame to the power supply unit.
Figure 32: Securing the installation frame to the power supply unit
Ê Secure the installation frame to the power supply unit with two screws (see
circles).
104
Upgrade and Maintenance Manual
TX1330 M1
