Basic software procedures
5.1.6

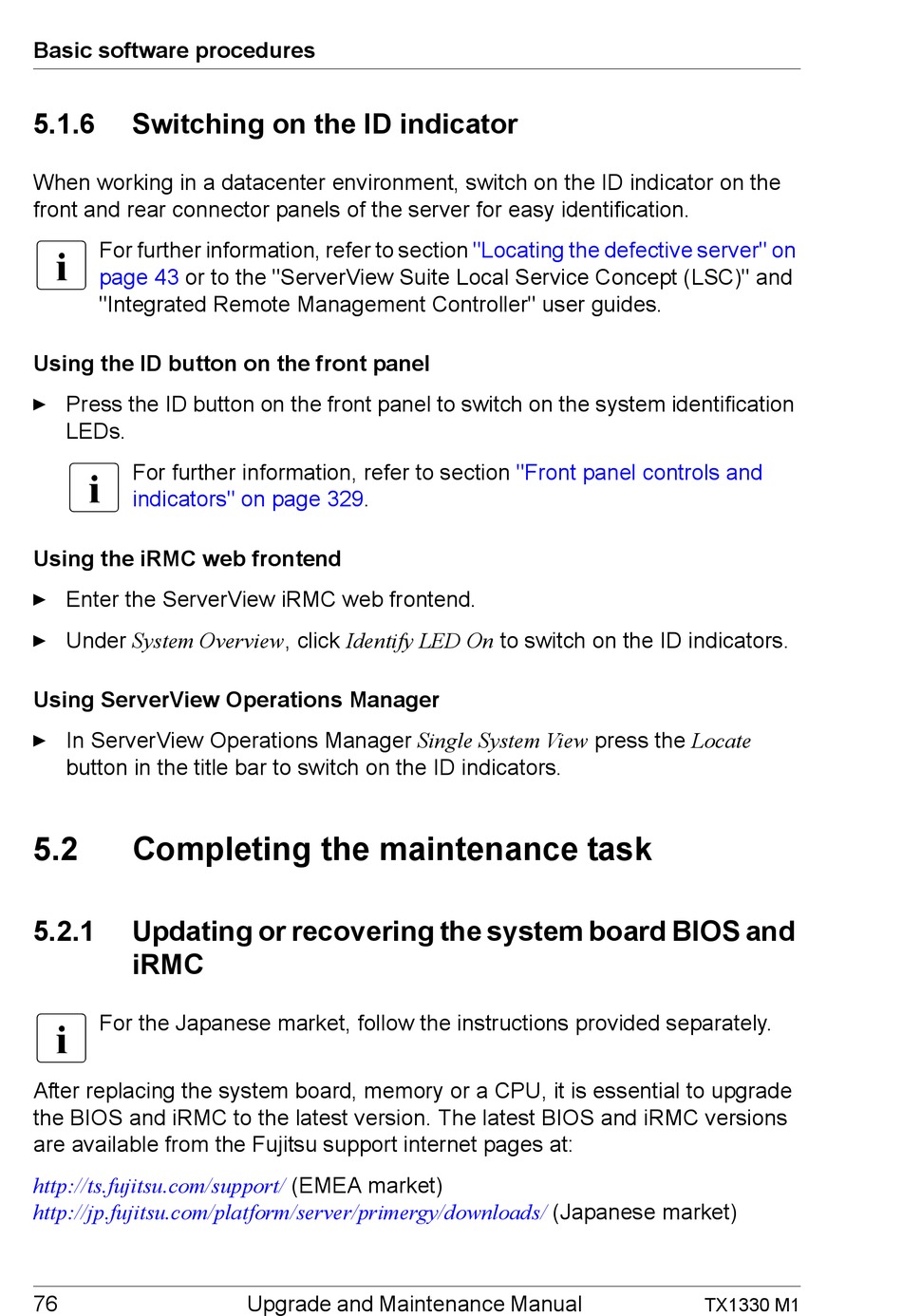

Switching on the ID indicator

When working in a datacenter environment, switch on the ID indicator on the
front and rear connector panels of the server for easy identification.
I
For further information, refer to section
page 43 or to the "ServerView Suite Local Service Concept (LSC)" and
"Integrated Remote Management Controller" user guides.
Using the ID button on the front panel
Ê Press the ID button on the front panel to switch on the system identification
LEDs.
I
For further information, refer to section
indicators" on page
Using the iRMC web frontend
Ê Enter the ServerView iRMC web frontend.
Ê Under System Overview, click Identify LED On to switch on the ID indicators.
Using ServerView Operations Manager
Ê In ServerView Operations Manager Single System View press the Locate
button in the title bar to switch on the ID indicators.
5.2

Completing the maintenance task

5.2.1 Updating or recovering the system board BIOS and
iRMC
I
For the Japanese market, follow the instructions provided separately.
After replacing the system board, memory or a CPU, it is essential to upgrade
the BIOS and iRMC to the latest version. The latest BIOS and iRMC versions
are available from the Fujitsu support internet pages at:
http://ts.fujitsu.com/support/
http://jp.fujitsu.com/platform/server/primergy/downloads/
76
329.
(EMEA market)
Upgrade and Maintenance Manual
"Locating the defective server" on
"Front panel controls and
(Japanese market)
TX1330 M1
