System board and components

14.3.2.2 Removing the UFM

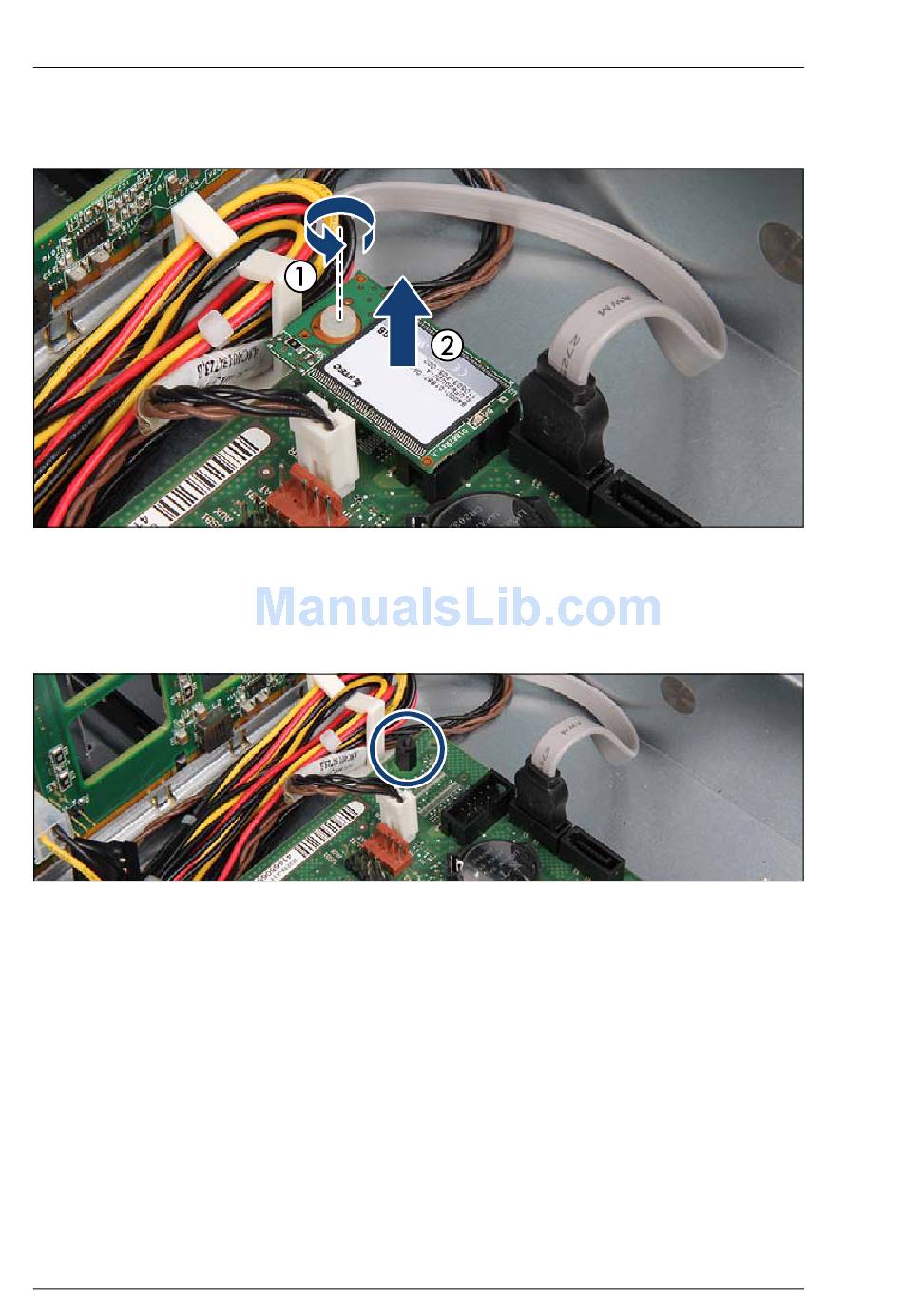

Figure 164: Removing the UFM (A)
Ê Remove the nylon screw (1).
Ê Disconnect and remove the UFM (2).
Figure 165: Removing the UFM (B)
Ê The UFM spacer remains on the system board.

14.3.2.3 Concluding steps

"Reassembling" on page 58
Ê
"Connecting the server to the mains" on page 67
Ê
"Switching on the server" on page 68
Ê
"Enabling BitLocker functionality" on page 90
Ê
