xStack DGS-3200 Series Layer 2 Managed Gigabit Ethernet Switch Web UI Reference Guide
VID (1-4094)
Password
Old Password
New Password
Confirm Password
Click the Apply button to accept the changes made. Click the Delete All button to remove all the entries listed. Click the Edit
VLAN Name button to re-configure the specific entry's VLAN Name. Click the Edit VID button to re-configure the specific
entry's VLAN ID. Click the Clear VLAN button to remove the VLAN information from the specific entry. Click the Delete
button to remove the specific entry.

WAC Port Settings

Users can view and set port configurations for Web authentication.
To view the following window, click Security > Web-based Access Control (WAC) > WAC Port Settings:
To set the WAC on individual ports for the Switch, complete the following fields:
Parameter
From Port / To Port
Aging Time (1-1440)
Click the button and enter a VID in this field.
Enter the password the administrator has chosen for the selected user. This field is case-
sensitive and must be a complete alphanumeric string. This field is for administrators who
have selected Local as their Web-based authenticator.
Enter the original password.
Enter the new password
Retype the password entered in the previous field.

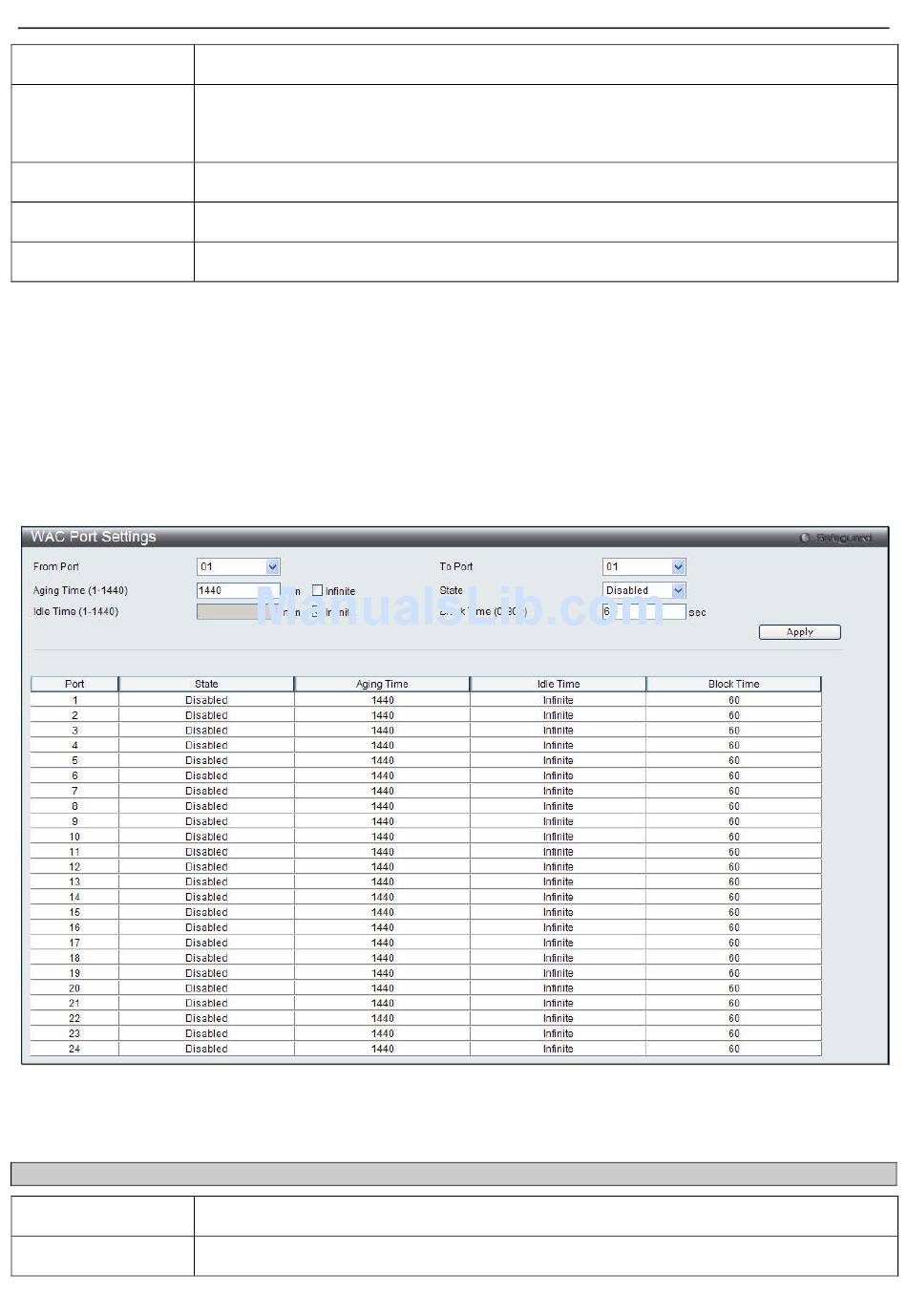

Figure 6 - 59. WAC Port Settings window
Description
Use this drop-down menus to select a range of ports to be enabled as WAC ports.
This parameter specifies the time period during which an authenticated host will remain in the
