IGMP Snooping Forwarding Table

This page displays the switch's current IGMP snooping forwarding table. It provides an easy way for user to check the list of ports
that the multicast group comes from and specific sources that it will be forwarded to. The packet comes from the source VLAN.
They will be forwarded to the forwarding VLAN. The IGMP snooping further restricts the forwarding ports.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > IGMP Snooping Forwarding
Table:
The following parameters can be configured:
Parameter
VLAN Name
VID List
Click the Find button to locate a specific entry based on the information entered. Click View All to see all the entries.

IGMP Snooping Counter

This window is used to display the Switch's IGMP Snooping counter table.
To view the following window, click L2 Features > L2 Multicast Control > IGMP Snooping > IGMP Snooping Counter:
The following parameters can be configured:
Parameter
VLAN Name
VID List

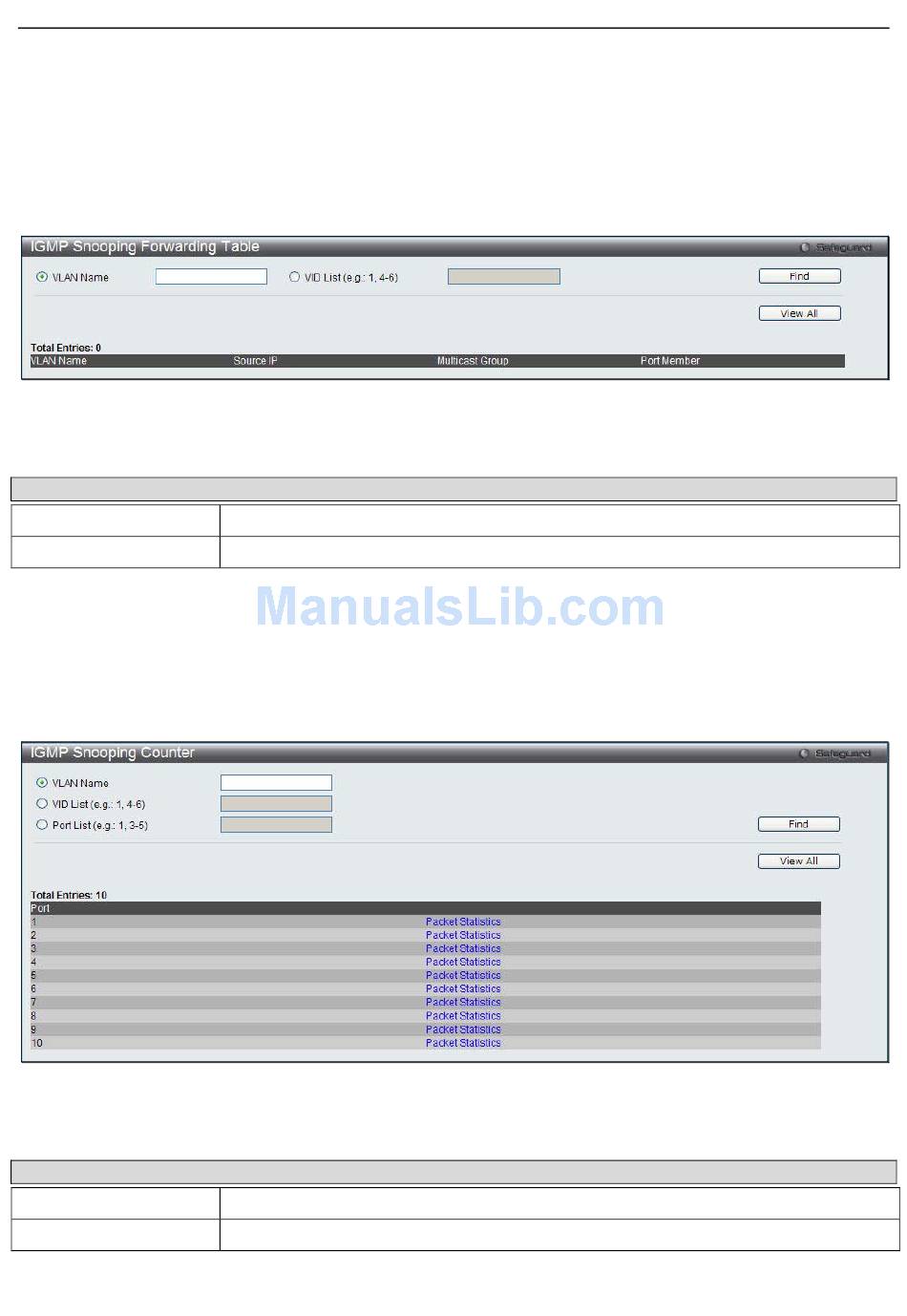

Figure 3 - 33. IGMP Snooping Forwarding Table window
Description
The VLAN name of the multicast group.
The VID list of the multicast group.
Figure 3 - 34. IGMP Snooping Counter window
Description
The VLAN name of the multicast group.
The VID list of the multicast group.
