Time Interval
Record Number
ExDefer
CRC Error
LateColl
ExColl
SingColl
Collision
Show/Hide
Click the Apply button to accept the changes made. Click the Clear button to clear all statistics counters on this window. Click
the View Table link to display the information in a table rather than a line graph. Click the
information in a line graph rather than a table.

Browse ARP Table

This window is used to display current ARP entries on the Switch.
To view the following window, click Monitoring > Browse ARP Table:
To search a specific ARP entry, enter an Interface Name or an IP Address at the top of the window and click Find. Click the
Show Static button to display static ARP table entries. To clear the ARP Table, click Clear All.

Browse Router Port

Users can display which of the Switch's ports are currently configured as router ports. A router port configured by a user (using
the console or Web-based management interfaces) is displayed as a static router port, designated by S. A router port that is
dynamically configured by the Switch is designated by D, while a Forbidden port is designated by F.
To view the following window, click Monitoring > Browse Router Port:
Select the desired setting between 1s and 60s, where "s" stands for seconds. The default
value is one second.
Select number of times the Switch will be polled between 20 and 200. The default value is
200.
Counts the number of packets for which the first transmission attempt on a particular
interface was delayed because the medium was busy.
Counts otherwise valid packets that did not end on a byte (octet) boundary.
Counts the number of times that a collision is detected later than 512 bit-times into the
transmission of a packet.
Excessive Collisions. The number of packets for which transmission failed due to excessive
collisions.
Single Collision Frames. The number of successfully transmitted packets for which
transmission is inhibited by more than one collision.
An estimate of the total number of collisions on this network segment.
Check whether or not to display ExDefer, CRCError, LateColl, ExColl, SingColl, and Collision
errors.

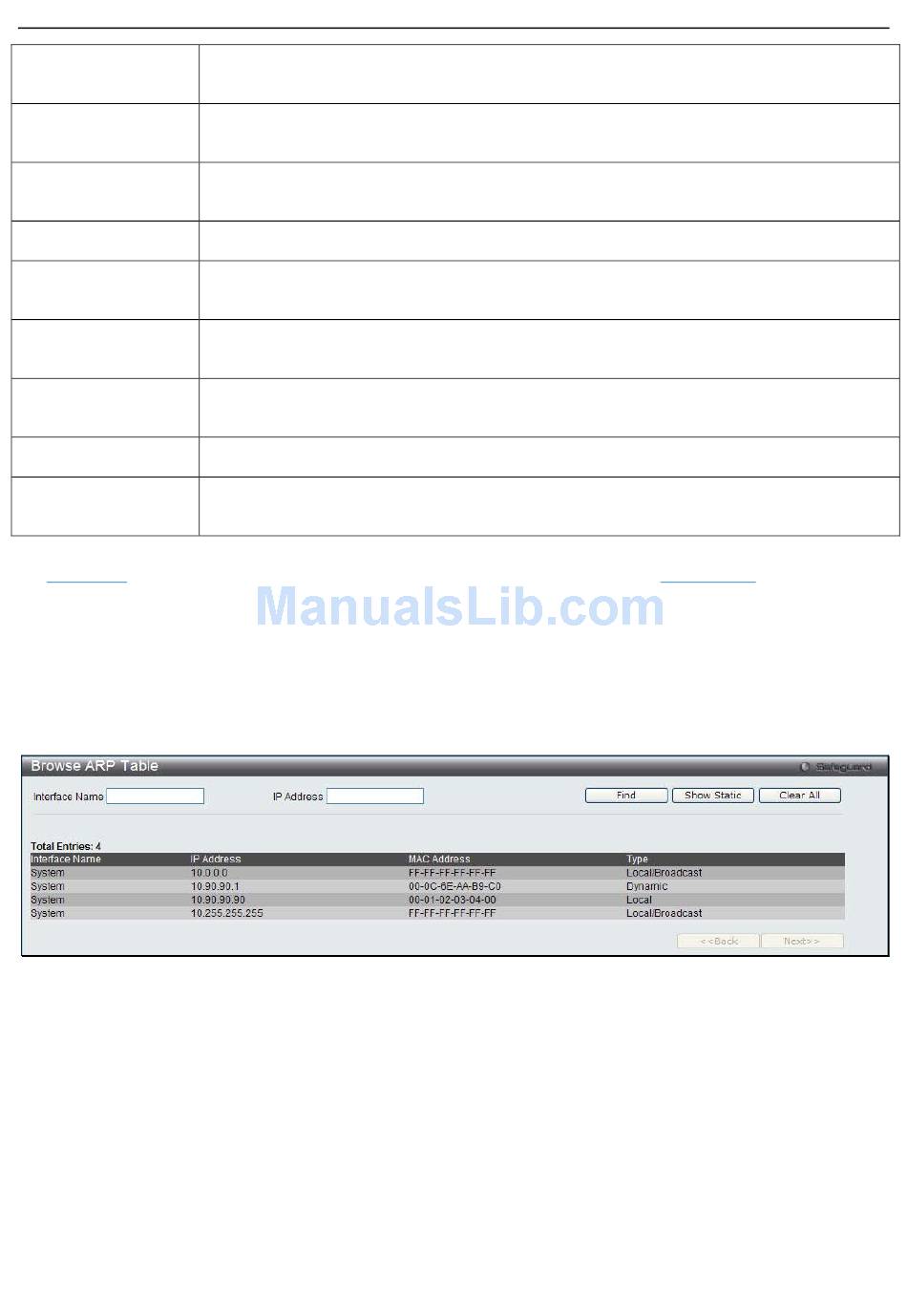

Figure 10 - 18. Browse ARP Table window
266
View Graphic link to display the
