To add an entry to the Static Unicast Forwarding Table, define the following parameters. To modify an entry on the Static Unicast
Forwarding Table, click the Edit button corresponding to the entry. To delete an entry in the Static Unicast Forwarding Table,
click the corresponding Delete button.
Parameter
VLAN Name
VLAN List
MAC Address
Port / Drop
Click Apply to implement the changes made.

Multicast Forwarding

Users can set up multicast forwarding on the Switch.
To view the following window, click L2 Features > Forwarding & Filtering > Multicast Forwarding:
The following parameters can be configured:
Parameter
VID
Multicast MAC
Address
Port

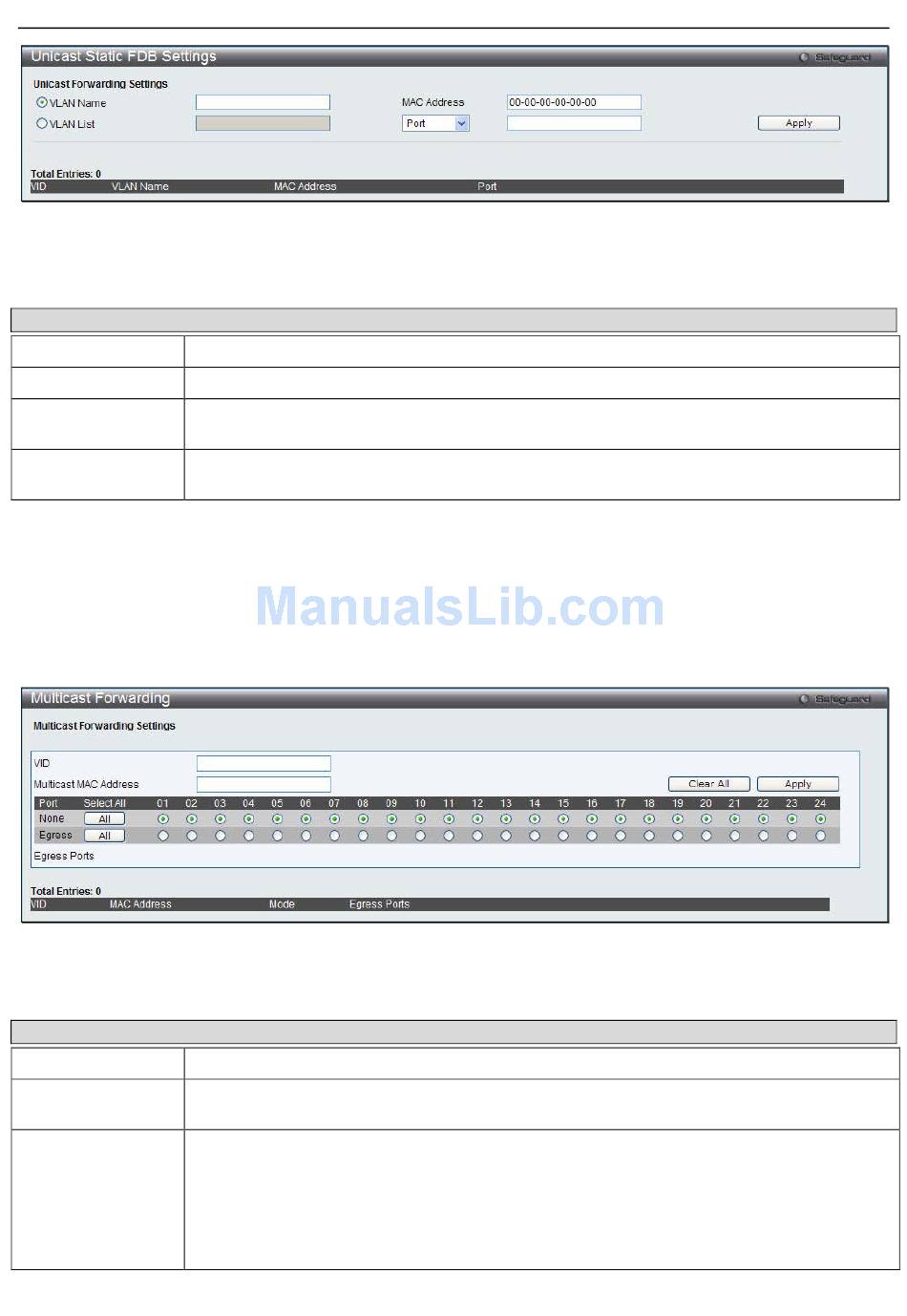

Figure 3 - 71. Unicast Forwarding window
Description
Click the radio button and specify the name of VLAN.
Click the radio button and specify a list of VLAN IDs.
The MAC address to which packets will be statically forwarded. This must be a unicast MAC
address.
Select Port and enter the port number to forward traffic to the specified device through this
port. Select Drop to have the Switch to drop traffic.
Figure 3 - 72. Multicast Forwarding window
Description
The VLAN ID of the VLAN the corresponding MAC address belongs to.
The static destination MAC address of the multicast packets. This must be a multicast MAC
address. The format of the destination MAC address is 01-xx-xx-xx-xx-xx.
Allows the selection of ports that will be members of the static multicast group and ports that
are either forbidden from joining dynamically, or that can join the multicast group dynamically,
using GMRP. The options are:
None - No restrictions on the port dynamically joining the multicast group. When None is
chosen, the port will not be a member of the Static Multicast Group.
Egress - The port is a static member of the multicast group.
102
