If no device is configured by the name, it will be given the name default and tagged with the
last six digits of the MAC Address to identify it.
Local Port Displays the number of the physical port on the CS that the MS or CaS is connected to. The
CS will have no entry in this field.
Speed Displays the connection speed between the CS and the MS or CaS.
Remote Port Displays the number of the physical port on the MS or CaS to which the CS is connected. The
CS will have no entry in this field.
MAC Address Displays the MAC Address of the corresponding Switch.
Model Name Displays the full Model Name of the corresponding Switch.

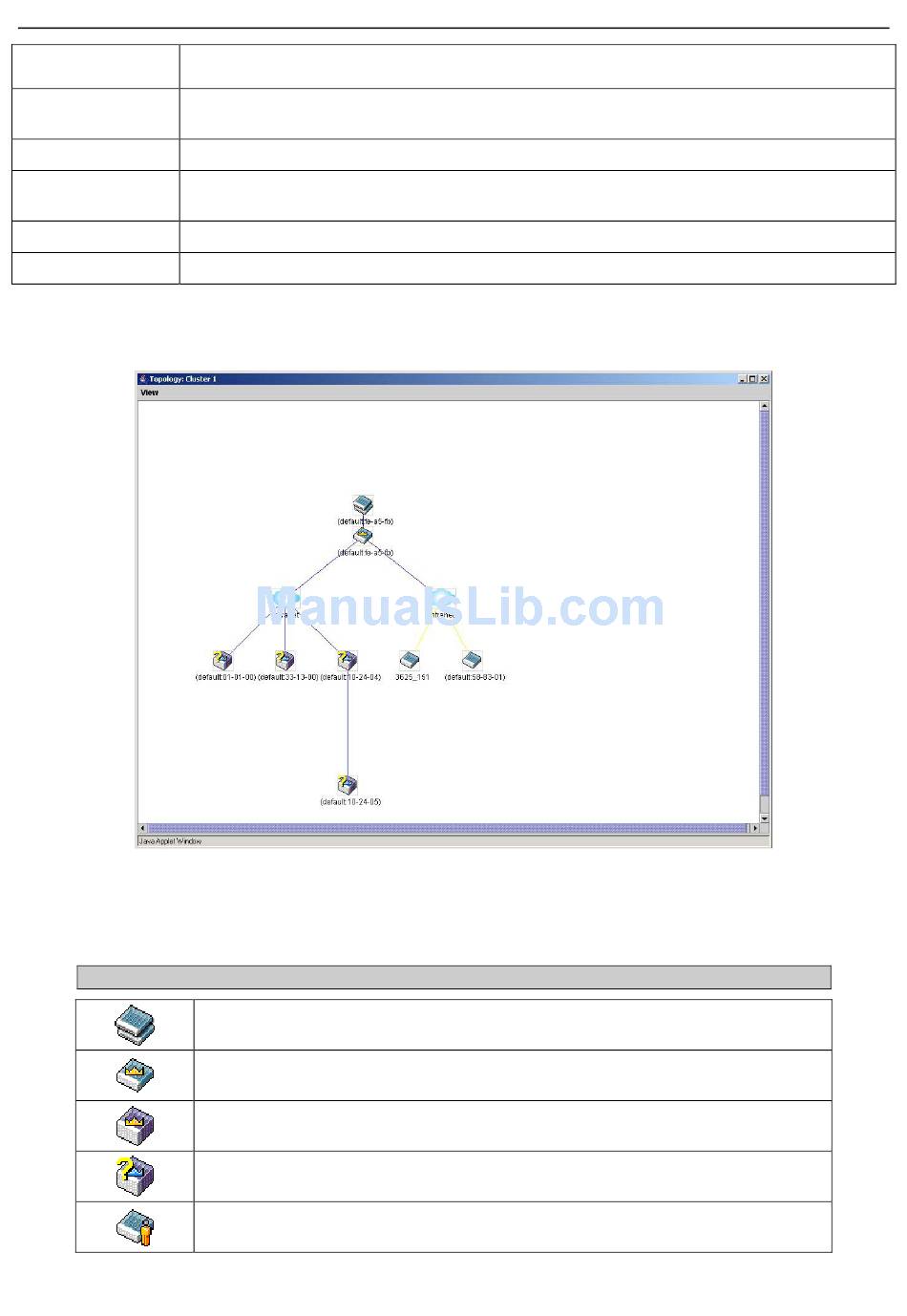

To view the Topology View window, open the View drop-down menu in the toolbar and then click Topology, which will open
the following Topology Map. This window will refresh itself periodically (20 seconds by default).
This window will display how the devices within the Single IP Management Group connect to other groups and devices. Possible
icons on this window are as follows:
Icon
Figure 2 - 49. Topology View window
Description
Group
Layer 2 commander switch
Layer 3 commander switch
Commander switch of other group
Layer 2 member switch.
