The following parameters can be configured:
Parameter Description
Profile Name Use the drop-down menu to select the IGMP Snooping Multicast VLAN Group Profile name.
Click the Add button to add a new entry based on the information entered. Click the Delete button to remove the specific entry.
Click the Show IGMP Snooping Multicast VLAN Entries

Multicast Filtering

IPv4 Multicast Filtering

IPv4 Multicast Profile Settings

Users can add a profile to which multicast address(s) reports are to be received on specified ports on the Switch. This function will
therefore limit the number of reports received and the number of multicast groups configured on the Switch. The user may set an
IPv4 Multicast address or range of IPv4 Multicast addresses to accept reports (Permit) or deny reports (Deny) coming into the
specified switch ports.
To view the following window, click L2 Features > Multicast Filtering > IPv4 Multicast Filtering > IPv4 Multicast Porfile
Settings:
The following parameters can be configured:
Parameter
Profile ID (1-24)
Profile Name
Click the Add button to add a new entry based on the information entered. Click the Find button to locate a specific entry based
on the information entered. Click the Delete All button to remove all the entries listed. Click the
multicast address group list settings for the specific entry. Click the Edit button to re-configure the specific entry. Click the Delete
button to remove the specific entry.
Click the Group List link to see the following window.
link to view the IGMP Snooping Multicast VLAN Settings.

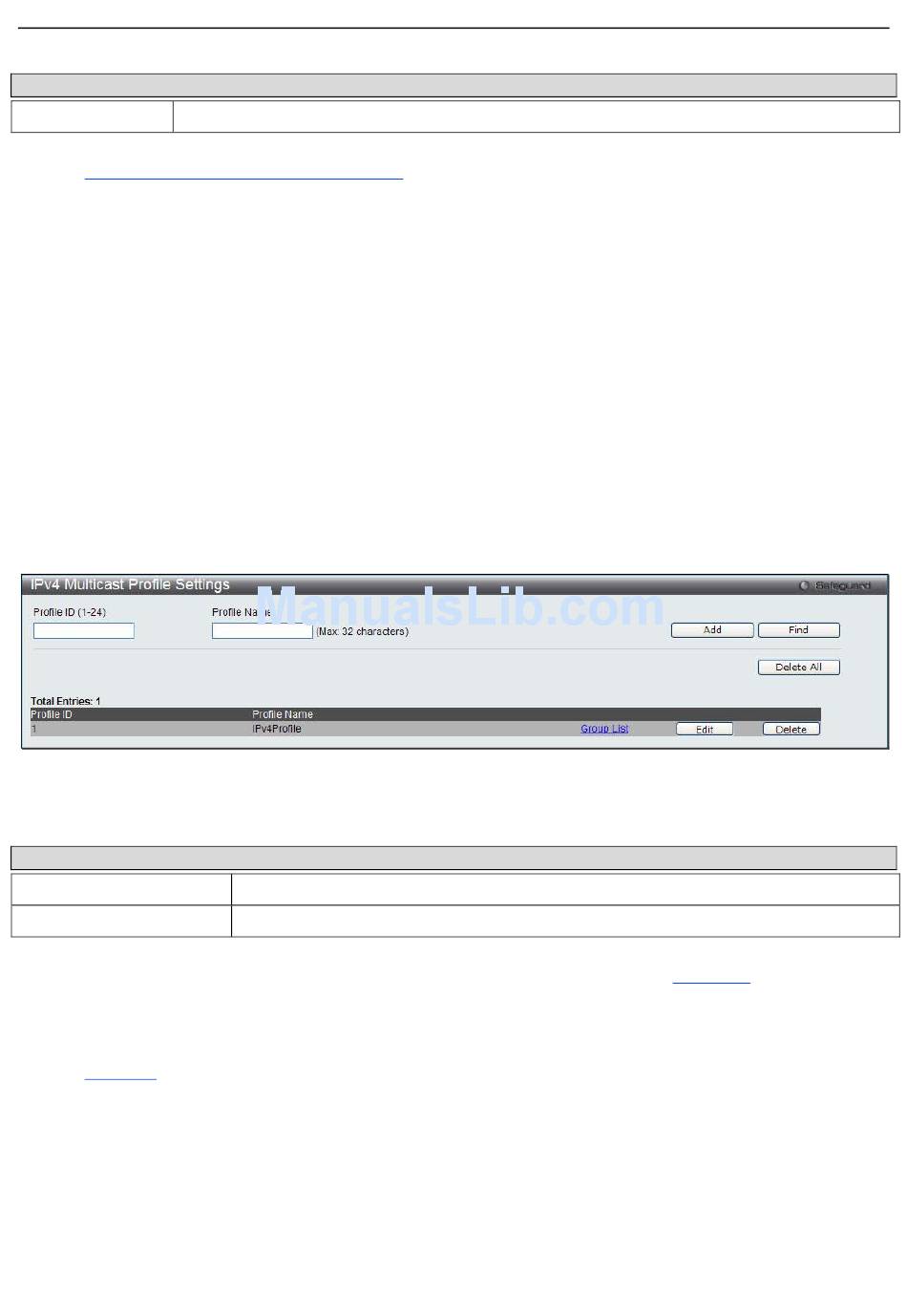

Figure 3 - 54. IPv4 Multicast Profile Settings window
Description
Enter a Profile ID between 1 and 24.
Enter a name for the IP Multicast Profile.
87
Group List link to configure the
