Troubleshooting

10.4.2 Status LED - EtherCAT

Interfaces C5 and C6 (EB and EC models) each have two LED lights that indicate the status of
the fieldbus when communicating on the EtherCAT network.
Green light
Orange light

10.4. Status LED - PROFINET

Interfaces C5 and C6 (EB and EC models) each have two LED lights that indicate the status of
the fieldbus when communicating on the PROFINET network.
Green light
Yellow light

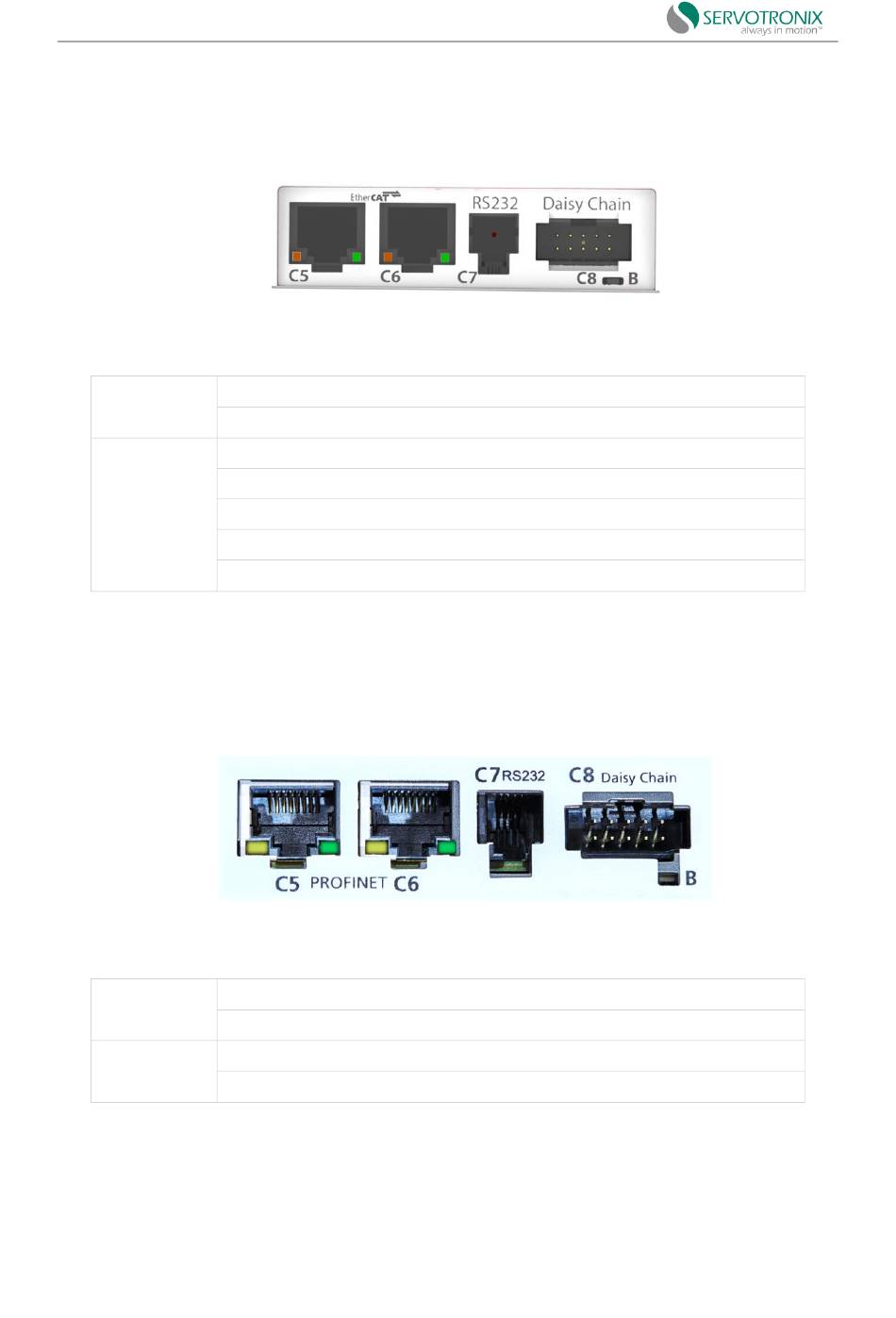

Figure 10-2 Top panel interfaces and LEDs on the EtherCAT model
Table 10-6
Flashing - communication activity
Off - no communication activity
Normally on - working (OP) status
Slow flash - SAFEOP status
Fast flash - preparation (PREOP) status
Super fast flash - boot program (BOOT) status
Off - initial (INIT) state
Figure 10-2 Top panel interfaces and LEDs on the PROFINET model
Table 10-7
Normally on - communication activity
Off - no communication activity
Normally on - port is connected
Off - no connection to the port
—262
—
