Application Setup
CDHD2S|ServoStudio2
15. In the error correction screen, press Load from File to load the data file saved in
CARTO.(*.RTL).
16. The data will now be loaded from the file and the error correction table will be imported
and displayed.
17. Enable option: Activate error correction.
18. The yellow line indicates the position that the error correction value is applied.
19. Use the SAVE command (Save button in the menu bar) to save the error correction table to
the non-volatile drive memory.
20. It is recommended that you repeat the measurement process using a laser system and
confirm that the error has been reduced.
—175
—

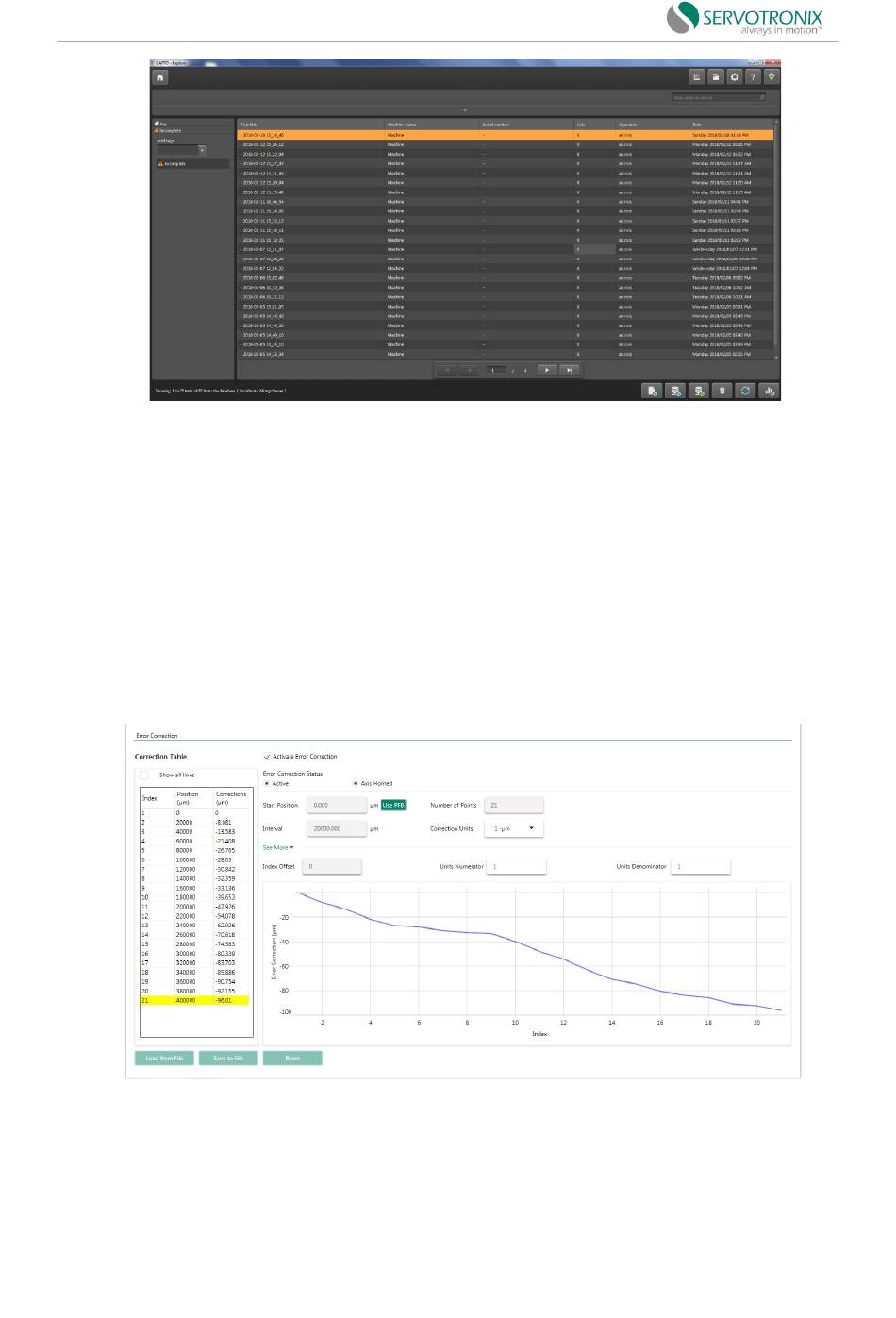

Figure 6-52
