Application Setup
CDHD2S|ServoStudio2
9. Issue a command to move the axis to an out-of-range position.
The out-of-range position should be at least a few millimeters from the start capture position.
The out-of-range position must be defined as an axis movement from the out-of-range position to
the sampling range in the defined direction of laser movement.
10. Issue a command to move the axis from the out-of-range position to the first sampling
position.
11. Issue a command to move the axis to the same position where the laser system is set up to
perform the measurement. Scripts can be used. Please refer to the example below.
The procedure must include a delay (DELAY) command for each measurement point, with a
duration slightly longer than the laser trigger definition time. The recommended value is 5 seconds.
#ClearOutput
#Var$start_position=-10
#Var$stop_position=401
#Var$interval=20
#Var$cmd=0
#Var$Vel=80
#Var$index=1
#Var$Corr
en
—173
—

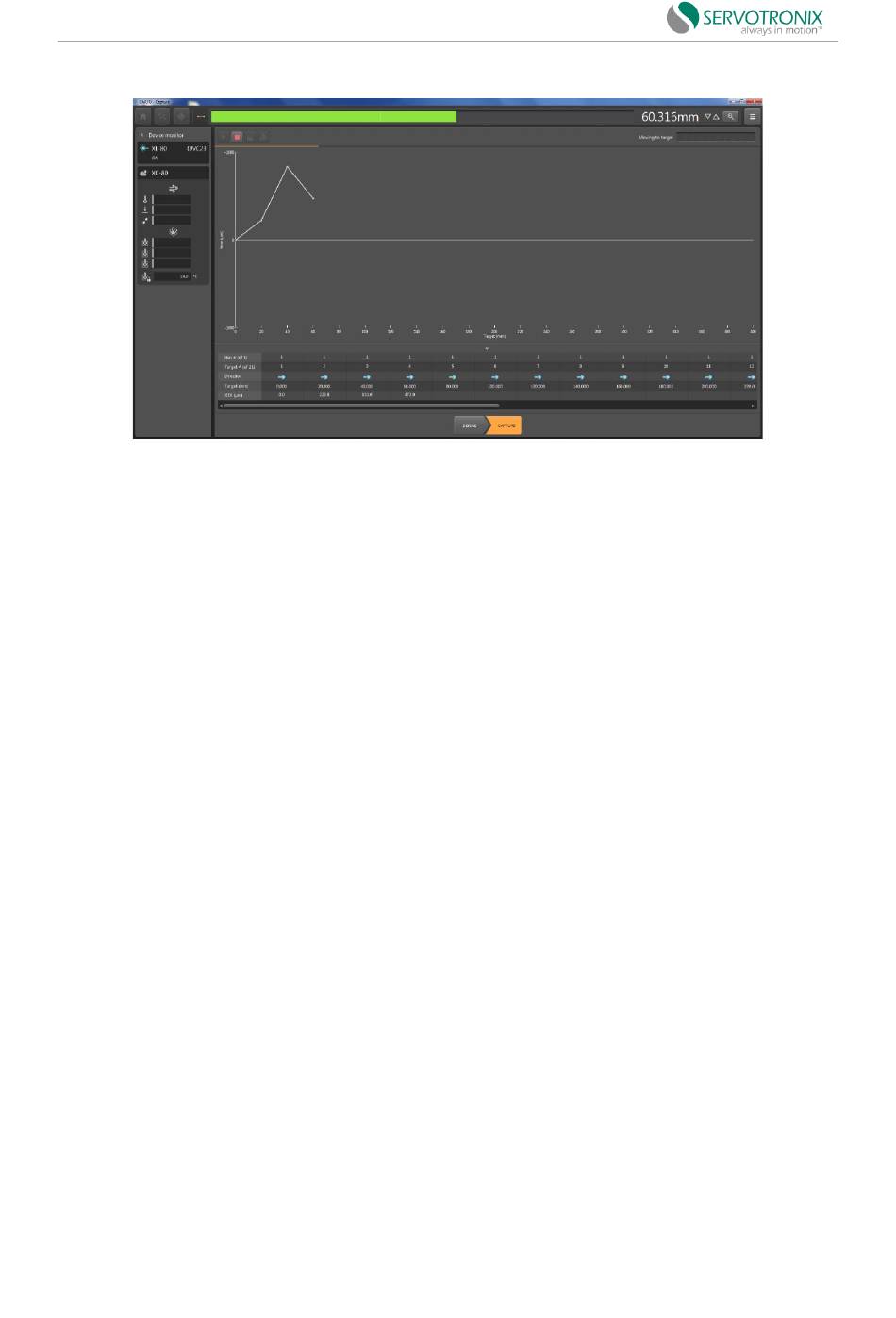

Figure 6-50
