Motor Setup
Motor - Setup - Motor identification and initialization
If the drive detects the electronic motor nameplate, the parameters in this screen will be set
automatically and cannot be operated. Just click Next to proceed to the next step.
If the drive does not detect the electronic nameplate (or the software does not communicate
with the drive), you can select the motor from the ServoStudio2 motor library.
If the motor is not listed in the default motor library, click Define New Motor and enter the
parameters for the specific motor by following the new motor wizard.
1. Select motor series.
2. Select the motor model.
3. Select the characters that match the label on the motor (# means the field can be ignored).
4. Click Verify to send parameters to the drive and test the motor configuration.
Motor setup - current, velocity limit and position limit
The wizard provides suggestions for low, medium, or high limits for current and velocity. These
values correspond to 25%, 50% and 100% of the maximum respectively.

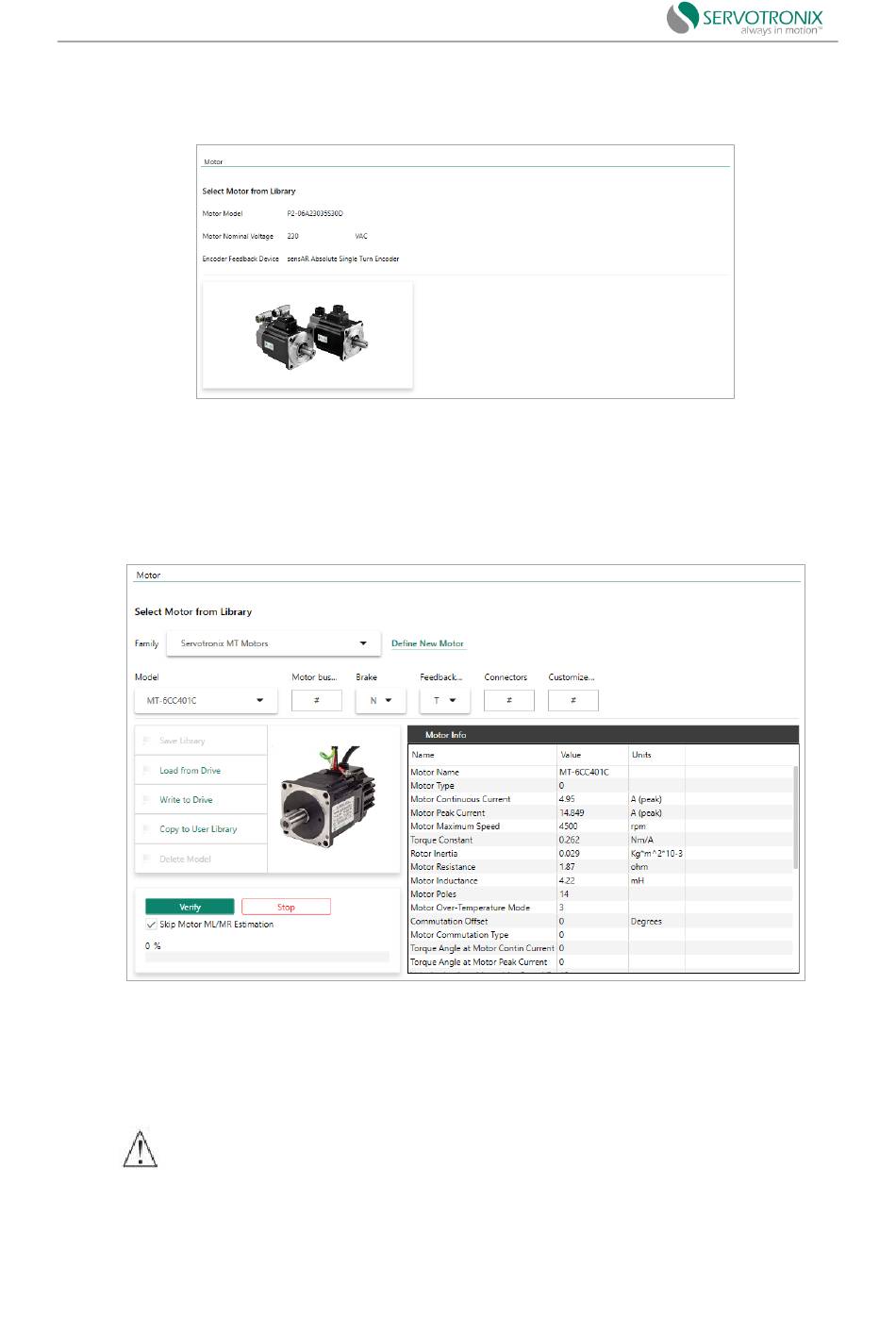

Figure 5-3 Motor setup wizard - automatic motor detection
Figure 5-4 Motor setup wizard - motor selection
Verification will start the drive and drive the motor!
