Servotronix CDHD2S User Manual page 105

Drive Setup

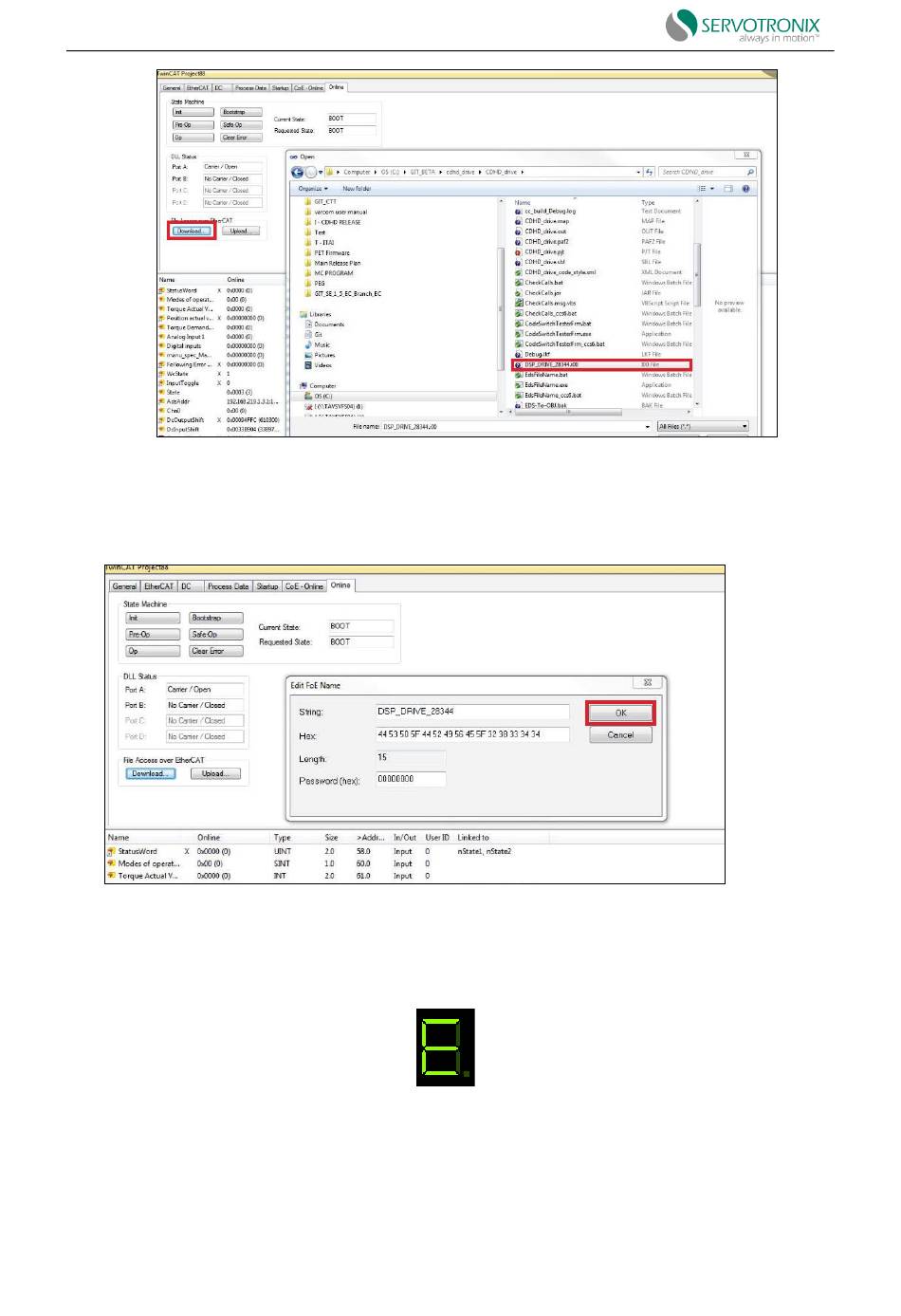

7. The Edit FoE Name dialog box will open.
8. Do not change anything in this dialog box. Click "OK".
9. The firmware update process begins.
Digital display screen shows:
In the TwinCAT status bar at the bottom of the screen, "Downloading" is displayed on the left
and a progress bar is displayed on the right.
—105
—
Figure 4-48
Figure 4-49
Figure 4-50
