5.5.4. Create and Edit Satellite Channel Plan

When system switch to satellite mode, press the
satellite channel plan edit interface. Left side colume is satellite list (include
satellite name and satellite longitude). The asterisk (*) identifies to the active
satellite. The active satellite name display on the title bar. When the the symbol
"√" is marked on the transponder, it means this transponder is valid. No symbol
"√" is marked on the transponder, it means this transponder is invalid. User can
directly use finger tap on the STA column to modify the transponder valid and
invalid status. User also can use the arrow keys move the cursor to the
transponder list position, then use the
different transponder, press the
invalid status.

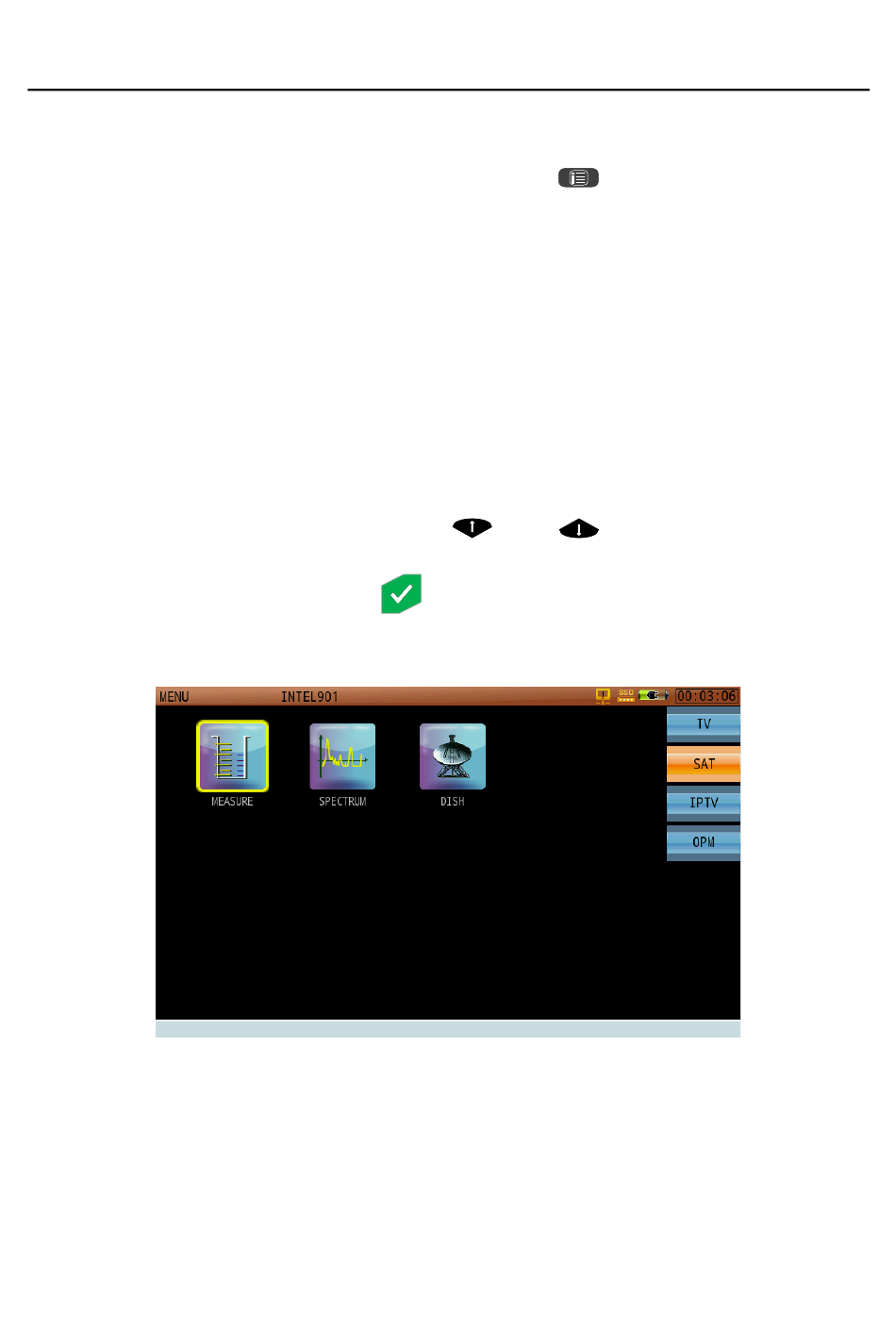

Figure 5-59 System Switch to Satellite Measurement Mode
Satellite channel plan is composed of satellite and satellite transponder. Every
year many new satellites have been launched and many satellite often midify
transponder setting. Not any uniform standards, so user need manually add
satellite channel plan parameters and update transponder parameters.
