So user can tap the soft button [ATT>] to open attenuator modify sub-menu. User
taps the button [INPUT] can directly input attenuator value, tap the button [INC]
or [DEC] to increase or decrease the attenuator value. By modify attenuator, some
signal can meet the Simple Emissions Mask requirements.

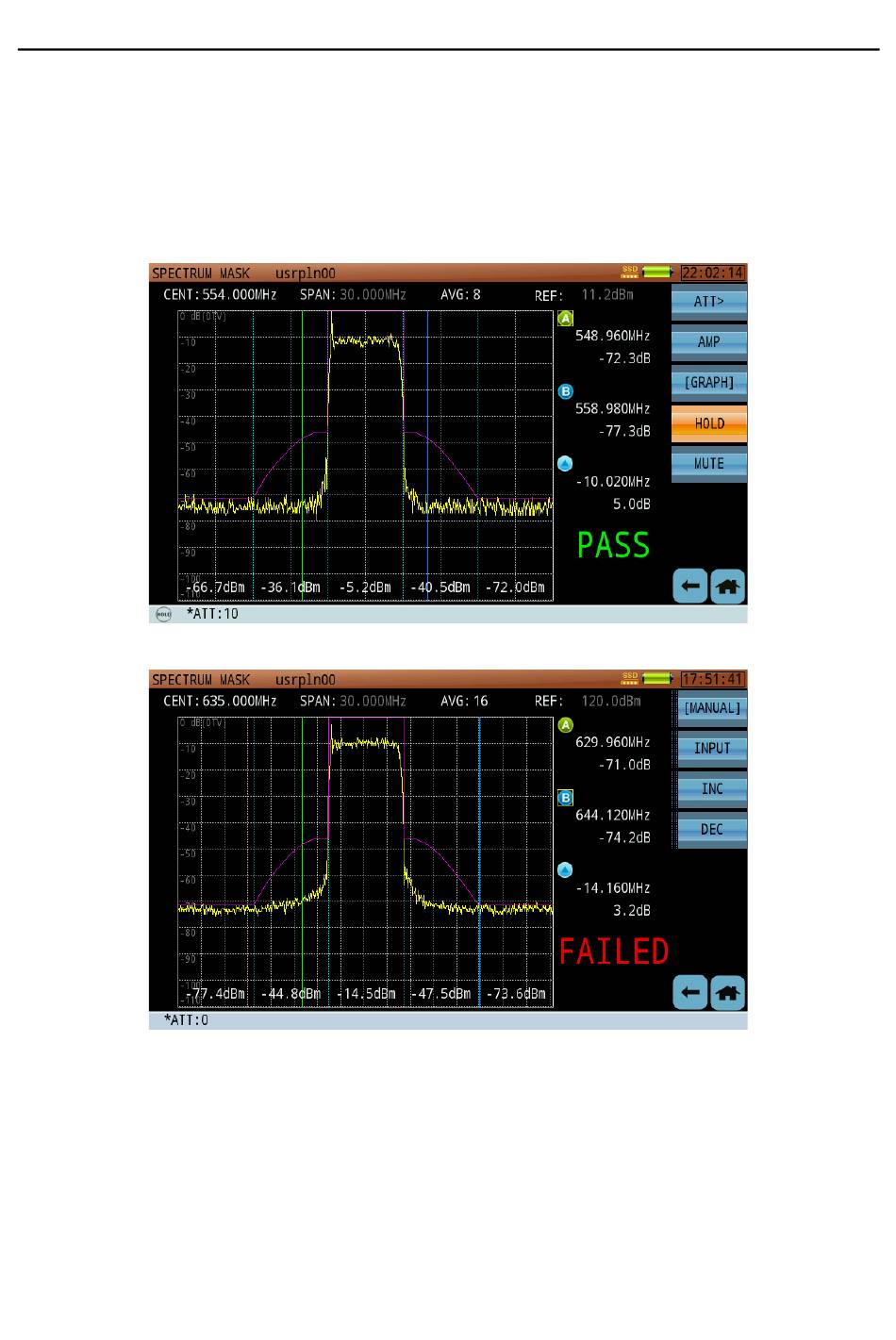

Figure 6-31 Spectrum Mask Test - Pass
Figure 6-32 Spectrum Mask Test - Failed
The spectrum mask also support list display, the main frequency point display on
the list, every frequency point give pass or faild indication and test value, as the
Figure 6-33 show.
