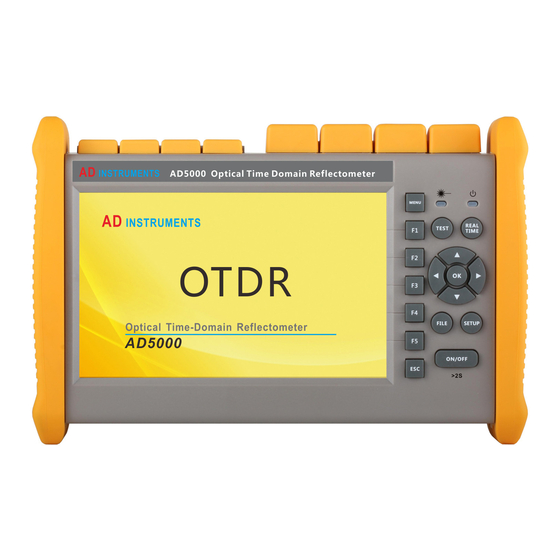

AD5000 OTDR
Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD5000 and is the answer not in the manual?

Questions and answers

Related Manuals for ADInstruments AD5000

Summary of Contents for ADInstruments AD5000

  • Page 1 AD5000 OTDR Manual...
  • Page 2 Reflectometer).This user’s manual contains useful information about the instrument’s functions and operating procedures and the handling precautions of AD5000 OTDR.To ensure correct use, please read this manual thoroughly before beginning operation.After reading the manual, keep it in a convenient location for quick reference whenever a question arises during operation.
  • Page 3 Trademark • Microsoft, Windows, and Windows XP are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Adobe and Acrobat are trademarks of Adobe Systems Incorporated. • For purposes of this manual, the TM and ® symbols do not accompany their respective trademark names or registered trademark names.
  • Page 4 Standard Accessary OTDR standard accessary showed in next table. Description Quantity Num. Power Adapter(220V 50Hz) Power Patchcord Data Cable Carrying Case Securing Strip Manual Module OTDR optional accessary showed in next table. Item Specification Description U disk USB 2.0 Optional OTDR module Standard VFL module...

  • Page 5: Safety Precautions

    Safety Precautions To use the instrument safely and effectively, be sure to observe the precautions given in the user’s manual. Not complying might result in injury or death. Warning Use the Correct Power Supply Before connecting the power cord, ensure that the source voltage matches the rated supply voltage of the AC adapter and that it is within the maximum rated voltage of the provided power cord.
  • Page 6 The storage media can become damaged. Apply Correct Signals to the Optical Connectors Do not apply light that is —10dBm or greater to the FHO 5000 optical Connectors. Doing so may damage the AD5000...
  • Page 7 Symbol Icons on the main body or in manual Warning: handle with care. Refer to the user’s manual or Hazard, radiation of laser apparatus service manual. This symbol appears on dangerous locations on the instrument which require special instructions for proper handling or use.

  • Page 8: Table Of Contents

    Content 0.0Names and Functions of Parts............11 ....................11 0.1 Front Panel ....................13 0.2 Top Panel....................15 0.3 Back Panel....................16 0.4 Side Panel .................17 0.5 Main Menu Interface ................19 0.6 OTDR Module Interface ................20 0.7 VFL Module Interface 1.0Preparation..................21 ..................21 1.1 Attaching the Belt .................22 1.2 Connect the Power supply.
  • Page 9 ..................50 5.2.1 Activating Cursor ..................50 5.2.2 Moving Cursor ..................51 5.3Curve Operation..................51 5.3.1Horizontal Zoom ..................52 5.3.2Vertical Zoom ..................53 5.3.3Horizontal Shift ..................54 5.3.4Vertical Shift..................55 5.4Elaborating Event ................56 5.5 Switching between curves ..................57 5.5.1 Removing Curve(s) ..................58 5.6 Removing an event..................59 5.7Adding an event 6.0File Operation.................60...
  • Page 10 ................71 14.3Cleaning of Optical Port.....................72 14.4Calibration. 15.0 Diagnosis Center................73 ....................73 15.1 FAQ ..................75 15.2 Help information 16.0 Specification...................76 ...................76 16.1 Physical Parameter ....................76 16.2 Test Index .....................77 16.3 Dimension 17.0 Warranty..................78 ...................78 17.1 Terms of Warranty....................78 17.2 Exclusions ..................78 17.3 Transportation ..............79...

  • Page 11: Names And Functions Of Parts

    Names and Functions of Parts Front Panel VIII Num. Item Function Tag select button(F1-F Enter relevant menu Direction Move cursor and confirm FILE Open Database SETUP Proceed quick set ON/OFF Turn on/off OTDR...
  • Page 12 Cancel current menu MENU Back to menu VIII REAL TIME Realtime test mode TEST Averaging test mode Test State Indicate test state （green-averaging mode，red-realtime mode Indicator Power Indicate working state and charging state （Green-working state Indicator or fully charged，Red-charging）...

  • Page 13: Top Panel

    Top Panel VIII Num. Item description AC-DC port Connect to AC adapter Connect external device like U Main USB disk,keyboard and mouse Sub USB （mini USB） Remote control through PC Internet Access Connect to internet VFL(visual fault VFL module port locator) port OTDR port OTDR module port...
  • Page 14 port(optional) VIII OTDR2 port Reserved port （optional）...

  • Page 15: Back Panel

    Back Panel Item Warning label Battery compartments Supporting plate...

  • Page 16: Side Panel

    Side Panel Description Handle belt buckle Fenders...

  • Page 17: Main Menu Interface

    Main Menu Interface Function Description Side menu Enter relevant interface Function Modules Area Enter relevant module Basic State Information Area Display information of date ,time and power...

  • Page 18: Otdr Module Interface

    OTDR Module Interface Function Description Thumbnail of For user's reference to the integrated curve. current curve Curve display Display events and curves. and operating area...
  • Page 19 Display event information Event list area including:"Type","distance(Km)","Loss(dB)","T.Loss( dB)","Slope(dB/km)" and "Reflection(dB)". Display condition information test Test condition including"PW"(Pulse width), information "WL"(wavelength),resolution of X axis and Y area axis(dB/div),distance,averaging and total loss from cursor A to cursor B.

  • Page 20: Vfl Module Interface

    VFL Module Interface Num. Function VFL mode indicator Launching state indicator...

  • Page 21: Preparation

    Preparation Attaching the Belt Procedure: 1．Introduce belt through the buckle. 2．Put on the sheath. 3．Introduce belt through another buckle. 4．Fix the belt.

  • Page 22: Connect The Power Supply

    Connecting the Power Supply Using AC adapter AC adapter Connect adapter after shut down Patchcord Once connect to AC adapter , power indicator turns red(if it is not fully charged), adapter is charging the battery , after fully charged power indicator turns green.
  • Page 23 Installing Battery 1.Rotate buckle anticlockwise to open. 2.Install battery. 3.Close the cover, rotate buckle clockwise to close. Caution Ø Proper charging temperature is: -10~50 ,high charging temperature may shorten battery life. Ø Charging time is about 5 hours with power on, about 3 hours with power off. Don't charge battery more than 8 hours.

  • Page 24: Turnning On

    Less than 20% Caution Ø In case of low power, special icon will appear, and after that for a while AD5000 will turn off automatically. Ø If it has not been used for an extended period of time,AD5000 will turn of immediately after turned on to protect the internal battery ,please connect the AC adapter adapter.

  • Page 25: Connecting The Fiber

    Connecting the Fiber Before connect fiber to FHO 5000， clean fiber end first ,the dust which on the end of connector may damage the optical port or reduce test quality. Procedure： 1. Put connector against the cleaner. 2. press the handle of cleaner. 3.

  • Page 26: Introduction Of Otdr

    Introduction of OTDR Purpose of Measurement OTDR shows the back-scatter light power of the optical signal relative to the distance. With this information, the OTDR could measure a series of important information of an optical fiber such as the quality of the line, distance of the line and etc.
  • Page 27 A normal trace shows as above, the A mark is a start-peak and the B mark is a end-reflection-peak. The tested trace is oblique, the total loss will become bigger with the increasing of the fiber length. The total loss(dB) divides total length is the average loss(dB/km) of a fiber. Curve with Jumper Connected If there is additional reflection peak in a tested trace, this may be caused by a connection point or some other reasons.
  • Page 28 If the tested trace is just like the figure shows above, this might be caused by several reasons like: a bad connection between the connector and the lunching port, the optical pulse cannot be launched into the optical fiber or a short distance broken point of the tested fiber from the initial connection and the preset testing distance and pulse width is larger.
  • Page 29 Abnormal Condition The situation that there is no reflection peak at the end of a trace shows above should be paid attention on. If the distance of the tested fiber is available and the distance shown on OTDR is not equal to the original distance, this shows that the fiber might be broken down or twisted and the bending radius of it is over limited.

  • Page 30: Fundamental Of Otdr

    Fundamental of OTDR OTDR——Optical Time Domain Reflector is a high precision optical testing meter that use the theory of Rayleigh scattering and Fresnel reflection. It is widely used in the maintenance, construction and monitoring of an optical line. All the important parameters like fiber length, optical loss, connection loss, broken or twisted point and etc.
  • Page 31 n is the refraction ratio of the testing fiber(specified by manufacturer). When display the whole trace, each point of the trace represents the average value of several sampling points. By zoom in and zoom out function, the value of each sampling point can be got. Working Principle of OTDR...

  • Page 32: Event Type

    Event Type Reflection event End event Start event or non reflection event Types of event The events on trace are all the points that the value of power loss fluctuates abnormally. It usually contains various types of connection and bending, crack, broken and etc.
  • Page 33 receives the returned optical signal and starts calculating the distance from a event. The more the distance from the event is, the longer the returning time is cost. According to the receiving time,distance can be calculated. By detecting the trace generated by the returned optical signal, the attributes of the fiber itself, the connector of the fiber, adaptor in the fiber and splicing point in the fiber can be confirmed.

  • Page 34: Setting Measurement Conditions

    Test Wavelength of OTDR, including 1310nm,1550nm and Test Wave 1310nm&1550nm 3 kinds of mode. Auto Mode: AD5000 will set best parameters for current test Test Mode Manual Mode: set parameters manually. Under averaging test mode(TEST),longer test time has better SNR Test Time (Signal Noise Ratio) but takes more time.

  • Page 35: Setting To Auto Mode

    Setting to Auto Mode In Auto mode,you could just proceed test by setting proper wavelength. Procedure: 1.Press 【 SETUP 】 button to enter "Test SETUP Setting" interface 2. Set "Auto" mode 3.Set test wave Caution Auto test mode is not suitable to proceed Blind area test,user should enter "Manual"...

  • Page 36: Setting To Manual Mode

    Setting to Manual Mode In manual mode,user could set proper range and pulse width manually. Procedure: 1.Press【SETUP】button to enter "Test Setting" SETUP interface 3.Set test wave 2.Set "Manual" mode 4.Set range and pulse width...
  • Page 37 Caution Ø When "Pulse width" set to "Auto", test will choose proper pulse width automatically Ø When "Test Range" set to "Auto", test will choose proper range automatically Ø Once you set the “Test range”，“Pulse width”item will adjust automatically you could also adjust manually Proper relationship between Range and pulse width(PW) （...

  • Page 38: Making Measurements

    Making Measurements AD5000 has two test modes: averaging test mode and realtime test mode. Averaging test mode Averaging test mode can calculate the data of curve over a period of time and display as a averaging one ,test time could set "Test Time" in "Test Setting".

  • Page 39: Realtime Test Mode

    Realtime Test Mode Realtime test mode could check network , adjust test range and pulse width in real-time. Press【REALTIME】button on control panel, test state indicator turns green,enter realtime test interface. REALTIME Realtime test interface...

  • Page 40: Setting Wavelength

    4.2.1 Setting Wavelength Procedure： 1. Select wavelength (WL) tag to set wavelength(1310nm or 1550nm). 2. Confirm by【OK】button. 4.4.2 Setting Test Range and Pulse Width Procedure： 1. Select tag "Params"to set Test range(range) and Pulse width(PW). 3. Confirm by 【OK】button.

  • Page 41: Event List

    Event List After test,event list will appear immediately at the bottom of the window,user could get detail information about this test from the list. Event 1 Reference point Event 2 Event List Description of items showed in chart below: Item Description Type Type of event（Attenuation events，Reflection events and...
  • Page 42 Slope Ratio of event loss value（dB）(from this event to last dB/km event)to distance（km）(distance from this event to last event) Reflect.dB Return loss of this event(dB)

  • Page 43: Distance Measurement

    Distance Measurement Measure the distance from one point to another. Procedure： 1. Press【F1】button to active cursor function. 2. control【 】﹑【 】to move cursor A or B. 【 】 ：move left 【 】 ：move right 3. Get information by following the guide below： Reference point Loss between Cursor A and...

  • Page 44: Otdr Optimizing Tool

    OTDR Optimizing Tool Guide Fiber Connecting Flange Reflection Event 1.Guide fiber Use an guide fiber to figure out the character of connector. By adding this fiber we could move the fist connector out of the blind area.In the same way we could use this way to figure out the character of last connector.

  • Page 45: Setting Proper Parameters

    Setting Proper Parameters At the fist time using OTDR, if user choose some testing parameter which is not suitable to the real condition may cause the bad result. User should take Testing range,pulse width and wavelength into consideration. Setting proper testing range Testing range means maximum display range.This parameter will indicate how long will OTDR display on its screen.this range must longer than testing fiber,Usually we choose range which is 20% longer than testing fiber.Take...
  • Page 46 It is obviously at the top of testing fiber influence on Pulse width , in below chart,we cant detect the first connecting point locate in the 540m by large pulse width.(see Figure 3) Figure 3 Dynamic range decided by Pulse width,larger pulse width will spend more optical power,but it reach further.(see Figure 4) 500ns 5000ns...
  • Page 47 Figure 5 Set proper test time In averaging mode, long testing time could reduce noise during the data sampling and Improve precision to get better and smoother curve(see Figure Figure 6...

  • Page 48: Expanding The Waveform And Moving The Display Area

    Expanding the Waveform and Moving the Display Area Switching between Event List and Display Window In "current test" interface,press【F4】button to switch between “Curve”and “Event”,expend each section after switch,this function could also switch between cursor("Curve") and selection tag("Event"). Procedure: In test interface, 1.
  • Page 49 Switch to "Event", move selection tag to choose event. Every time move selection bar to an event in event list,cursor will move synchronously relevant event curve. User could "Zoom","Move","Switch"function to adjust curve to a better position, for more information please read next sections. The chart below describe the items in event list: Num.

  • Page 50: Cursor Operation

    Cursor Operation 5.2.1 Activating Cursor In"Current Test" interface, press【F1】button,"cursor"tag turns yellow,means it has been activated. 【F1】 【F2】 【F3】 【F4】 【F5】 5.2.2 Moving Cursor Cursor B Cursor A Cursor AB Sequence of cursor switching Set proper cursor,press 【 】 ﹑ 【 】 button to move current cursor, long press to move cursor faster.

  • Page 51: Curve Operation

    Curve Operation 5.3.1 Horizontal Zoom Procedure: In "Current Test"interface, 1. Press【F2】button to activate "Zoom"function. 2. Control【 】﹑【 】button to zoom in or zoom out curve. 【 】 ：Zoom in curve 】 ：Zoom out curve 【 3. Press【OK】button to reset curve 缩放_水平原始...

  • Page 52: 2Vertical Zoom

    5.3.2 Vertical Zoom Procedure: In "Current Test"interface, 1.Press【F2】button，activate"Zoom"function. 2.Control【 】﹑【 】button to zoom in or zoom out curve. 【 】 ：zoom out 【 】 ：zoom in 2. Press【OK】button to reset curve. Original After operation...

  • Page 53: 3Horizontal Shift

    5.3.3 Horizontal Shift Procedure: In "Current Test"interface, 1.press【F3】button，activate"shift" function. 2.Control【 】﹑【 】button to move right or left. 【 】 ：move right 【 】 ：move left 3. Press【OK】button to reset curve. original After operation...

  • Page 54: 4Vertical Shift

    5.3.4 Vertical Shift Procedure： In "Current Test"interface, 1. Press【F3】to activate“shift"function. 2. Control【▲】﹑【▼】button to move up or down. 【▲】:move up﹑【▼】:move down 3. Press【OK】button to reset curve. Original After operation...

  • Page 55: Elaborating Event

    Elaborating Event This section we will introduce how to elaborate an event on curve,example as event 2 in below curve. Reference point Event 1 Event 2 ： Procedure ： In "Current Test" interface, 1. Press【F1】button to activate cursor function. 2. control【 】﹑【 】to move cursor(A or B) left or right. 3.

  • Page 56: Switching Between Curves

    Switching between Curves This function could used to switch between several curves ,current curve displayed in yellow. Procedure： In "Current Test" interface, 1. Press【F2】button ,active "switch"function. 2. Control【▲】﹑【▼】button to switch between curves. 【▲】 ：switch to above curve 【▼】 ：switch to below curve 3.

  • Page 57: Removing Curve(S)

    After another operation curve B switch to curve C Caution Display maximum 8 curves at one time, if load more than 8 curves, last curve will recover the former one,please refer 6.2 "Load Curve" for learning how to load curve(s). 5.5.1 Removing Curve(s) User could remove one or several curves.

  • Page 58: Removing An Event

    Removing an Event Procedure: In current Test interface, Press 【F1】button to activate tag，move cursor to the target event. Target event Appear by pushing"Next page"tag 3. Press【F4】"Remove Event"tag to 2. Press 【F5】button to select"Next remove event. Page"tag After operation this event in the event list disappear After operation...

  • Page 59: Adding An Event

    Adding an Event Procedures: In current Test interface, Press【F1】 to activate cursor function move to target event. Target event 2.Press 【 F5】 button to select"Next Page"tag( Please refer last section5.6 "Remove an Event"). 3. Press【F3】 to add event. After operation ,this event will appear in the event list sequence will be rearranged.

  • Page 60: File Operation

    File Operation In "Current Test" interface Save the current curve ,press 【FILE】button on the board ,open "File Operation"interface,showed as follow: FILE "File Operation" interface File Setting Saving Curve Procedure: In"Device Directory"window, 1. press 【▲】﹑【▼】 to choose file and subfile then press【OK】. 2.

  • Page 61: Loading Curve(S)

    input characters) and confirm by 【OK】button. Loading Curve(s) Procedure: In"Device Directory"window, 1.Press 【▲】﹑【▼】to choose relative file and subfile press 【OK】. 2. Press【 】 switch to "File list" window. 3.Control 【▲】 ﹑ 【▼】 button to to select relevant file curve file(s),press 【OK】 button to select the relevant file(s).

  • Page 62: File Setting

    File Setting "File Setting " interface Tags： Item Description Menu Back to main menu Filename Modify prefix of file name Save Path Modify the save path of files File Operation Back to "File Operation" interface Quit Quit current interface Items： Item Description Filename...
  • Page 63 Sequence number of next test,and auto increment after SEQNO each test Create folder by Set create folder by today's date and save files separately into them date Split char Set the type of separator Auto save Set Auto save...

  • Page 64: Print Screen

    Print Screen AD5000 could capture current screen and save as ".BMP"format file. Procedure: 1. Press "Next page"tag ,under test interface. 2. Press【F2】button to capture. Save Path User could check captured screen in "File Operation"by pushing 【FILE】 button. Caution User could change save path under "File Setting"(refer section 6.5).

  • Page 65: Entering Characters

    Entering Characters You can enter file names and comments from the character input screen shown below when saving the measured waveforms. Storage Path Text Editing Caps Lock Virtual Keyboard Delete All Delete one character Space Input Method Save and Quit Renaming Next guide will teach you how to change the name of file: Procedure：...

  • Page 66: Vfl(Visual Fault Locator) Module

    VFL(Visual Fault Locator) Module AD5000 equipped with VFL module(650nm) to simply detect broken point of optical network VFL launching port VFL interface VFL module has two modes: Launching continuous wave（650nm） Launching 2Hz modulated wave （650nm） Press "Quit" to quit VFL interface...

  • Page 67: 9.0 Optical Power Meter Moduleļ¼ˆOptional

    9.0 Optical Power Meter Module（Optional） 10.0 1310nm/1550nm Laser Source Module （Optional） 11.0 Optional） 1625 nm OTDR2 Module（...

  • Page 68: Software Update

    12.0 Software Update AD5000 could proceed update by one U disk(with patch storage in root directory). Procedure: 1.Download patch from PC and storage into U disk(※must storage in root directory). 2. Insert U disk into USB port. 3.Turn on AD5000, press【F5】to enter system setting,press【F2】 to proceed upgrades.

  • Page 69: 13.0 Background Information On Measurements

    13.0 Background Information on Measurements 13.1 Viewing the Optical Pulse Measurement Waveform...

  • Page 70: Terminology

    13.2 Terminology Near-end reflection A reflection occurs in the gap between the AQ7270 and the connector for the optical fiber cable. Losses and reflections of the connection points cannot be detected in the section in which this reflection is detected. This section is called a dead zone.

  • Page 71: Maintenance

    14.0 Maintenance 14.1 Notice AD5000 OTDR Use rechargeable Li-ion battery. Pay attention to the following : Ø Keep OTDR dry and clean store at room temperature(15℃～30℃). Ø Charge it monthly if you don't use it for a long time(more than one month ).

  • Page 72: Calibration

    Be careful, don't use tools like plier, it may cause permanent damage to optical port 14.4 Calibration We suggest to calibrate AD5000 OTDR twice a year,for more information please contact us(check section 18.4 "Customer Service and Support" to find our contact information ).

  • Page 73: Diagnosis Center

    15.0 Diagnosis Center 15.1 Fault Reason Solution 1.Holding time on power 1. Long press on ON/OFF key. button is not enough(>2s). 2.Connect external power/ Replace 2.Run out of power / battery a new battery. Can't turn on has broken. 3.Install battery. 3.No battery.
  • Page 74 1. Often happened in large 1.Use proper measuring range and plus width,long range and pulse width setting. short link condition. 2.Reconnect fault point Find Ghost 2.Common ghost caused Reflection event, reduce reflection by continuous reflection of strength. connector.

  • Page 75: Help Information

    15.2 Help Information AD5000 has an build-in manual with essential information Procedure： Turn on OTDR 1.Press【F5】enter system setting，press【F4】to read manual Control 【▲】 【▼】button to flip over 2.Press 【Esc】 to quit...

  • Page 76: Specification

    Specification 16.0 16.1 Physical Parameter Working / Storage temperature：-10~+50°C / -20~+75°C Humidity：<90% Dimension： 253X168X73.6mm Weight：1.5kg（with battery） Battery：7.4V/4.4Ah lithium battery Battery working temperature：-10~+50°C Battery storage temperature：-20~+70°C Working hours：6hours（Condition： Full power，70% brightness，realtime mode） Battery life time：>500times Power：DC9~12V 4A Charging time：4-5hours Shock resistance：Bear 1.2m free fall 16.2 Test Index Dynamic range：40dB/38dB(1310nm/1550nm), 38 dB 1625 filtered...

  • Page 78: Dimension

    16.3 Dimension Units: mm Except where noted ， tolerance default as:±3% (if size<10mm，tolerance:±0.3mm） Top view Front view Side view...

  • Page 79: Warranty

    17.0 Warranty 17.1 Terms of Warranty All AD INSTRUMENTS products are warranted against defective material and workmanship for a period of time from the date of shipment to the original customer. Any product found to be defective within the warranty period would be repaired or replaced by AD INSTRUMENTS free of charge.
  • Page 80 17.4 Customer Service and Support ADVANCED DIGITAL INSTRUMENTS SL Address: Cardeña 9, Local 2 28053 Madrid, Spain Tele: +34 916613037 Fax: +34 916614917 Email: info@adinstruments.es Web: www.adinstruments.es ------------------------------------------------------END LINE--------------------------------------------------...
