S7200 DVB-CI interface as the Figure 6-114 show.

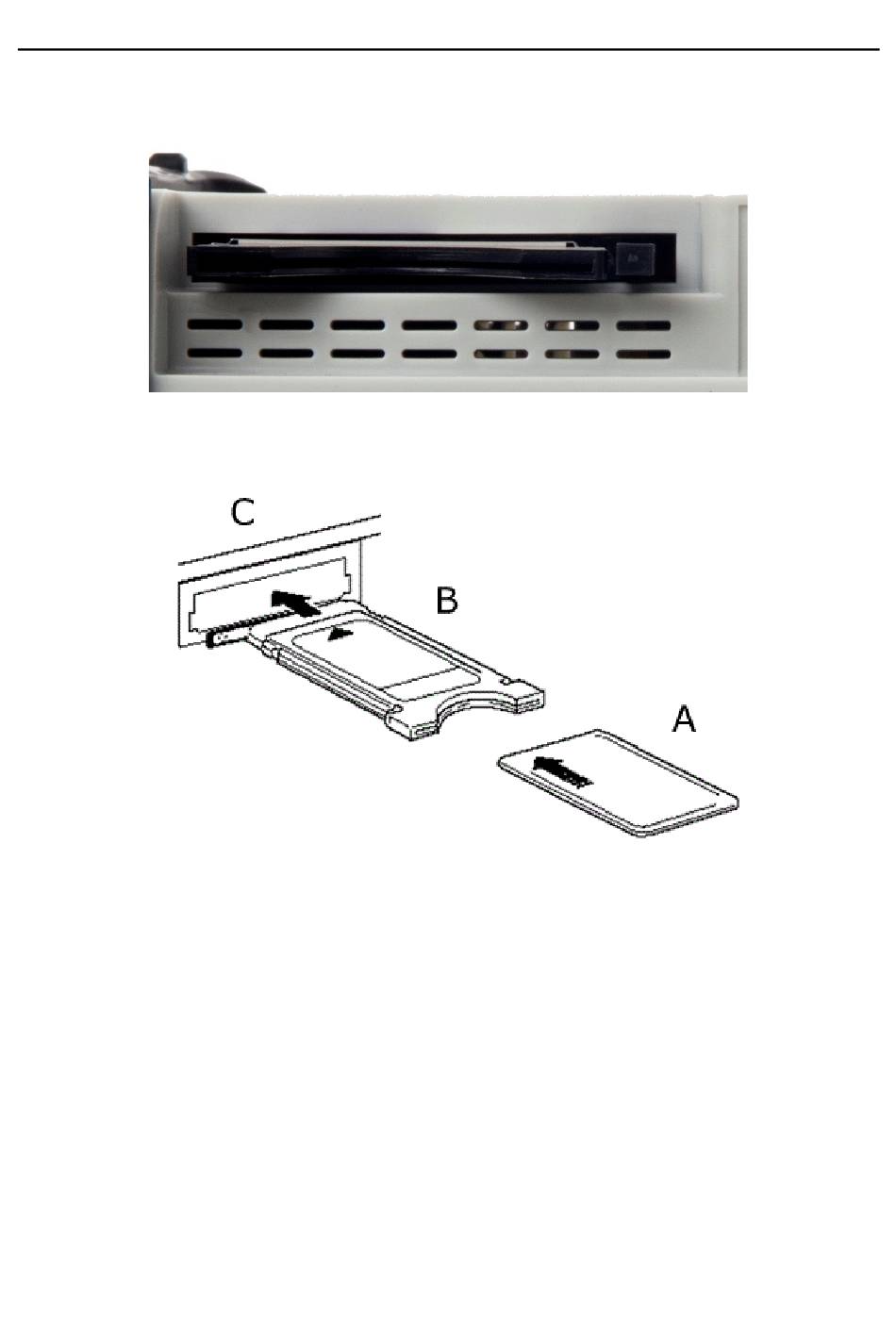

Figure 6-115 Smart Card, CA Module and Common Interface Relationship
The Figure 6-115 describes the Smart Card, CA Module and Common Interface
Relationship. (A: Smart Card, B: CA Module, C: Common Interface)
CA
Conditional Access
CAM
CA Module
CI
Common Interface
PCMCIA
Personal Comuter Memory Card International Association
SC
Smart Card
216
S7200 TV Signal Analyzer Operation Manual
Figure 6-114 S7200's DVB-CI Interface
