6.14.3. Optical Power Measurement

S7200 also provide optical power measurement function. The function also need
optical receiver option. Measure optical power doesn't need setup optical to RF
switch. User only need connect optical fiber on FC/APC port. S7200 auto
judgement optical signal wavelength, the user doesn't need to set.

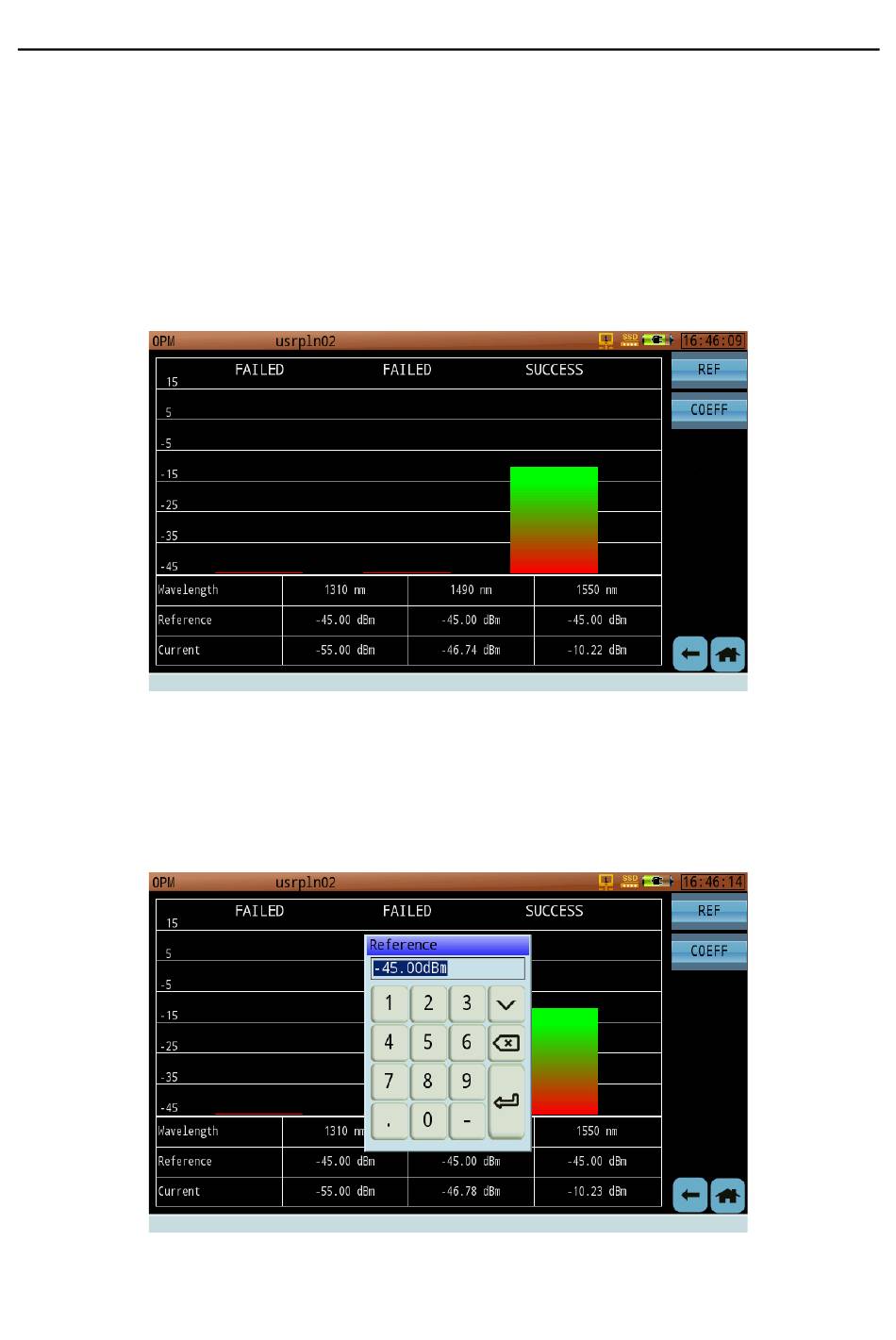

Figure 6-124 Optical Power Meter Function
The reference value is used to set a limit. If optical signal power higher than the
reference value, the "SUCCESS" will display on the top of the screen, otherwise
the "FAILED" will display on the top of the screen.
Figure 6-125 Modify Reference Value
