AD INSTRUMENTS S7200 TV Signal Analyzer Operation Manual
a visual stand-point. (It will be MUCH easier to visualize signal variations, for
example: a hopping frequency signal.)

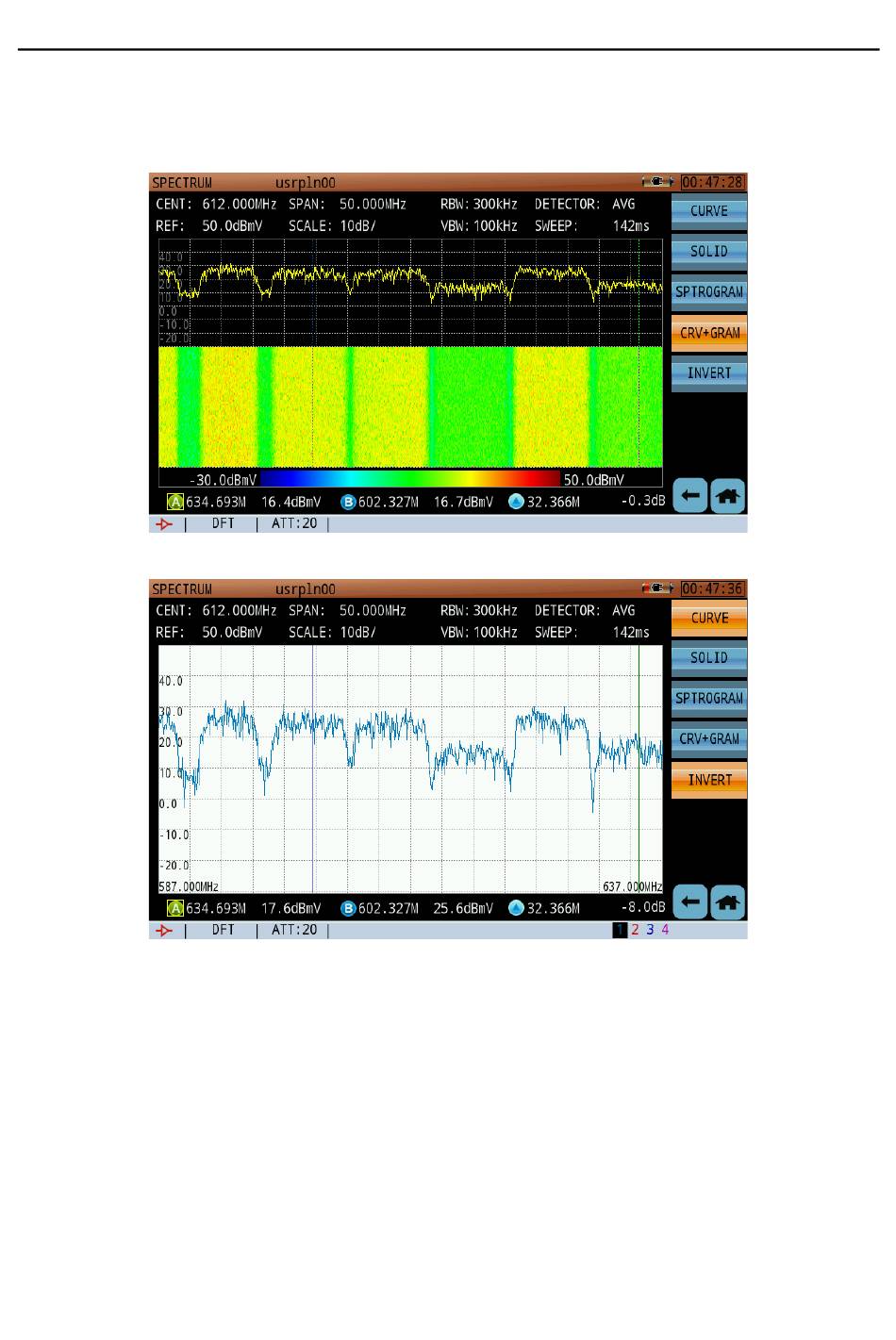

Figure 6-145 Snapshot: Curve - Spectrogram Display Mode
Figure 6-146 Snapshot: Print Mode
We have just introduced a new feature that provides 2 benefits. By inverting the
screen colors from dark background and a light trace color to a light background
and a dard trace color, this can save a lot of toner when priting saved traces for
reporting purposes, AND, when using the instrument in very sunny outdoors
conditions, the screen become much more easily viewable. The typical dark
screen and light trace color is perfect for indoors use and viewability.
242
