AD INSTRUMENTS S7200 TV Signal Analyzer Operation Manual
5dB. 1dB steps are available only through the numerical keypad.

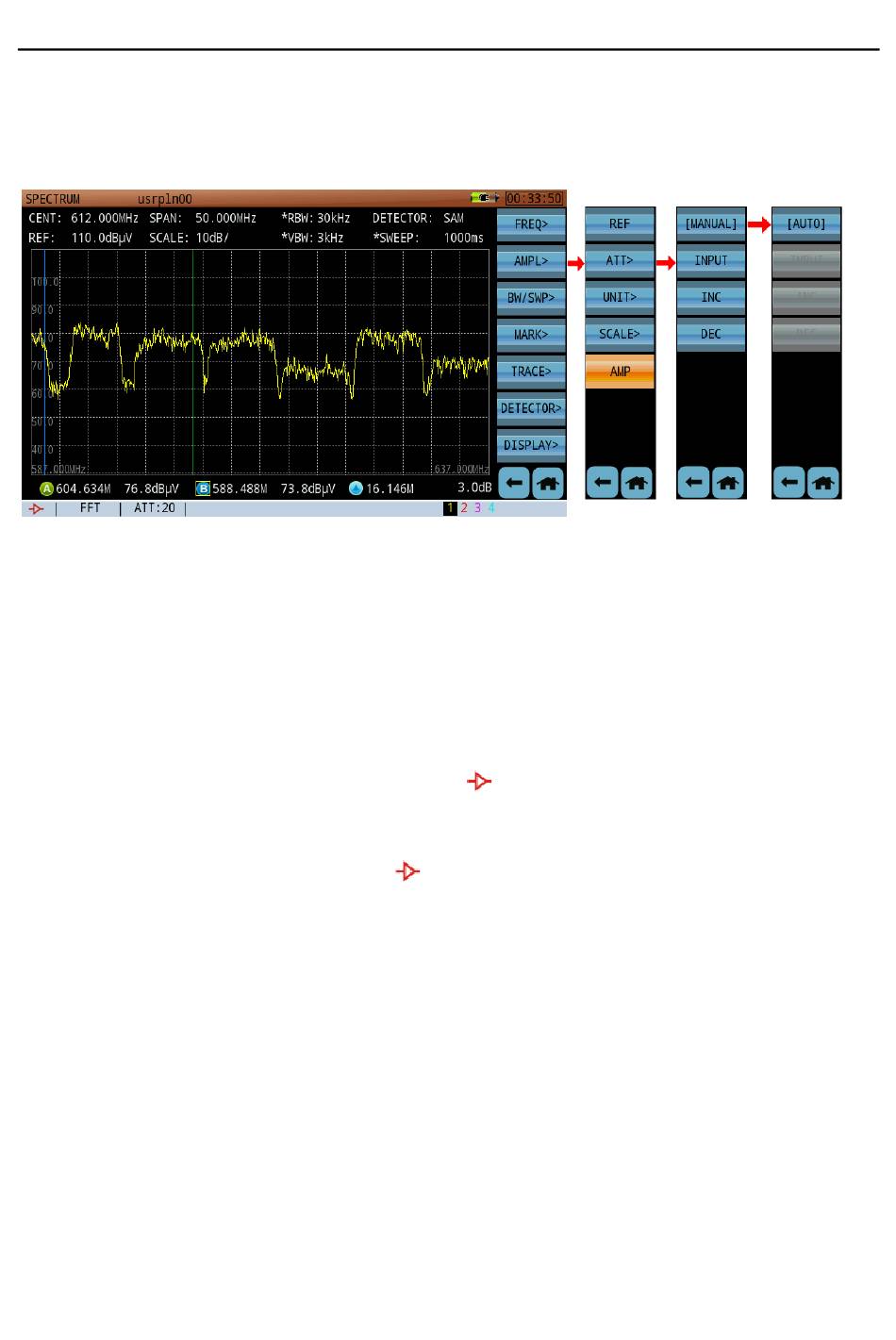

Figure 6-129 Snapshot: Amplitude Setting Menu - Attenuator
Setting up, enabling or disabling the pre-amplifier
Tap the soft button [AMPL>], then tap the soft button [AMP]. If the pre-amplifier
is currently off, tap the soft button [AMP] to highlight, turn on the amplifier. When
the –preamplifier is on, an amplifier icon will appear at the lower left corner
of the screen. To turn the pre-amplifier off, tap the soft button [AMP] again, the
amplifier will turn off and the icon will disappear.
Setting up the amplitude scale - dB/division
Tap the soft button [AMPL>] and then tap the soft button [Scale>] to open the
scale setting sub-menu. The default is 10dB/division. 1dB/2dB/5dB/10dB & 20dB
per division is selectable/available.
228
