Analog TV channel parameters:
Channel serial number: channel use number name display
Channel name:
Channel status:
Signal type:
System rate:
Frequency:
Video frequency:
Audio frequency:
TV standard:
Noise BW:
CNR mode:
CNR field:
CNR line:
S7200 TV Signal Analyzer Operation Manual

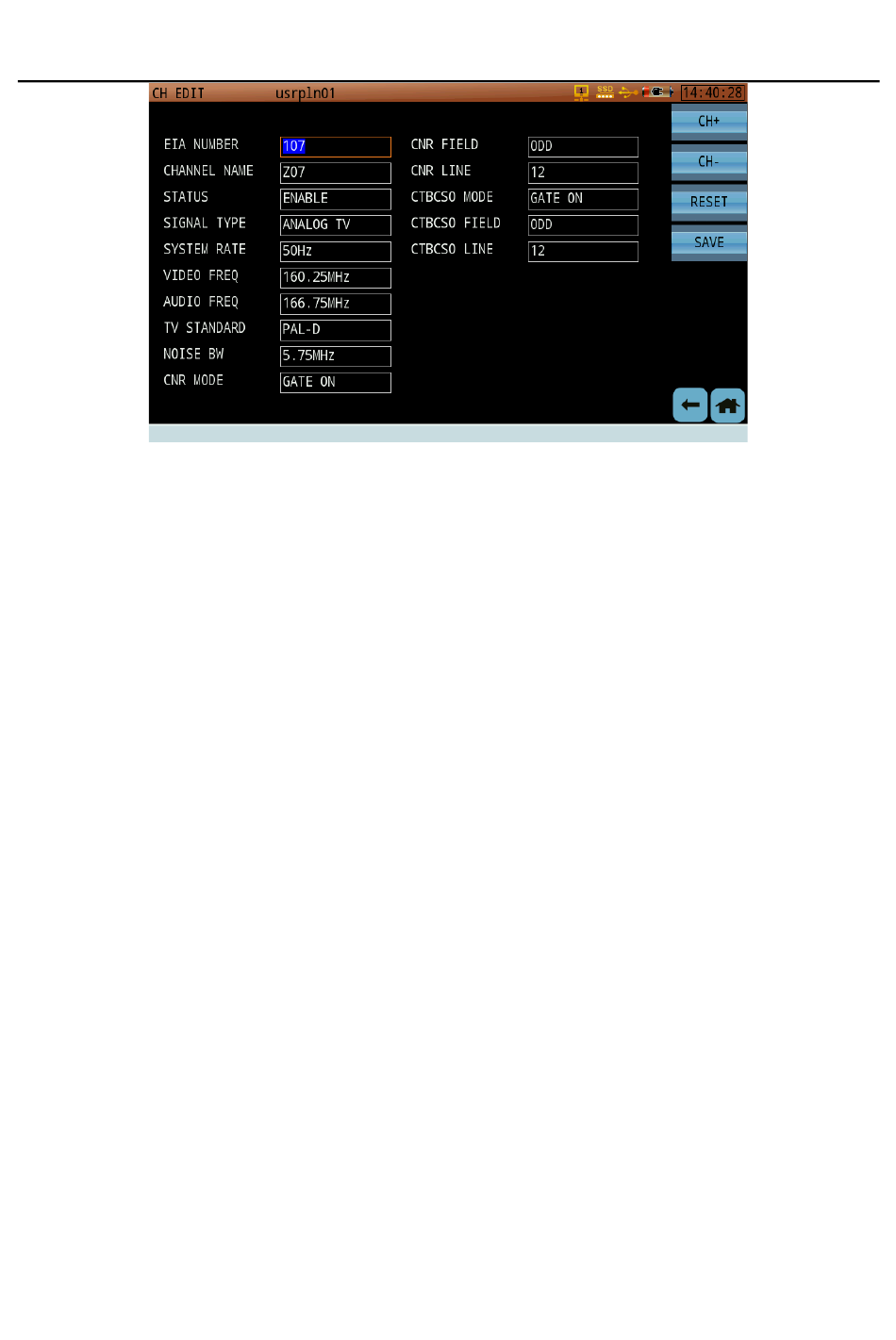

Figure 5-53 Edit Analog TV Channel Parameters
no option, editable content
ENABLE、DISABLE
ANALOG TV
50Hz, 60Hz
editable content
editable content
editable content
NTSC-M、PAL-B、PAL-D、PAL-G、PAL-H、PAL-I、PAL-K、
PAL-M、PAL-N
editable content
GATE OFF, GATE ON
ODD, EVEN
525 lines system: Field 1 (odd), line 1~263; Field 2 (even),
line 2~262
625 lines system: Field 1 (odd), line 1~313; Field 2 (even),
line 2~312
