6.15.4. Markers

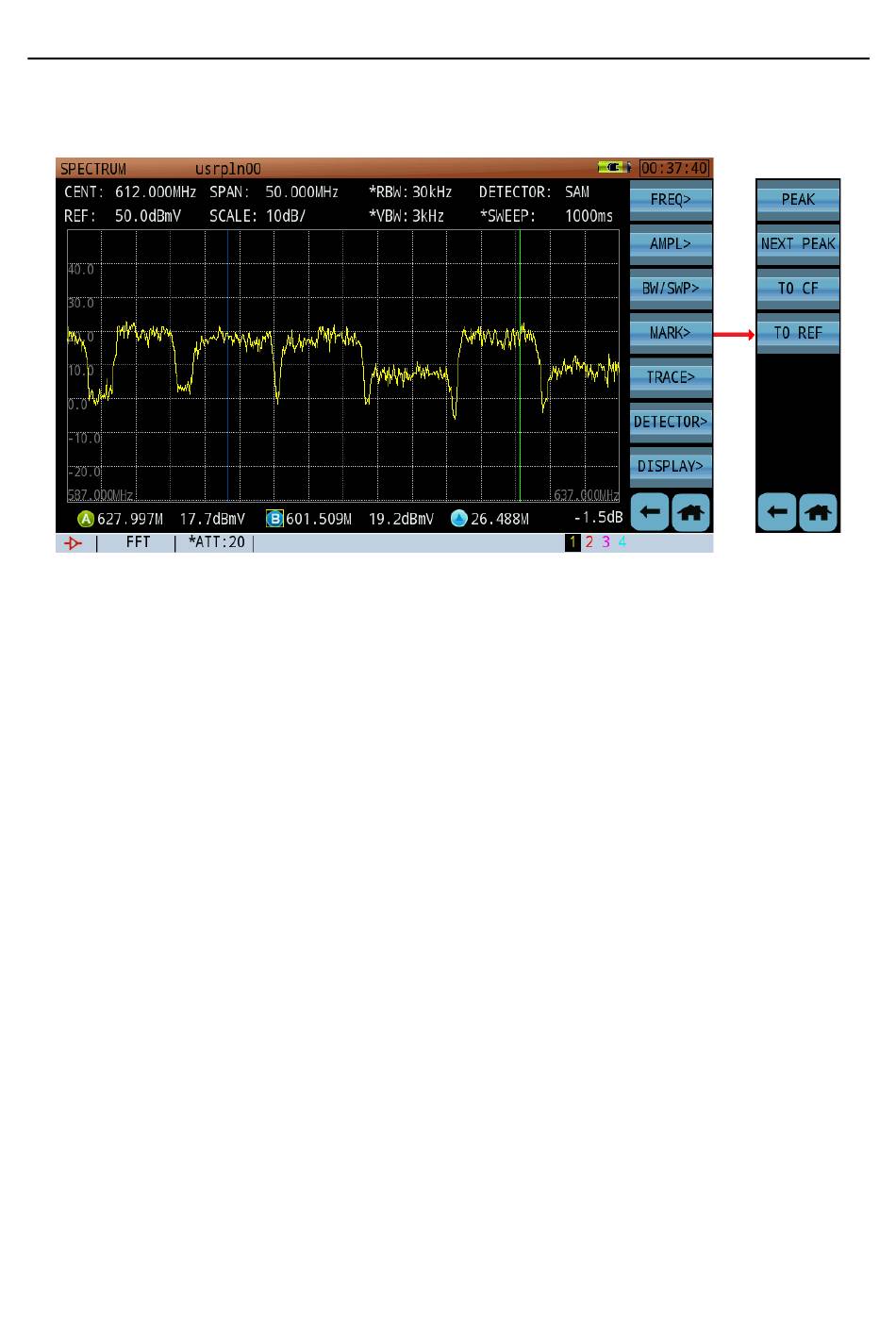

Figure 6-134 Marker Settings Menu
Marker function
The S7200 offers two markers; A and B. User can use finger directly operation
marker on the touch screen, please reference the section 4.1.5 to get the detailed
operation steps
Peak
To automatically find the highest peak level of the signal of the spectrum analyzer
curve on the screen, tap the soft button [Peak], as shown in Figure 6-135 below.
