S7200 TV Signal Analyzer Operation Manual

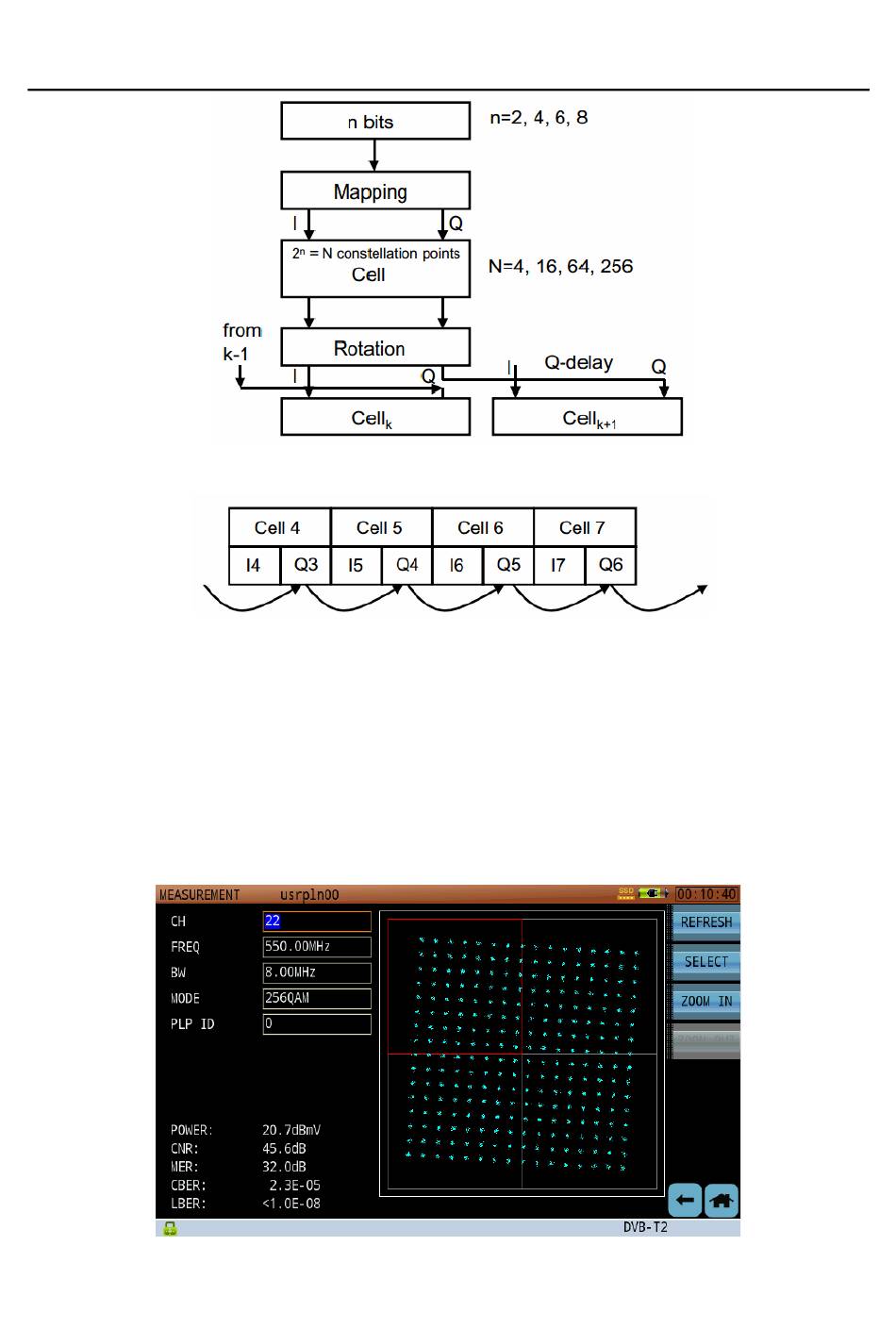

Figure 6-49 Mapping, rotation and Q delay
Figure 6-50 Cyclic Q delay between adjacent cells
The S7200 measures DVB-T2 rotated constellation shows in Figure 6-51. The
constellation only for PLP content. If DVB-T2 signal only include one PLP, user can
not change "PLP ID" parameter. If DVB-T2 signal include multi PLP, user can switch
parameter "PLP ID", the constellation also change with different PLP ID (If every
PLP has different modulation type).
Figure 6-51 DVB-T2 Constellation
163
