6.15.5. Trace Setting

The S7200 can display 4 traces simultaneously. The display settings are: max. hold,
min. hold, average and normal. Each trace is actively displayed on the screen,
individually or simultaneously, each with a different color, 1, 2, 3 or 4 traces at a
time. You can toggle in a circular way when tapping the first soft button repeatedly.
Tap the soft button [WRITE] to activate the desired trace, Tap the soft button
[BLANK] to deactivate and turn off the current trace. Each trace is identified at the
bottom right (1-2-3-4) to the left of the TP value. In any of the Spectrum Analysis
modes, the number highlighted in black at the bottom right is the active trace
which you have control on at that moment.

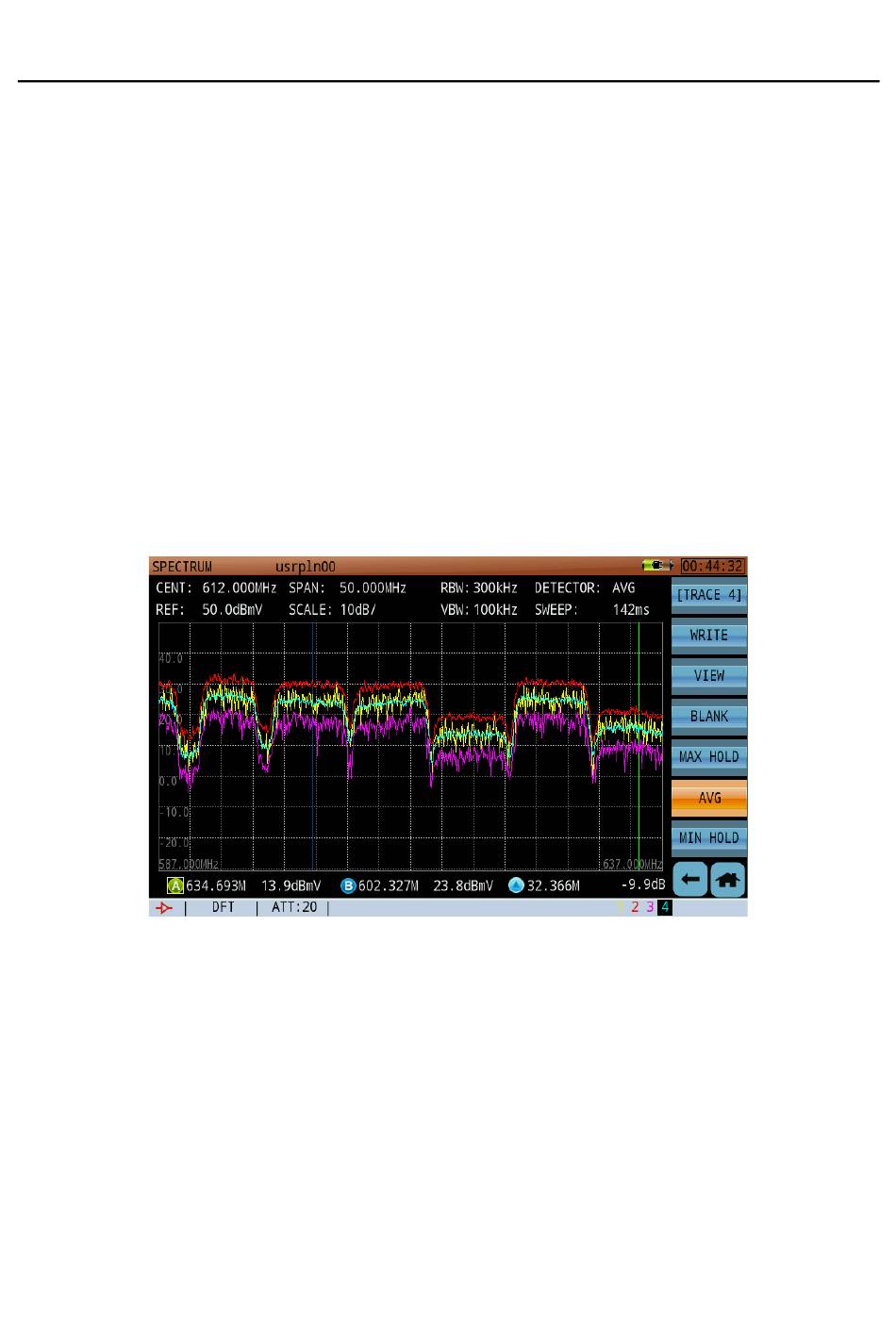

Figure 6-139 Snapshot : Four Traces Display Simultaneously
