S7200 TV Signal Analyzer Operation Manual

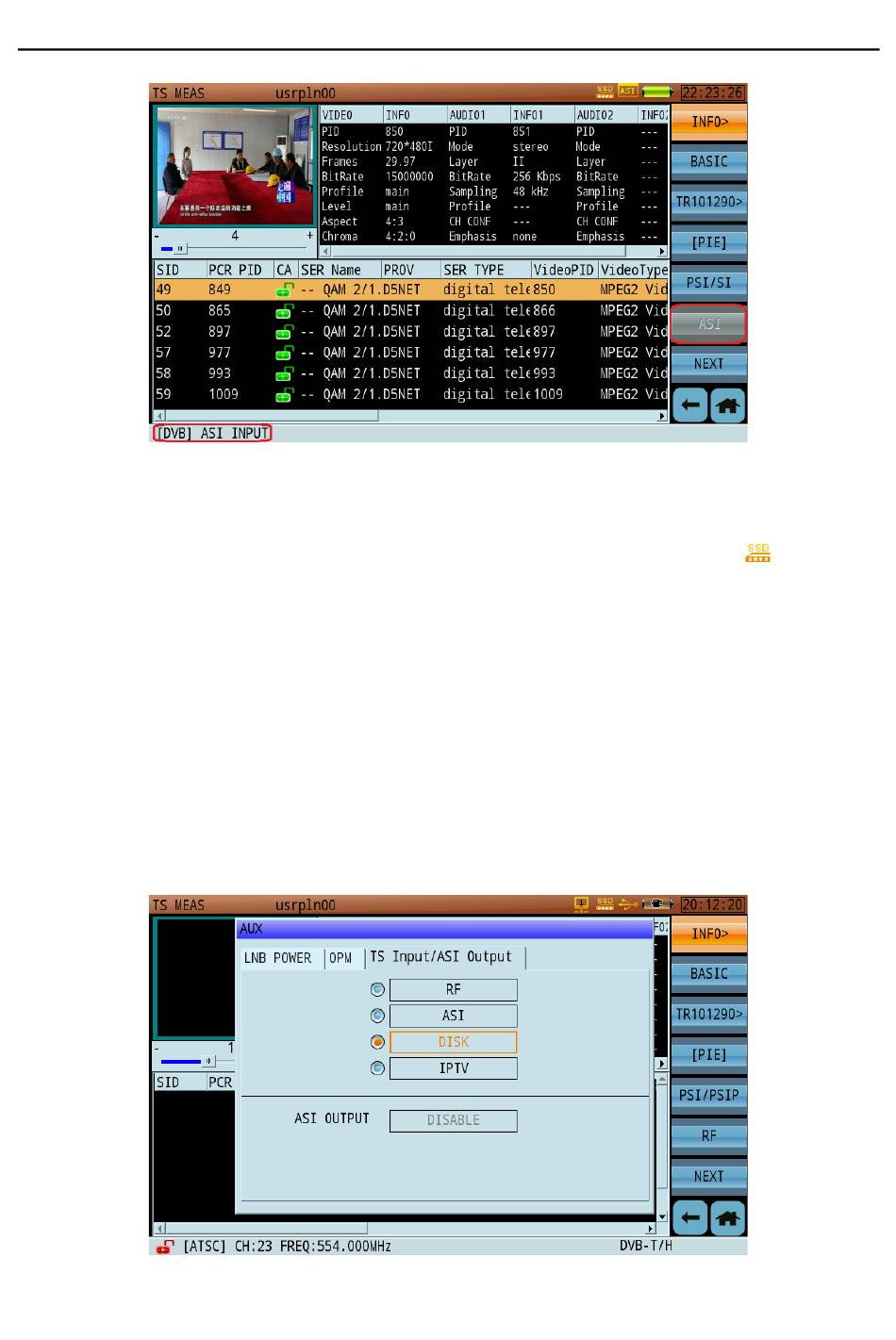

Figure 5-80 ASI Input Transport Stream does TS Analysis
DISK input: This option change the internal SATA SSD (Solid State Disk) or USB disk
as the transport stream source. When the title bar display the icon
, it means
this instrument already install SSD (option) and user can use SSD record and
playback TS file. User SSD or USB disk recorded TS file does TS analysis, operation
instruction steps as the Figure 5-81 and Figure 5-82 shows. First step setup TS
input port, second step enter TS analysis function press soft button [DISK] open
TS file operation interface. User can open the TS file from SSD or USB disk. When
TS analysis function work in DISK input mode, the test screen give the description,
as the Figure 5-83 show.
Figure 5-81 Transport Stream Input Control – DISK
