6.1.6. Tilt Measurement

To quickly measure the flatness of a CATV system and the gain of the splitters/taps,
select the tilt measurement. This feature measures quickly the level and power of
up to 16 channels.
Enter the Tilt function from the main menu -> Press the edit soft-key to set the tilt
channels. 4 channels minimum are required to enable this function.
There are 2 markers in the tilt measurement screen. Only the active marker is
being controlled. User can directly use finger operate marker. User need put the
finger on one marker, then swipe the finger to the left or right. The marker will
follow the finger move to different position, till user's finger stop on one position.
The 2 display modes in this function are either the bar graph or list. Tap the soft
button [[Graph]] or [[List]] to toggle between these two modes. The [Hold] button
is used to stop refreshing measurements. Tap it again to continue to refresh. The
[SETUP] button is used to select the channels for tilt measurement.

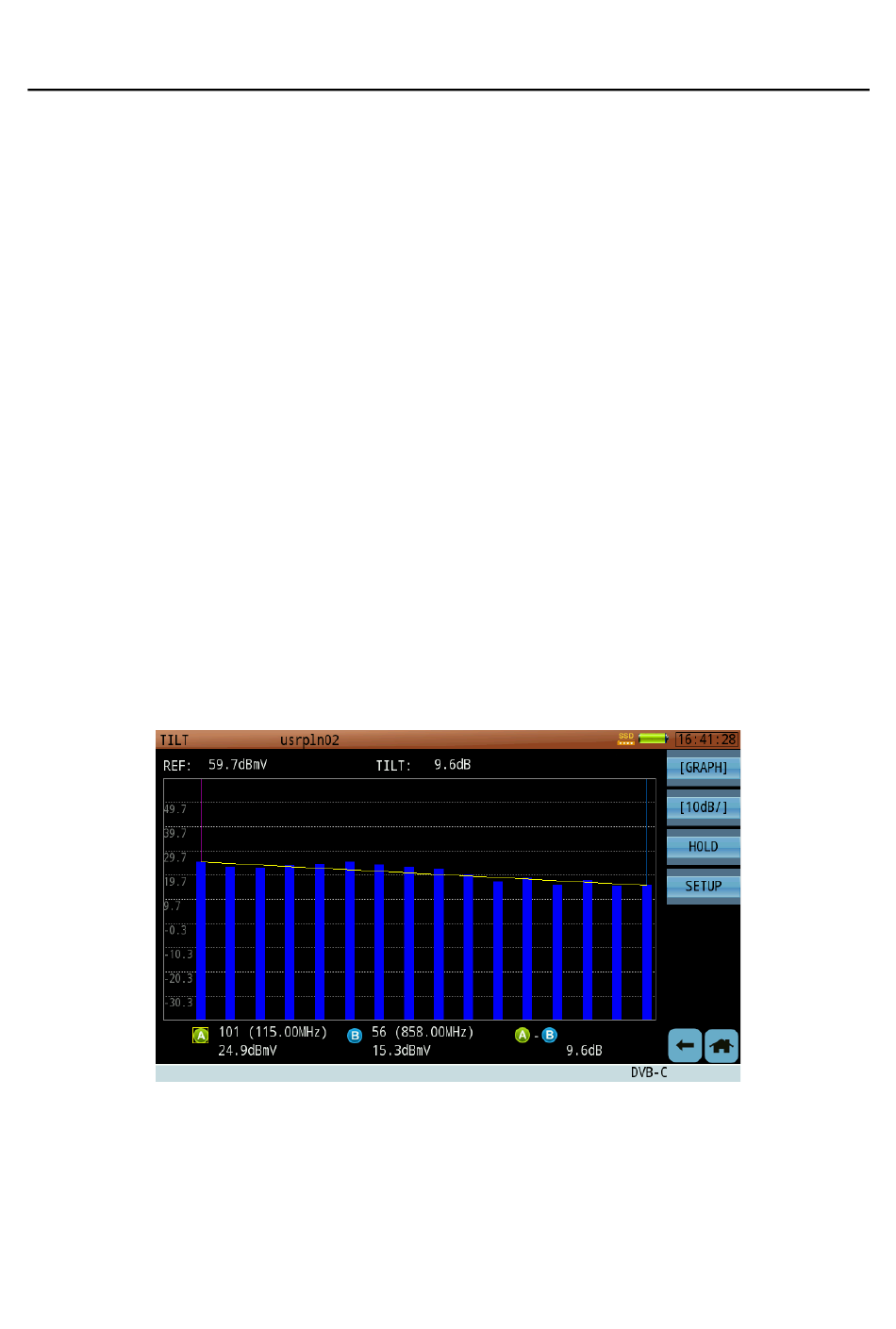

Figure 6-9 Tilt Measurement – Graph Display
