6.4.3. Constellation Diagram

The DVB-C constellation diagram function is shown below in Figure 6-21.

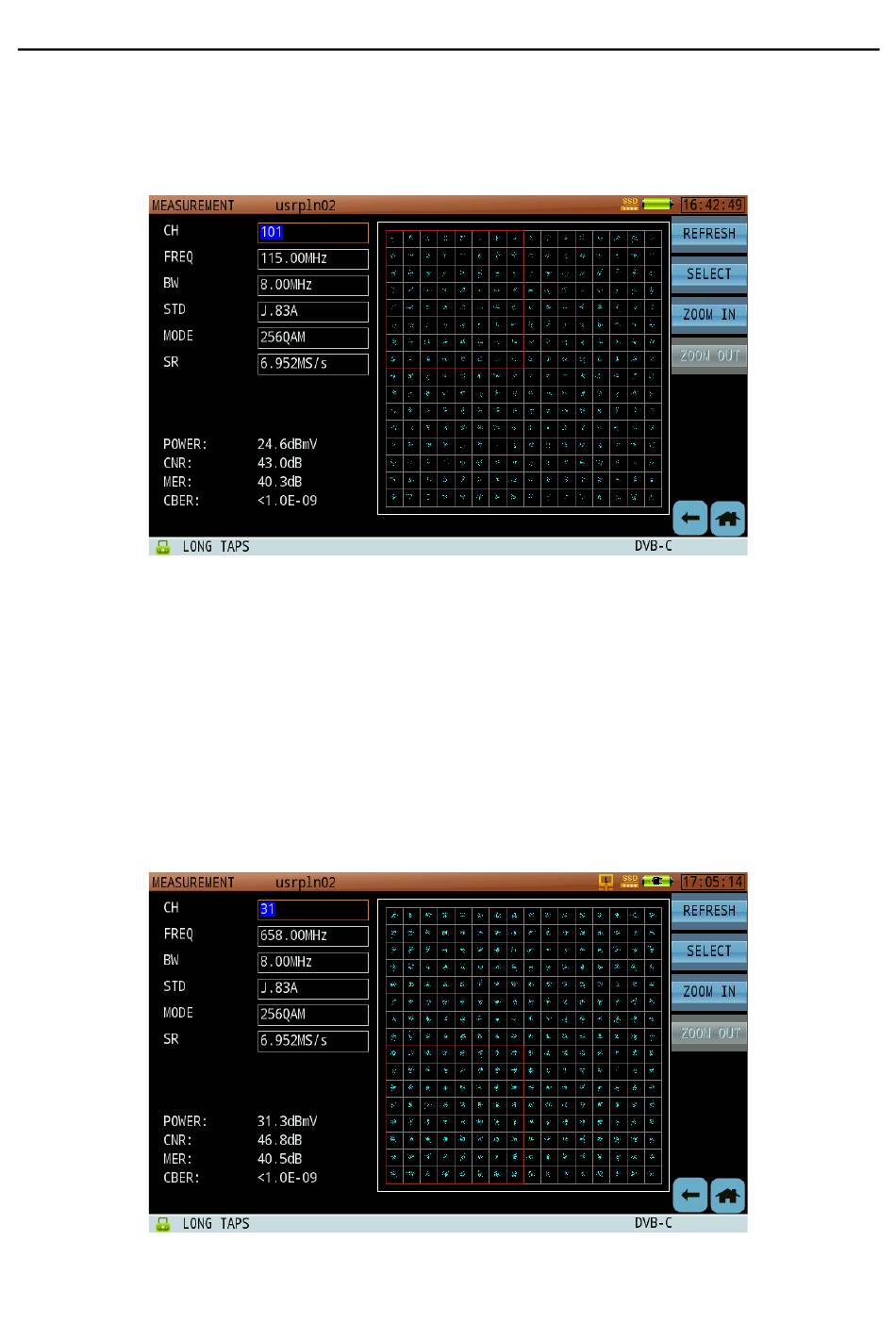

Figure 6-21 Constellation display
In power measurement function, tap the soft button [CONS>] to open the
constellation diagram interface. You can refresh and zoom the constellation. The
diagram zoom-in function will only zoom one of the four quadrant of the diagram.
The [Select] button is used to select the quadrant. After choosing the quadrant,
tap the soft button [Zoom IN], and the selected quadrant will then fully occupy
the screen. (as seen in Figure 6-23)
Figure 6-22 Constellation Zoom – select a Quadrant
