AD INSTRUMENTS S7200 TV Signal Analyzer Operation Manual

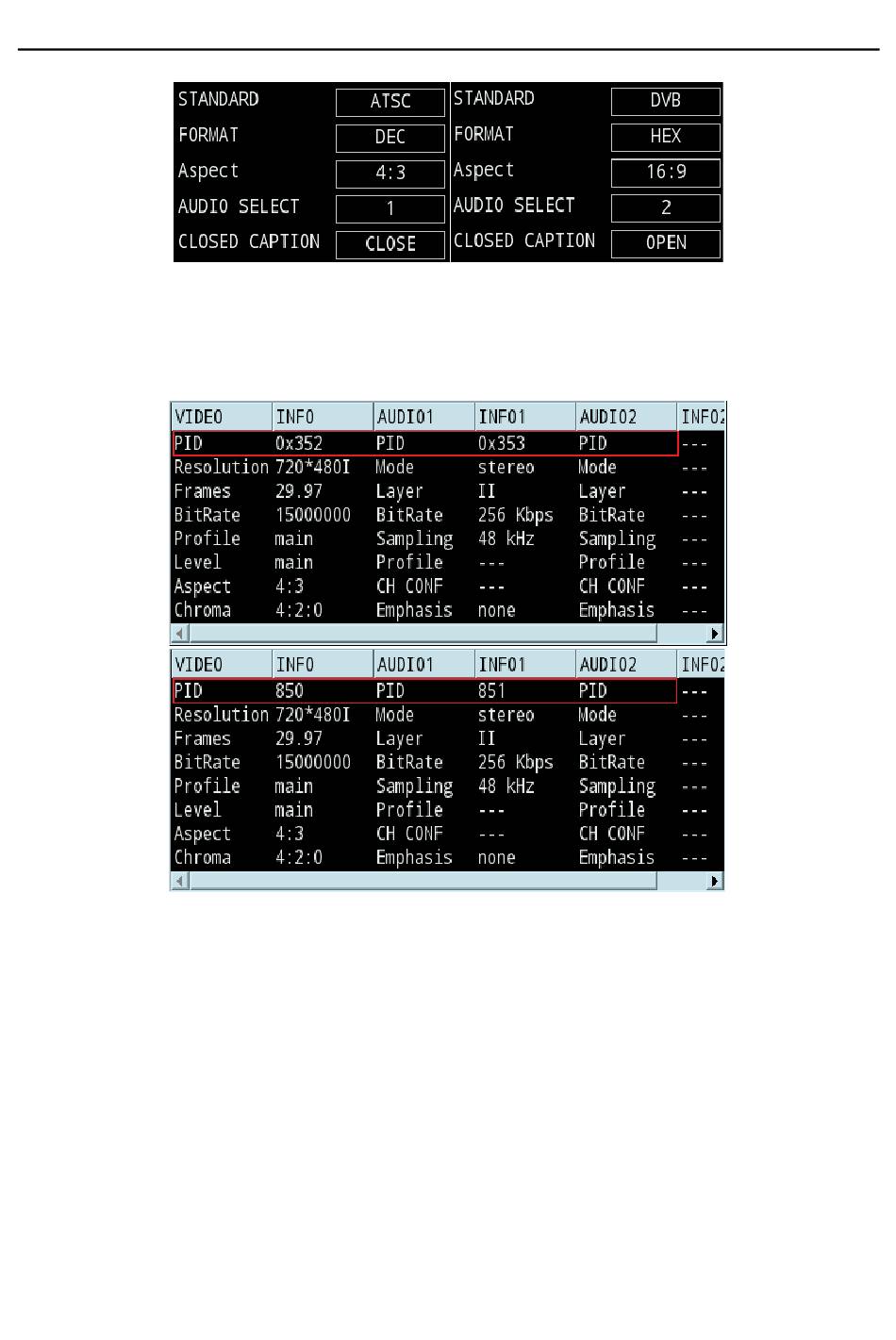

Figure 5-39 Transport Stream Parameters Setup Option
Data format has two options: Decimalism and hexadecimal. Figure 5-40 shows
Decimalism PID value is 850 and hexadecimal PID value is 0x352.
Figure 5-40 Decimal and hexadecimal PID Value Contrast
Image aspect ratio:
Image aspect ratio setup can independent of the image, same image can give
different aspect ration setting. The display effect is the image is stretched or
compressed.
Audio select:
If one transport stream include mulit audio channel for different language, user
can switch with different audio channels.
