ADInstruments S7200 Operation Manual page 55

AD INSTRUMENTS
The S7200 offers a WiFi hotspot configuration function, this function is used to
support an application program which connects to a mobile phone or tablet
computer. An engineer can use this App to allow the S7200 onto a public network
when he works in the field. If no good network connectivity is present, the field
engineer can use this function to complete the measurement task and upload
measurement results. We currently only support Android App on your mobile
devices, other devices will become compatible in future firmware releases.
Figure 5-8 shows WLAN hotspot setup parameters, which include:
SSID
Password
IP Address
S7200 TV Signal Analyzer Operation Manual

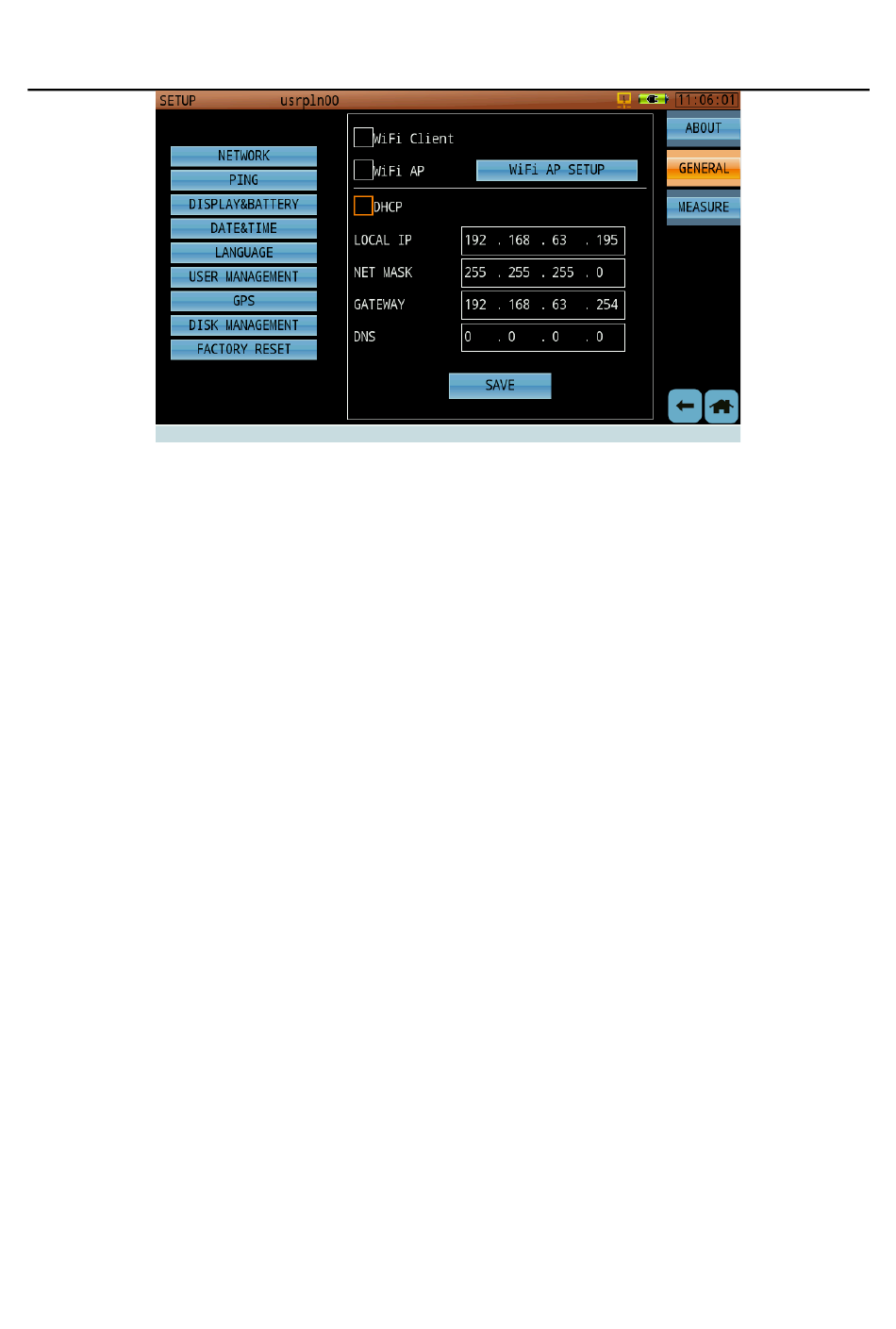

Figure 5-6 Network Configuration-Static
Service Set Identifier, the user selects the correct name
User defined
This is a fixed IP address, users can not modify it.
43
