S7200 TV Signal Analyzer Operation Manual

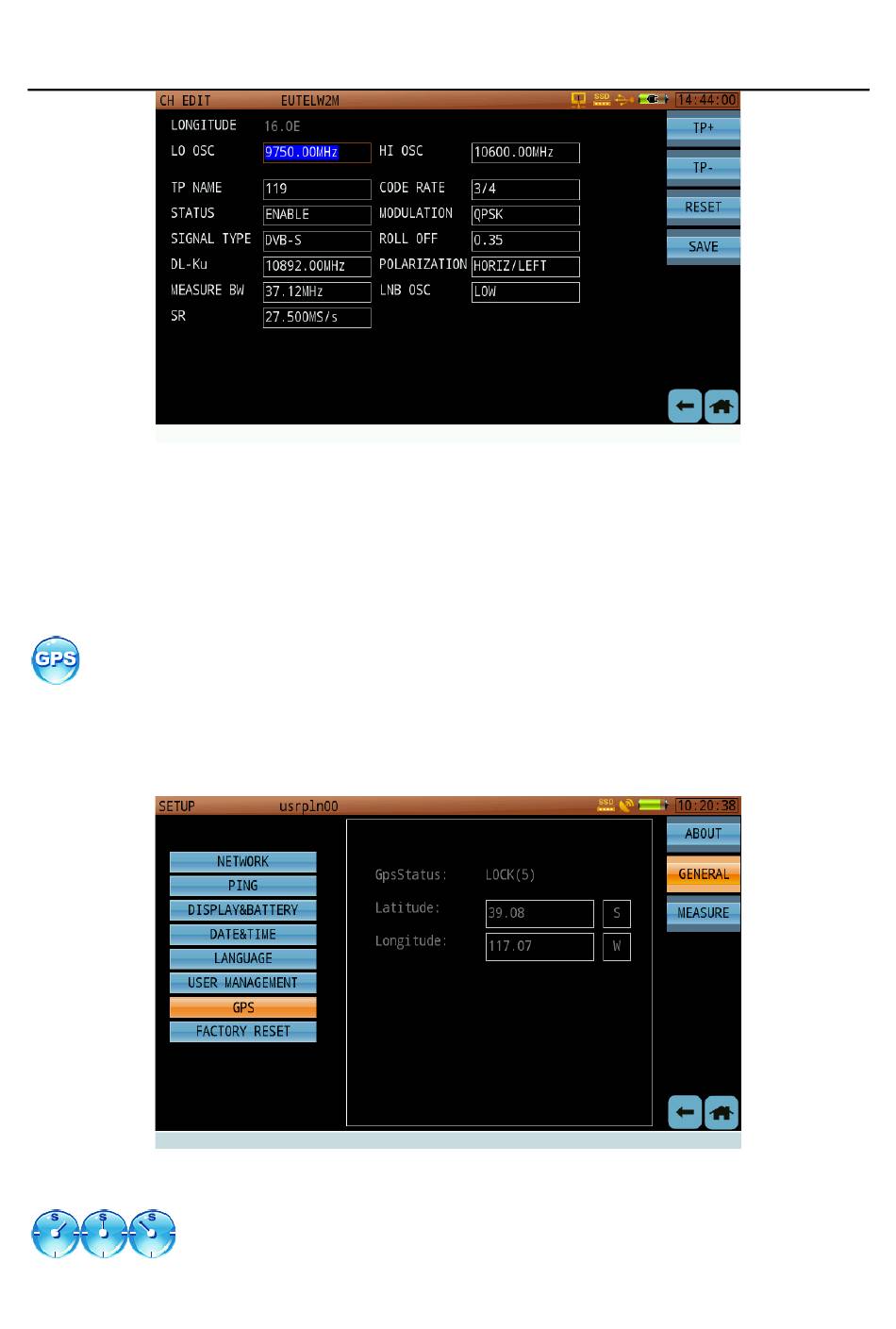

Figure 6-66 Satellite Transponder Setup Interface
If user finish choosing satellite and transponder, user need setup LNB power
supply according satellite parameters and local antenna condition.
For antenna installer, he need know the follow parameters:
Antenna position GPS information. S7200 provide GPS module option, user
can use the GPS module acquire local longitude and latitude or manually input
local longitude and latitude, the GPS information as the Figure 6-67 show.
Figure 6-67 GPS Setup Interface
Azimuth Angle (0 ~ 180 degree), it indicates the current horizontal
175
