AD INSTRUMENTS
(setup in the channel plan editor)
CCN gated measurement support the fellow TV standard
System and Standard
NTSC-M
PAL-M
PAL-B、D、G、H、I、K
PAL-N
Per frame 525 lines system: Field 1 (odd field), line 1-263; Field 2 (even field),
line2-262
Per frame 625 lines system: Field 1 (odd field), line 1- 313; Field 2 (even field),
line2- 312

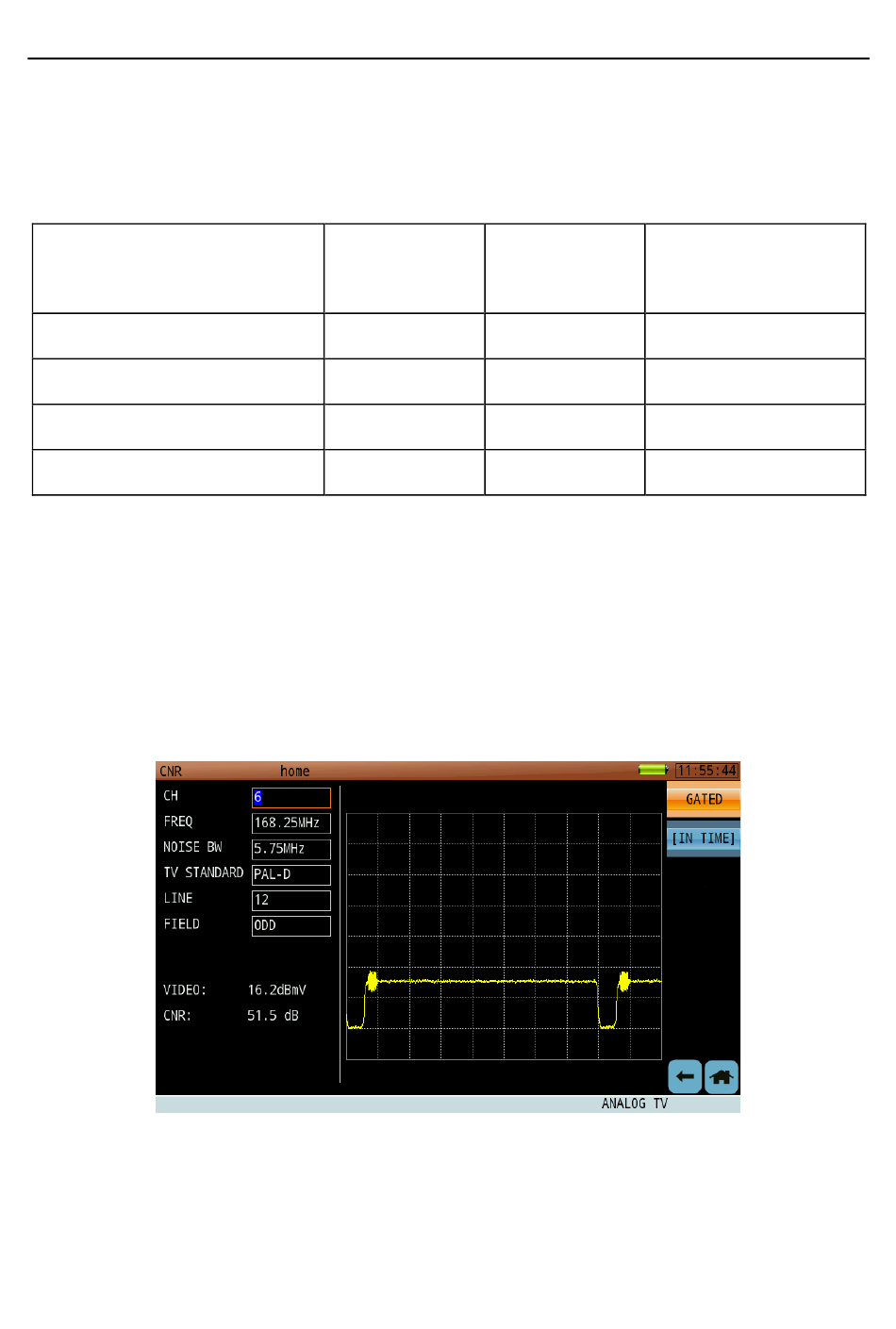

Figure 6-14 Snapshot: Gated CCN Measurement – Time Domain Waveform
130
S7200 TV Signal Analyzer Operation Manual
Line/Frame
Field
frequency
525
60Hz
525
60Hz
625
50Hz
625
50Hz
Color
encoding
technique
NTSC
NTSC
PAL
PAL
