4.1.5. Touch screen operation instruction

S7200 uses the capacitive touch screen. Before many operation must use the
button to do, now we can directly use finger on the capacitive touch screen to
operate. So many operation steps become very simple, the follow contents will
introduction the main touch screen operation.
User wants to open one function, he only need use the finger tap on the icon or
menu.

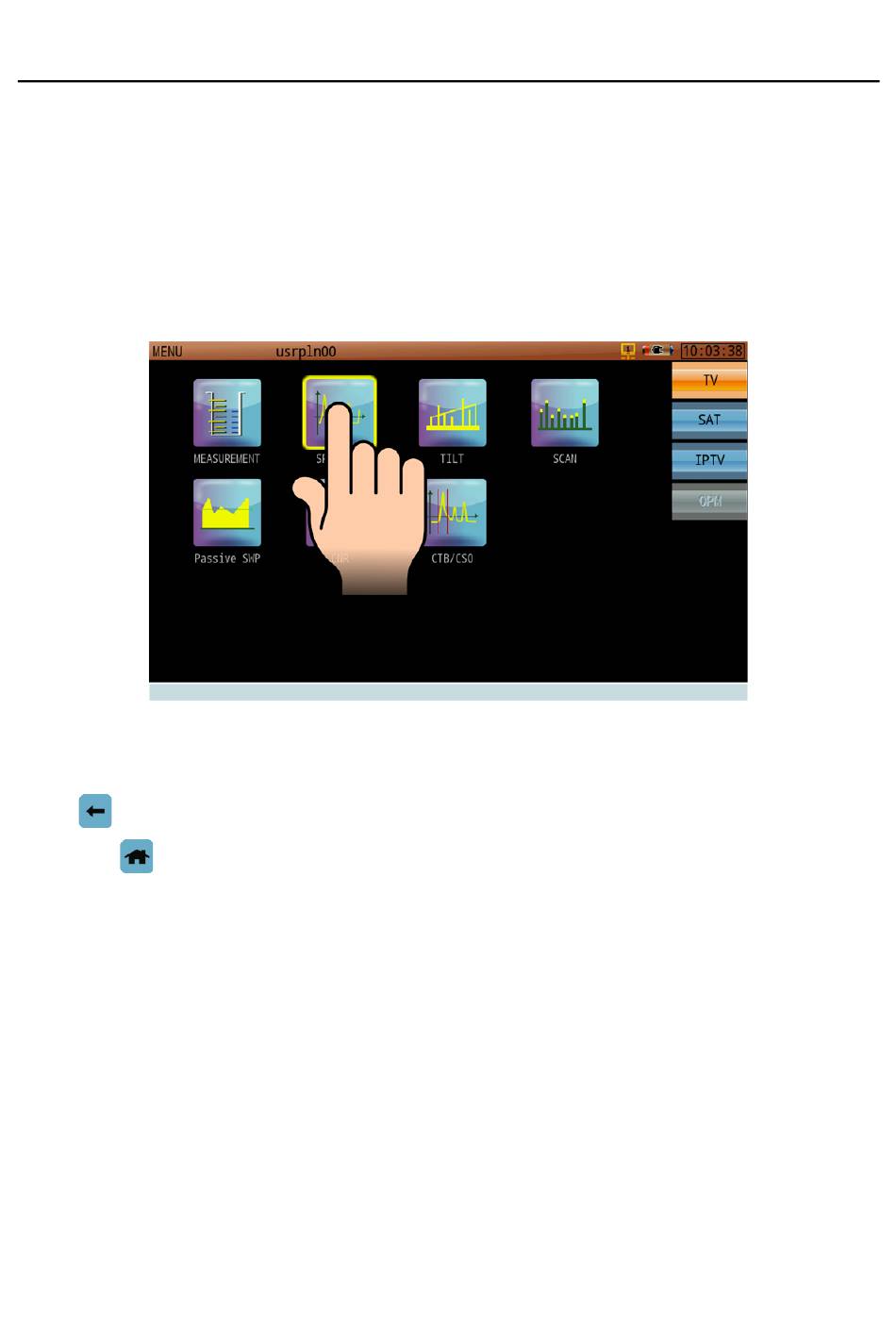

Figure 4-5 Touch Screen Operation-Open Measurement Function
From one function return to pervious menu or quit this function, user can tap the
icon on the touch screen. If user want to return to home page, he can tap
the icon , show as the Figure 4-6.
