AD INSTRUMENTS
S7200 TV Signal Analyzer Operation Manual

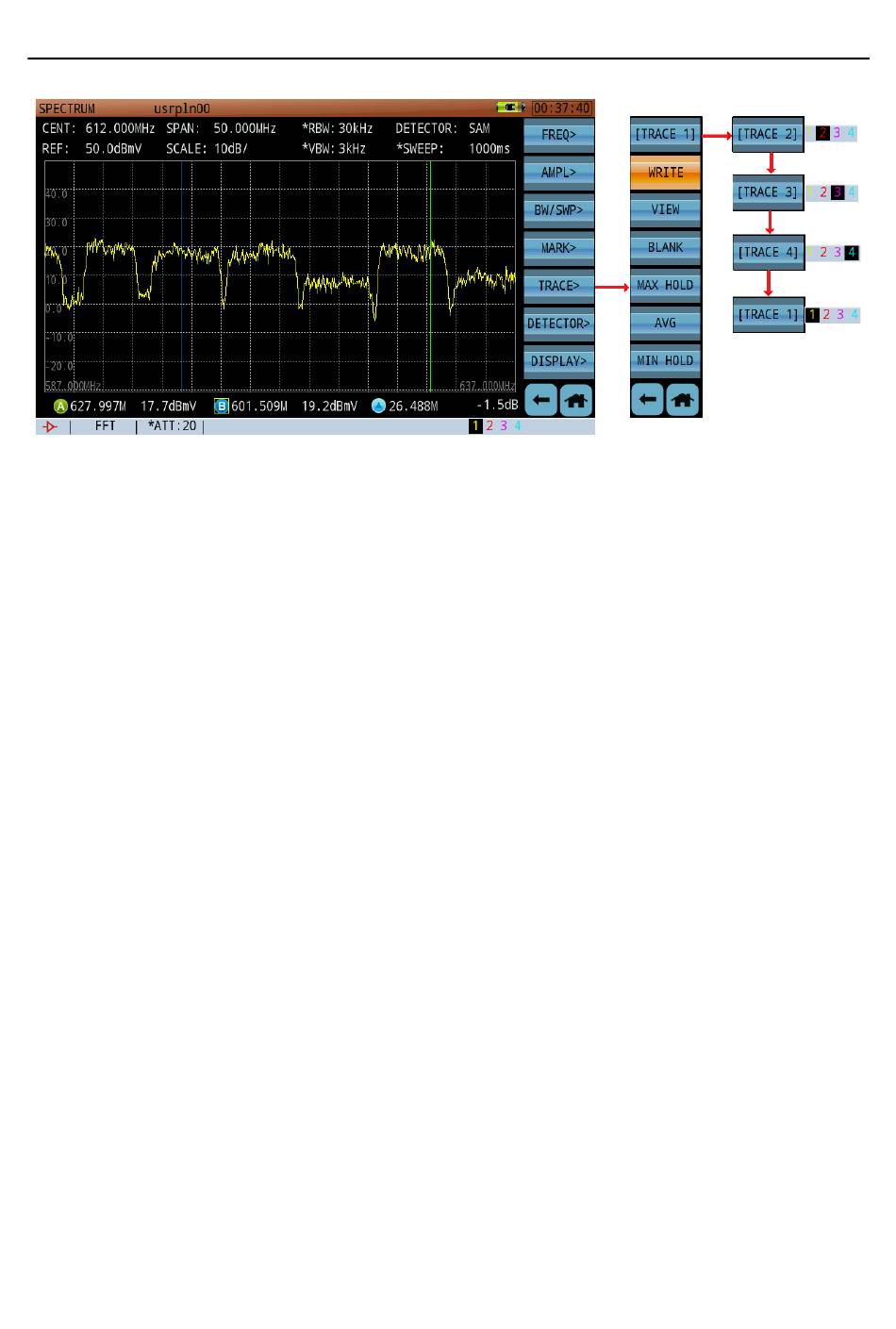

Figure 6-140 Snapshot : Trace Setting Menu
Max. hold trace
Tap the soft button [TRACE>] to enter the submenu, then tap the soft button [Max.
Hold] to activate the max. hold function.
Min. hold trace
Tap the soft button [TRACE>] to enter the submenu, then tap the soft button [Min.
Hold] to activate the min. hold function.
Average trace
Tap the soft button [TRACE>] to enter the submenu, then tap the soft button [AVG]
to activate the average trace function.
238
