6.11. Antenna Modify

Antenna modify interface or satellite find interface is use to quick and dynamic
display one one or multi tansponders signal strength and signal quality. This
function is convenient for user install or troubleshooting satellite and routine
maintenance. Antenna modify interface as the Figure 6-65 show.

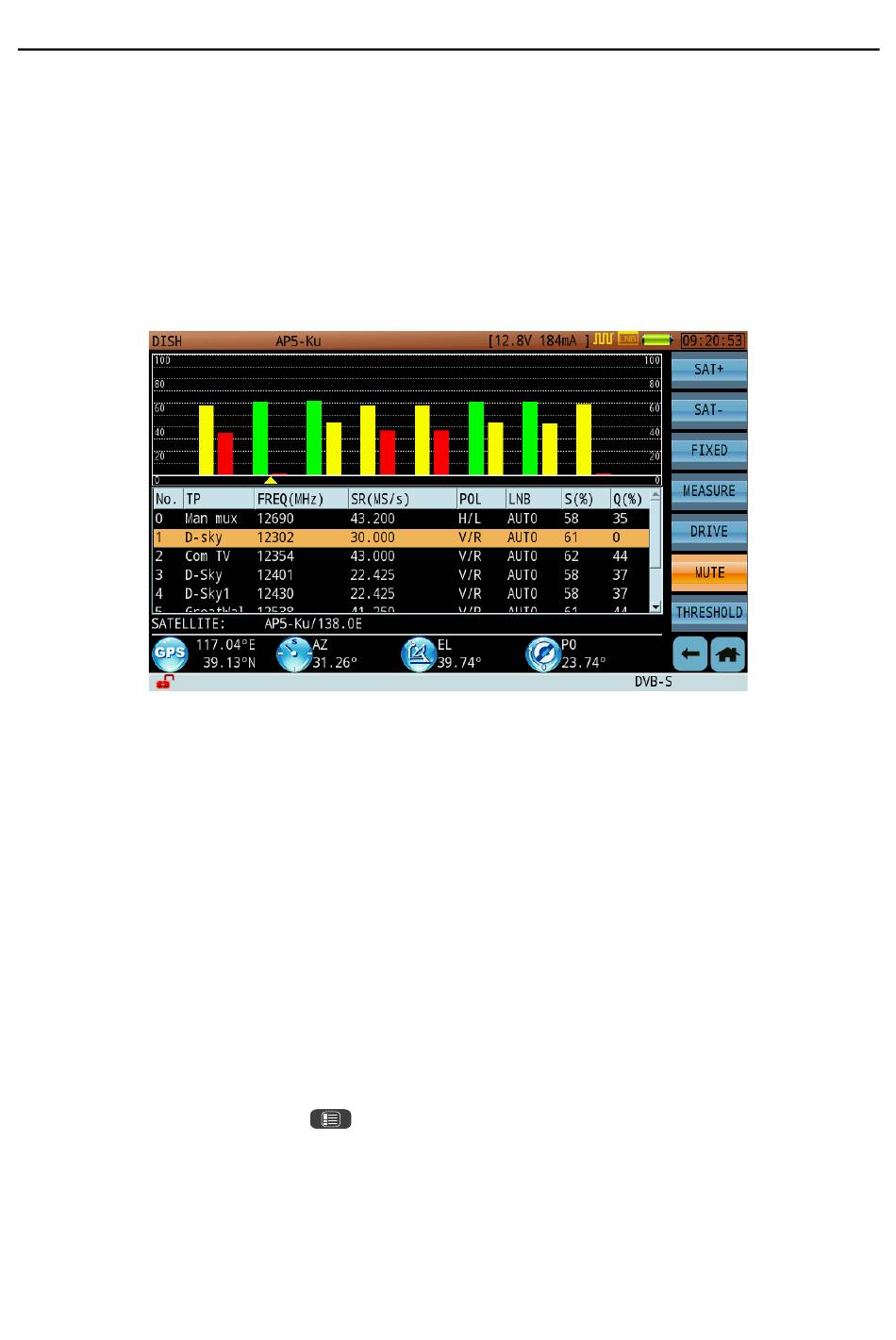

Figure 6-65 Antenna Modify Interface
Attention: This function support up to 10 active transponder to be list on the
screen. If the satellite's active transponder number more than ten, the program
automatic choose the top ten. If the satellite's active transponder number less
then ten, the program will display all active transponder.
This function is used to observe the satellite signal overall situation. So user can
switch satellite or the transponder on the satellite. Directly enter this function,
user first step is to choose one satellite, tap the soft buttons [SAT+] or [SAT-] to
switch satellite. Press the button, tap one transponder from transponder
list STA column to edit transponder valid or invalid status.
