- Page 1 User's Guide to the AD2Q02F Quad-wavelength Laser Source AD2Q02F English Version...
- Page 2 User's Guide to the AD2Q02F Quad-wavelength Laser Source...
-
Page 3: Table Of Contents
CONTENTS PAGE 1 Introduction ....1 2 Warranty ....2 2.1Three Years Limited Warranty ....2.2 Exclusions ....2.3 Returning Product ....2.4 Contact us ....3 Safety Information ....3 4 Preparing for Operation ....4 4.1 Unpacking the instrument ....4.2 Power Supply .... -
Page 4: Introduction

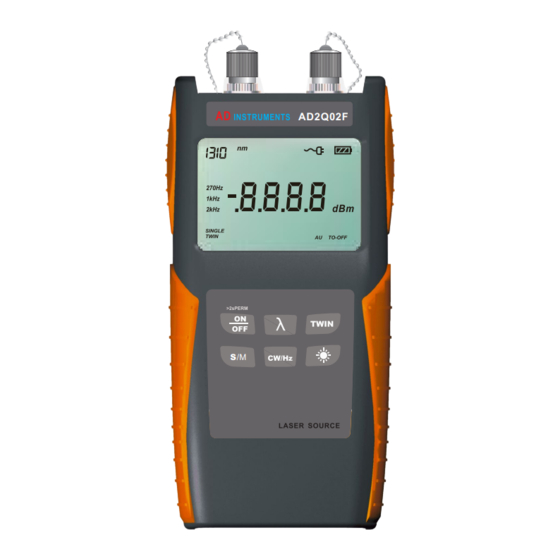

Two output connector serves four wavelengths 1310nm/1490nm/1550nm/1625nm. AD2Q02F can be used to test optical fiber of long distance and local network. Also it can work with optical power meter to measure the loss of optical fiber. -
Page 5: Warranty
AD2Q02F / Warranty 2.Warranty Three Years Limited Warranty Products are warranted against the defective components and workmanship for a period of three years from the date of delivery to the original customer. Any product found to be defective within the warranty period would be returned to authorized service center for repair, replacement and calibration. -
Page 6: Safety Information
AD2Q02F / Safety Information 3 Safety Information Warnings! Never look directly into optical outputs or a fiber while the equipment is on. Invisible laser beam may damage your eyes. Do not short-circuit the terminal of AC adapter / charger and the batteries. -
Page 7: Preparing For Operation
We suggest that you keep the original packing material. Using the original packing material is your guarantee of protecting the instrument during transit. Checking the package contents The standard accessories of AD2Q02F are as follows: Main unit(including battery) Carrying Case... -
Page 8: Power Supply
AD2Q02F / Preparing for Operation 4.2 Power Supply There are battery indicator and power plug on the screen to show the power supply. When you use the DC 6v charger, there is no battery indicator on the screen. When you do not connect the DC 6v charger, the adapter indicator will disappear on the screen. -
Page 9: Operation
AD2Q02F / Operation 5 Operation 5.1 Display and controls 5.1.1 Front(Panel Board) Function >2s PERM Switches Instrument on/off. Long keypress while powering on to activate the instrument without Auto-off function. SHIFT: Switch between Single Mode and Multimode Modulated Wavelength Shifting Key: Switches modulated wavelength CW/Hz and continuous wavelength. - Page 10 AD2Q02F / Operation 5.1.2 Back & top Connector 2 Connector 1(FC/PC,SC/PC,ST/PC) Battary Plate (including 2 units of AA recharging batteries) DC 6v power input Charging Signal light(Red light blinking means charging,Green light means charging finish). Standard Accessories: FC/PC, SC/PC, ST/PC interchangeable connector, Manual, Carrying Bag,...
- Page 11 AD2Q02F / Operation 5.1.3 LCD Wavelength DC Adapter Battery Charge 18 8 date Modulation 270Hz .8.8.8.8 Power 1kHz 2kHz Measurement Unit(dBm) Auto-wavelength Recognition SINGLE Auto-off TWIN AUTO-OFF...
- Page 12 AD2Q02F / Operation 5.3 Switching the wavelengths 5.3.1 Switching the wavelengths 1550 in the in the "Singlemode" SHIFT to "CH1", Press the then Press Key to switch the 13 10 wavelength between 1310nm, 1550nm and Off. .8.5.5.0 SINGLE AUTO-OFF...
-
Page 13: Turning The Instrument On And Off
AD2Q02F / Operation 5.2 Turning the instrument on and off 13 10 >2s PERM .8.5.5.0 Press the “ON/OFF” key briefly. The instrument powers on.(See the figure) Press the “ON/OFF” key briefly again. The instrument powers off. SINGLE AUTO-OFF Note: Auto-off function 1 The instrument powers off automatically if no key press in 10 minutes. -
Page 14: Switching The Wavelengths
AD2Q02F / Operation 5.3.2 Switching the wavelengths in the in the "CHANNEL 2 SM" 1300 SHIFT to "CH2", Press the then Press Key to switch the wavelength between 1490nm, 1625nm and Off. .8.5.5.0 SINGLE AUTO-OFF... -
Page 15: Frequency Output
AD2Q02F / Operation 5.4 Frequency Output 13 10 2kHz CW/Hz .8.5.5.0 270Hz 1kHz The instrument defaults to CW when it SINGLE AUTO-OFF switch on. When it is set to CW, there is no frequency on display. Press the "CW/Hz" Key to select the output among 270Hz, 1kHz and 2kHz. -
Page 16: Auto-Wavelength Recognition
AD2Q02F / Operation 5.5 Auto-wavelength Recognition TWIN Press the "TWIN" Key to tun on and off the auto-wavelength recognition function. -
Page 17: Switching Backlighting Of The Lcd On And Off
AD2Q02F / Operation 5.6 Switching backlighting of the LCD on and off Press the backlighting Key to switch the backlighting of the LCD on and off. 13 10 13 10 SINGLE SINGLE AUTO-OFF AUTO-OFF... -
Page 18: Connecting With Optical Power Meter
AD2Q02F / Operation 5.7 Connecting with Optical Power Meter It can work with optical power meter to measure the loss of optical fiber accurately. AD2Q02F LPM-4 series AD2A04 series 1888 .8.8.8.8 270Hz 1kHz 2kHz AUTO-OFF... -
Page 19: Specifications
AD2Q02F / Specifications 6 Specifications Optical Specifications Model AD2Q02F 1310/1490/1550/1625 Output wavelength (nm) Ι Class Laser 3nm typical value Spectral Width ± ± 0.05dB/15min 0.1dB/5hr Stability (15 min preheat @ 25℃) -5.0dBm±1dB CW output power 270Hz,1kHz,2kHz Modulated Wavelength FC/PC,SC/PC,ST/PC Interchangeable connectors... - Page 20 AD2Q02F / Specifications General Specifications Operation Temperature -10 C~+50 C Storage Temperature -20 C~+70 C Humidity <90% Size(H×W×D) 160mm×76mm×45mm 0.27 kg(including batteries) Weight...
-
Page 21: Maintenance
AD2Q02F / Maintenance 7 Maintenance Please disconnect the DC adapter/charger and cover the protective dust cap once you finish using. It is a good idea to clean the connector and the instrument when they get dirty through use. Optical cleaning pads and anhydrous alcohol is recommended. -
Page 22: Trouble Shooting
AD2Q02F / Trouble shooting 8 Trouble shooting Malfunction Type Possible Cause Recommended solution Remarks Failure to turn on/off No power input Plug in battery or AC DIY Available Battery exhausted Charge battery DIY Available Reverse-installed battery Re-install battery DIY Available...
