6.15. Forward Spectrum Analysis

The spectrum frequency band of the S7200 covers cable, terrestrial and satellite
frequency bands. You will find below settings instructions for the spectrum
analysis functions. The spectrum analysis function is one of the primary, basic and
most powerful functions of the S7200. In the spectrum analysis mode, user can
directly use finger operate the touch screen, user also can use button to operation
the spectrum analyzsis function. The detailed touch screen operation steps, user
can reference section 4.1.5 content.
Spectrum analysis menu description
In main menu, tap the spectrum icon to confirm the spectrum analysis function
main menu selection, shown in the below Figure 6-127.

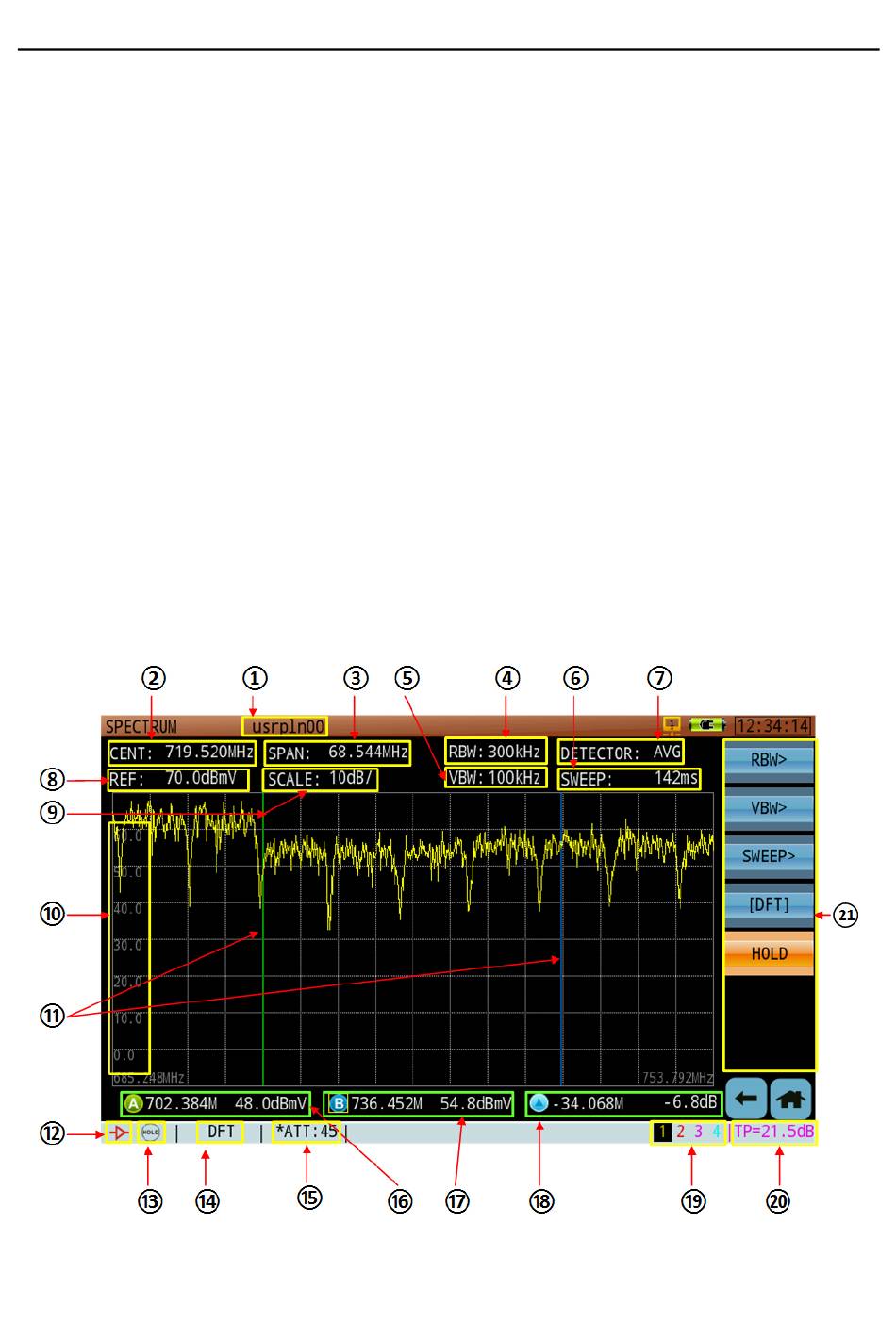

Figure 6-127 Snapshot: Spectrum Analysis Screen Elements Instruction
