5.6.5. Transport Stream Input Control

S7200 has four types transport stream input types: RF, ASI, DISK, IPTV.
RF input : The cable, terrestrial and satellite signal from the RF input port enter
instrument. The transport stream is demodulated from the RF signal, then enter
TS analysis module. The Figure 5-76 shows the setup interface. When instrument
TS analysis function work in RF input mode, the interface give the description, as
the Figure 5-77 show. The Figure 5-78 shows how to setup RF parameters in TS
analysis mode.

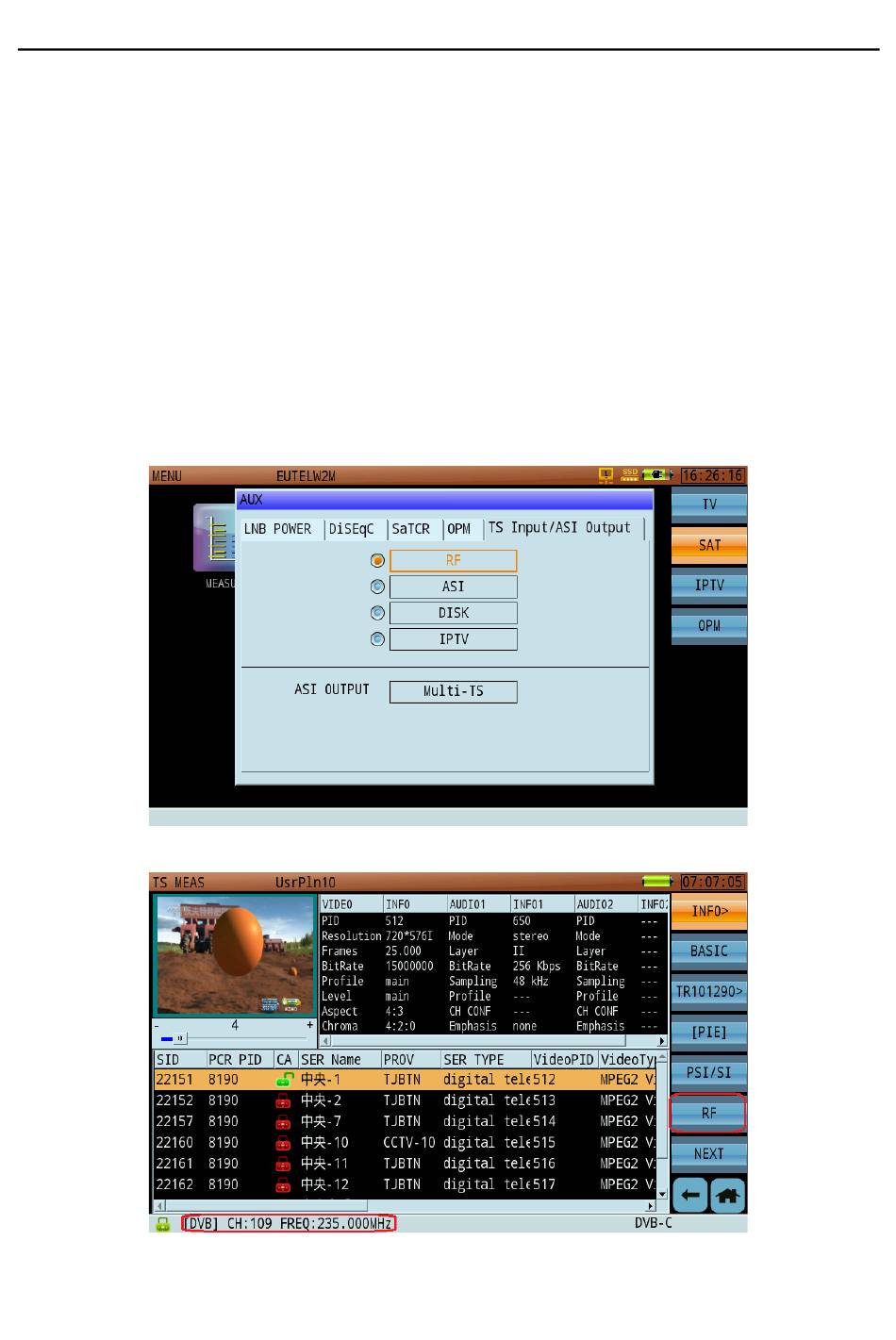

Figure 5-76 Transport Stream Input Control – RF Input
Figure 5-77 RF Input Transport Stream does TS Analysis
