ATSC channel parameters option:
Channel serial number: channel use number name display
Channel name:
Channel status:
Signal type:
System rate:
Frequency:
Measure BW:
STD:
Modulation:
Symbol rate:
When moving from one channel to the other using the [CH+] and [CH-] soft keys
or quiting from this function, a pop-up window will ask: "Do you want to save the
changes? The user must choose OK to save changes or choose CANCEL to quit this
function without saving.
More channel plan templates are available in the S7200 Toolbox software. Our
company may be able to write customer specific channel plans upon request.
84
S7200 TV Signal Analyzer Operation Manual

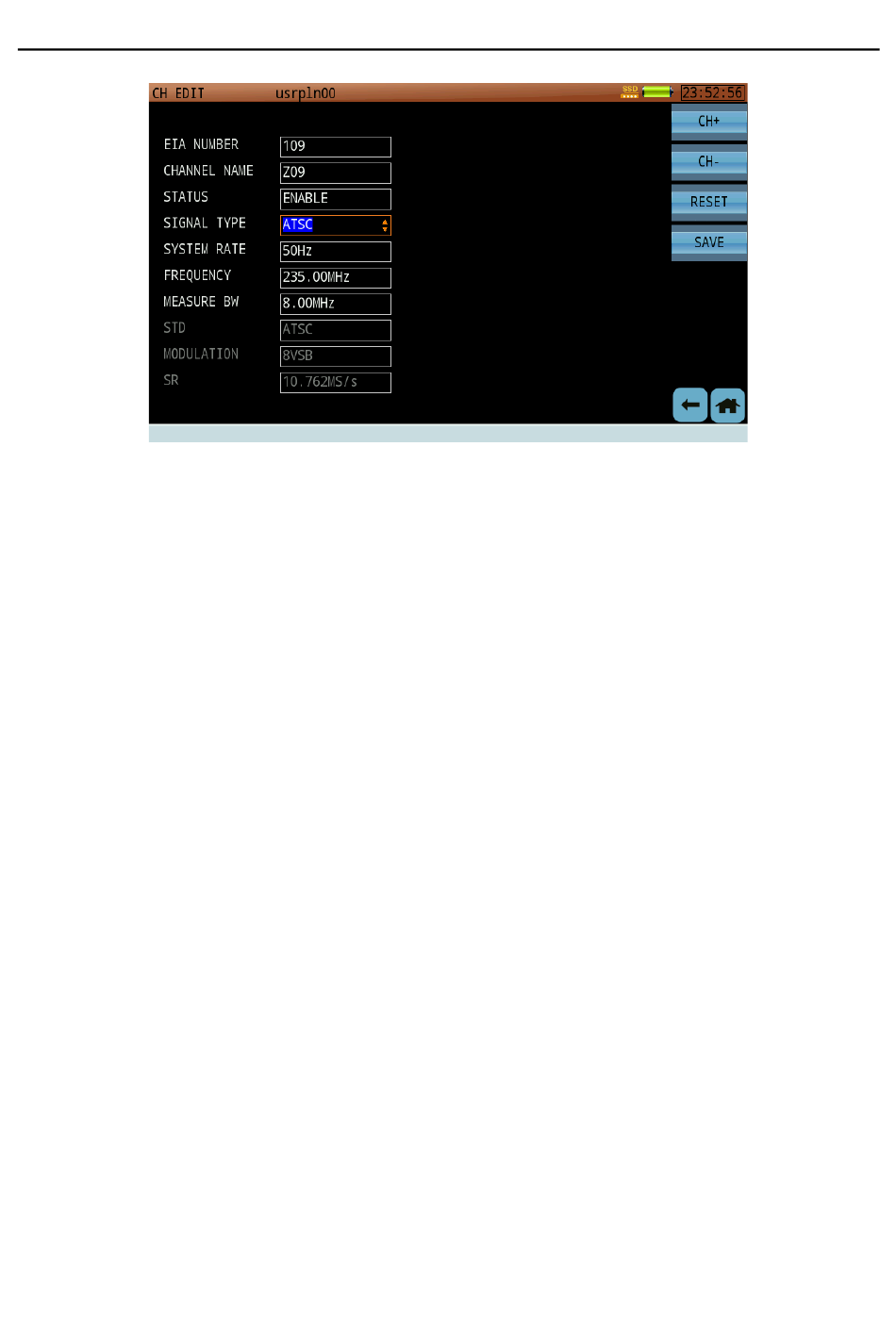

Figure 5-58 Edit ATSC Channel Parameters
no option, editable content
ENABLE、DISABLE
ATSC
50Hz, 60Hz
no option, editable content
no option, editable content
ATSC
8VSB
10.762MS/s
