6.15.1. Frequency Setting

Tap the [FREQ>] soft button to enter the frequency menu. Then tap different
soft buttons again to access any of the submenu as the Figure 6-128 show. You
can input the center frequency through the numerical keypad (available
resolution of 1KHz) and adjust the center frequency with the and
arrow keys or directly tap the parameter's position, directly use the popup virtual
keyboard input center frequency value. (selectable frequency between 4-
1220MHz) The default frequency step is 10MHz but can be manually changed to
any of the following; 100kHz, 250kHz, 1MHz, 50MHz, 100MHz and CH (based on
active channels in the active channel plan).

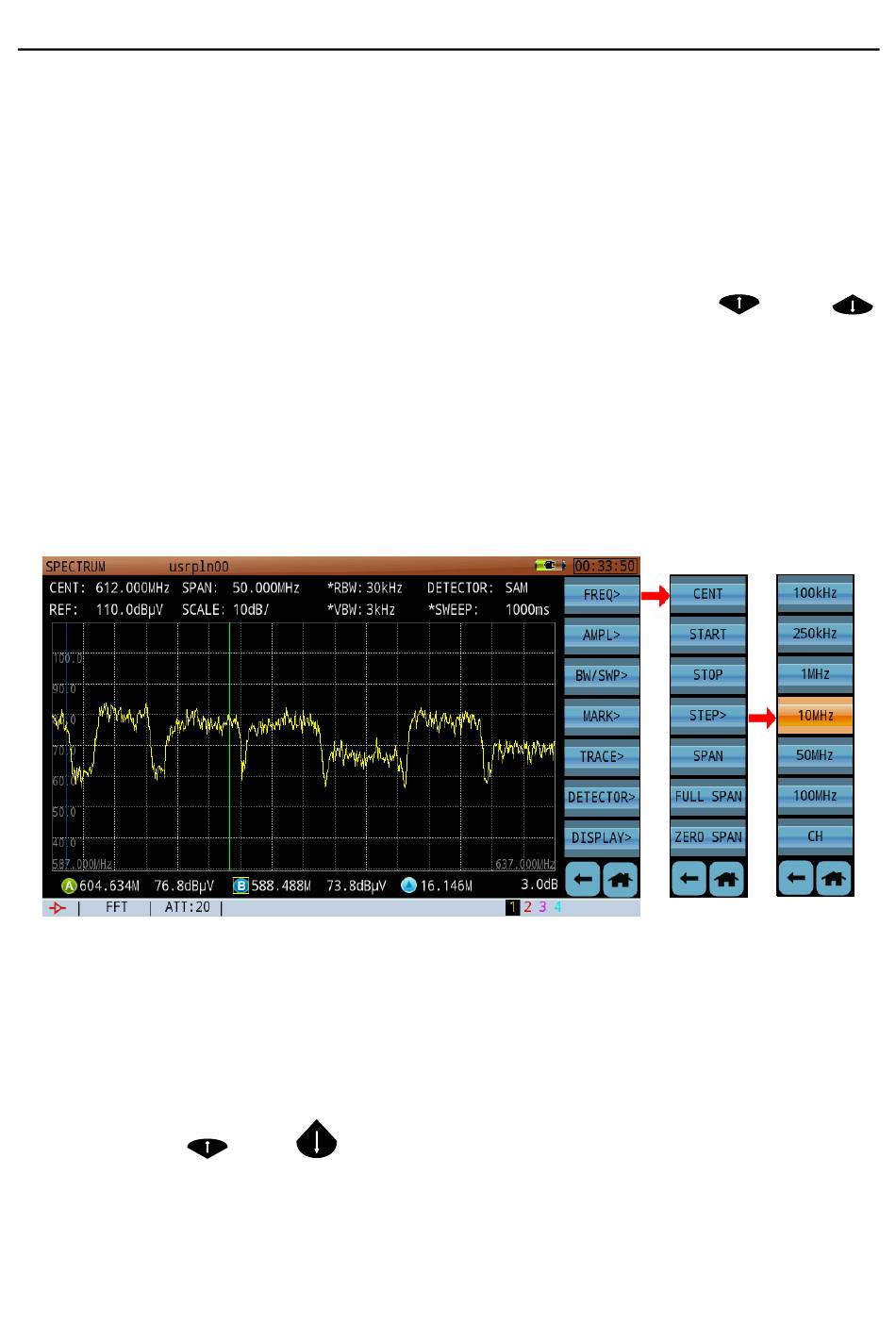

Figure 6-128 Snapshot: Frequency and Span Setting Menu
Span Setting
In the same sub menu for Frequency, tapping the soft button [Span] allows you to
set the span with the numerical keypad, accuracy = 1KHz. You can also adjust the
Span with the and arrow keys, (steps of 10MHz) or directly tap the
parameter's position and use virtual keyboard input value. (Max span range is
0MHz to 1216MHz). The span can also be set automatically by dialing in the
