CVM-C11
5�4�- HARMONICS
The device can display the voltage and current harmonics, up to the 31st order harmonic, for each one
of the lines, L1, L2 and L3.
The display of these can be deactivated using the programming menu (
"6.20.- ACTIVATING THE HAR-
).
MONICS DISPLAY SCREEN."
The harmonics display screens are displayed in the Analyzer and User operating profiles, by pressing
the
key after the last screen of the profile.

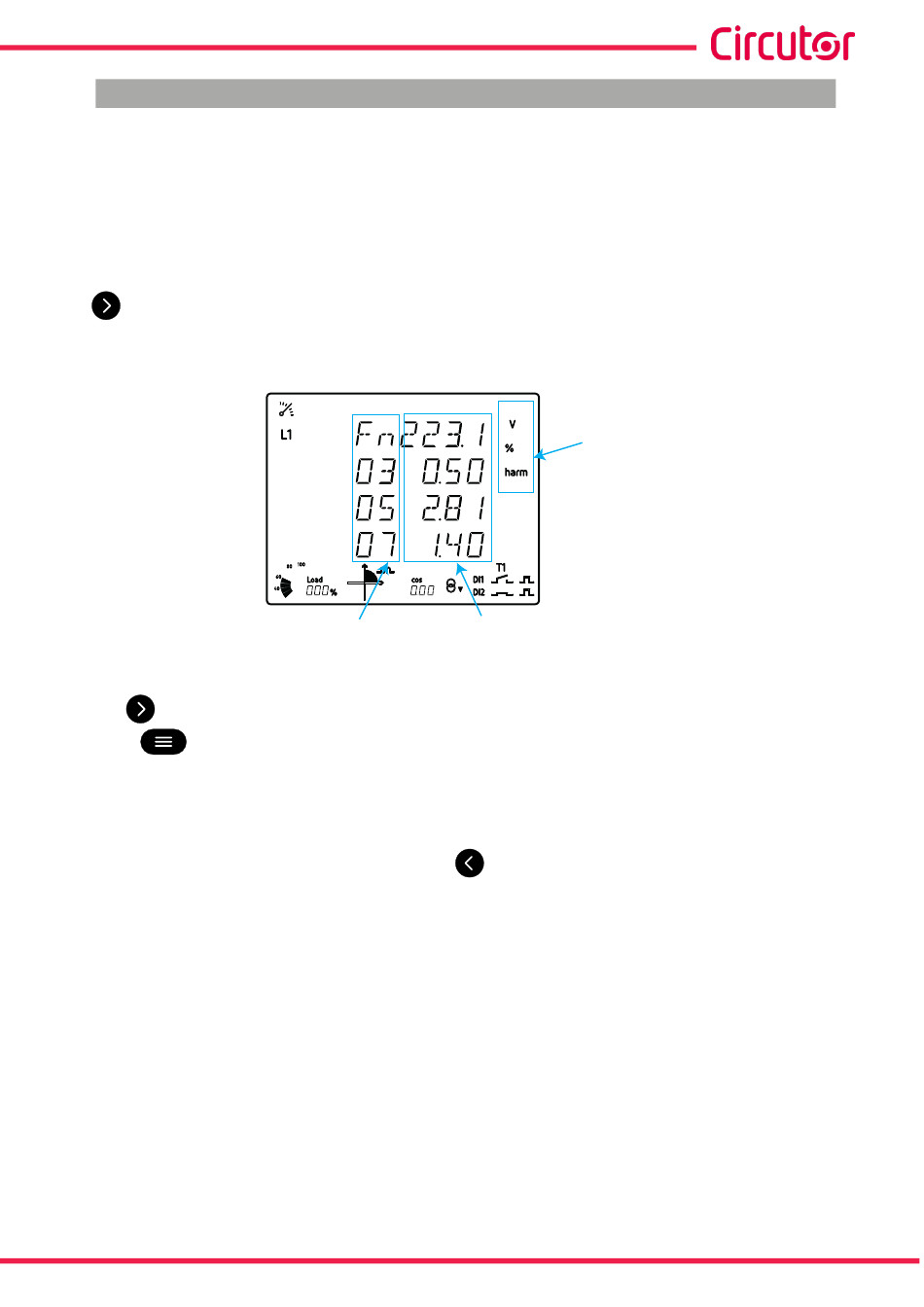

Harmonics are displayed as shown on
.
Figure 39
Harmonic type
Harmonic value
Harmonic order
Figure 39: CVM-C11 harmonics screen�
The key
jumps to the next harmonic screen.
Press key
to display the different types of harmonics:
• Voltage harmonics L1- L2 - L3
• Current harmonics L1- L2 -L3
To exit the harmonic display screens, press the key.
.
Instruction Manual
55
