3�3�- CVM-C11-FLEX-IN-485-ICT2: ROGOWSKI SENSORS
The CVM-C11-FLEX-IN-485-ICT2 model measures currents using flexible sensors, based on the Ro-
gowski coil principle.
The flexibility of the sensor allows it to measure an alternating current irrespective of the position of
the conductor.
CIRCUTOR has 1 Rogowski sensor model that can be used with the CVM-C11-FLEX-IN-485-ICT2: MFC-
FLEX.
Note: For more information, consult the corresponding sensor guide.
10

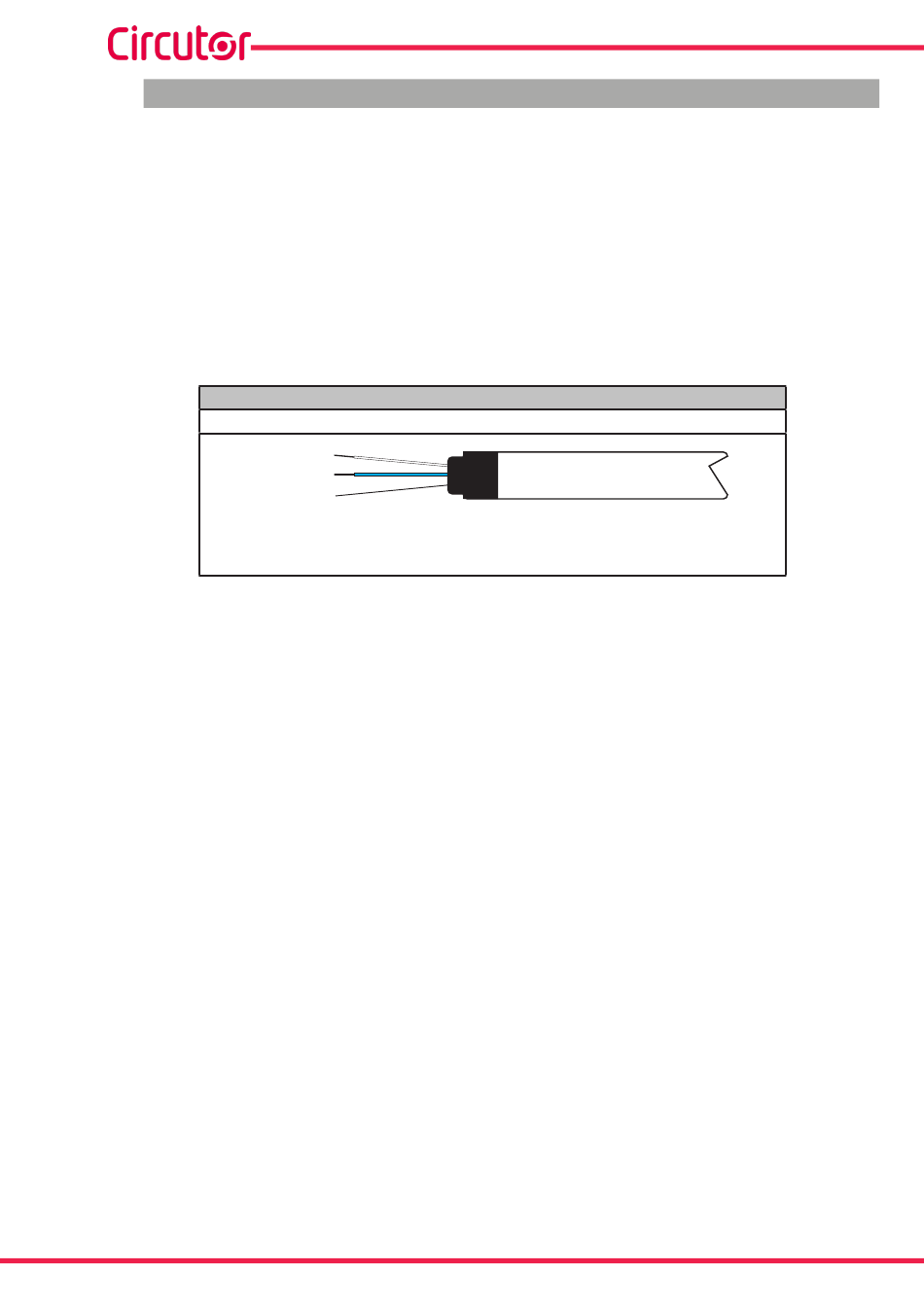

Table 3: Probe cable terminal connections�
OUT+
OUT-
Blindaje /Shield
White (OUT+): Measuring channel (L1, L2, L3, N)
Blue (OUT-): Common (C)
Grey: Shield (SHLD)
Terminals
MFC-FLEX
CVM-C11
