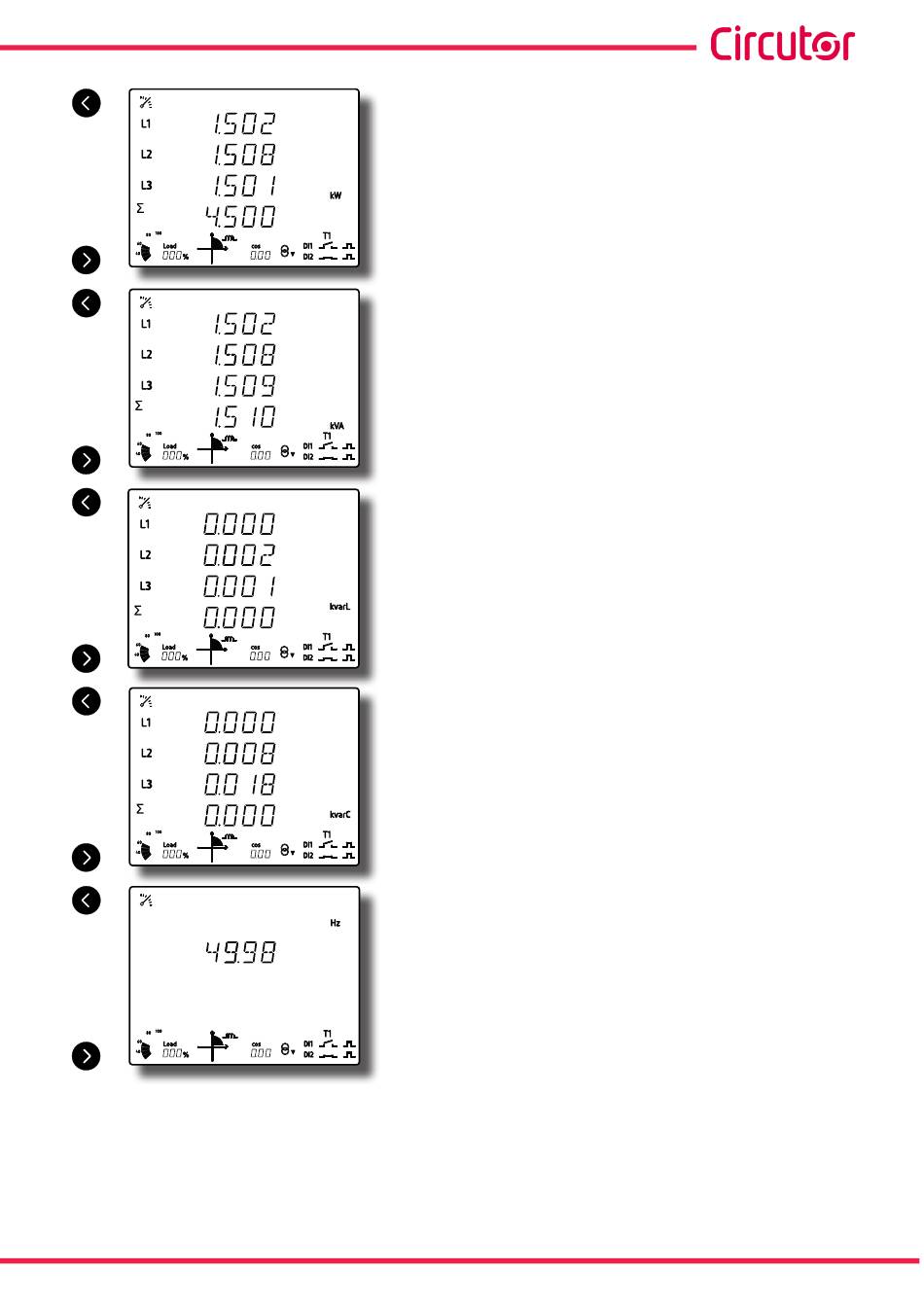

Active Power L1
(3)
Active Power L2
(3)
Active Power L3
(3)
Active Power Total, ∑
The generation values are not measured when the 2 quadrant
option is selected.
Not available for installation types
(3)
Apparent Power L1
(4)
Apparent Power L2
(4)
Apparent Power L3
(4)
Apparent Power Total, ∑
The generation values are not measured when the 2 quadrant
option is selected.
Not available for installation types
(4)
Inductive Reactive Power L1
Inductive Reactive Power L2
Inductive Reactive Power L3
Inductive Reactive Power Total, ∑
Not available for installation types
(5)
Capacitive Reactive Power L1
Capacitive Reactive Power L2
Capacitive Reactive Power L3
Capacitive Reactive Power Total, ∑
Not available for installation types
(6)
Frequency
3-3IT.
3-3IT.
(5)
(5)
(5)
3-3IT.
(6)
(6)
(6)
3-3IT.
