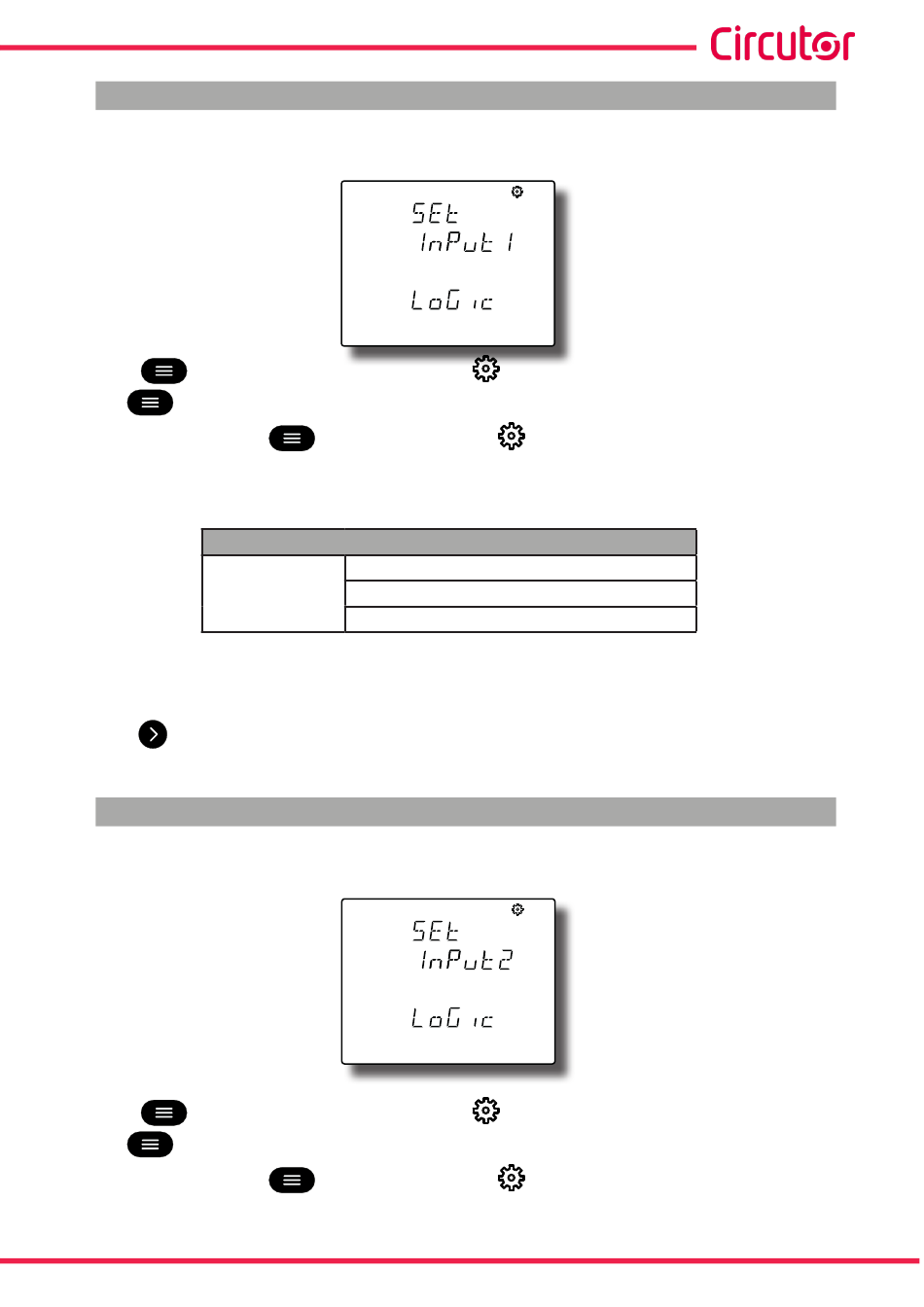

6�29�- OPERATING MODE OF DIGITAL INPUT 1
The function of digital input 1 is selected on this screen.
Press key for 3 seconds to edit the value. The
The key jumps between the possible options.
To validate the data, press
Configuration values
Possible values
Note: When generating the synchronism pulse of the Maximum Demand, the device restarts the
calculation of the maximum demand.
Press key to access the next programming step.
6�30�- OPERATING MODE OF DIGITAL INPUT 2
The function of digital input 2 is selected on this screen.
Press key for 3 seconds to edit the value. The
The key jumps between the possible options.
To validate the data, press
Instruction Manual
for 3 seconds and the
Table 59:Configuration values: Operating mode of digital input 1�
Operating mode of digital input 1
LoGic Logic input
tAriFF Tariff selection.
PuLSe Maximum Demand Synchronism Pulse
for 3 seconds and the
icon appears at the top of the screen.
icon will disappear from the display.
icon appears at the top of the screen.
icon will disappear from the display.
